Remote Keyless Entry Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the Junction Block (JB).
  3. Remove Remote Keyless Entry module from Body Control Module.

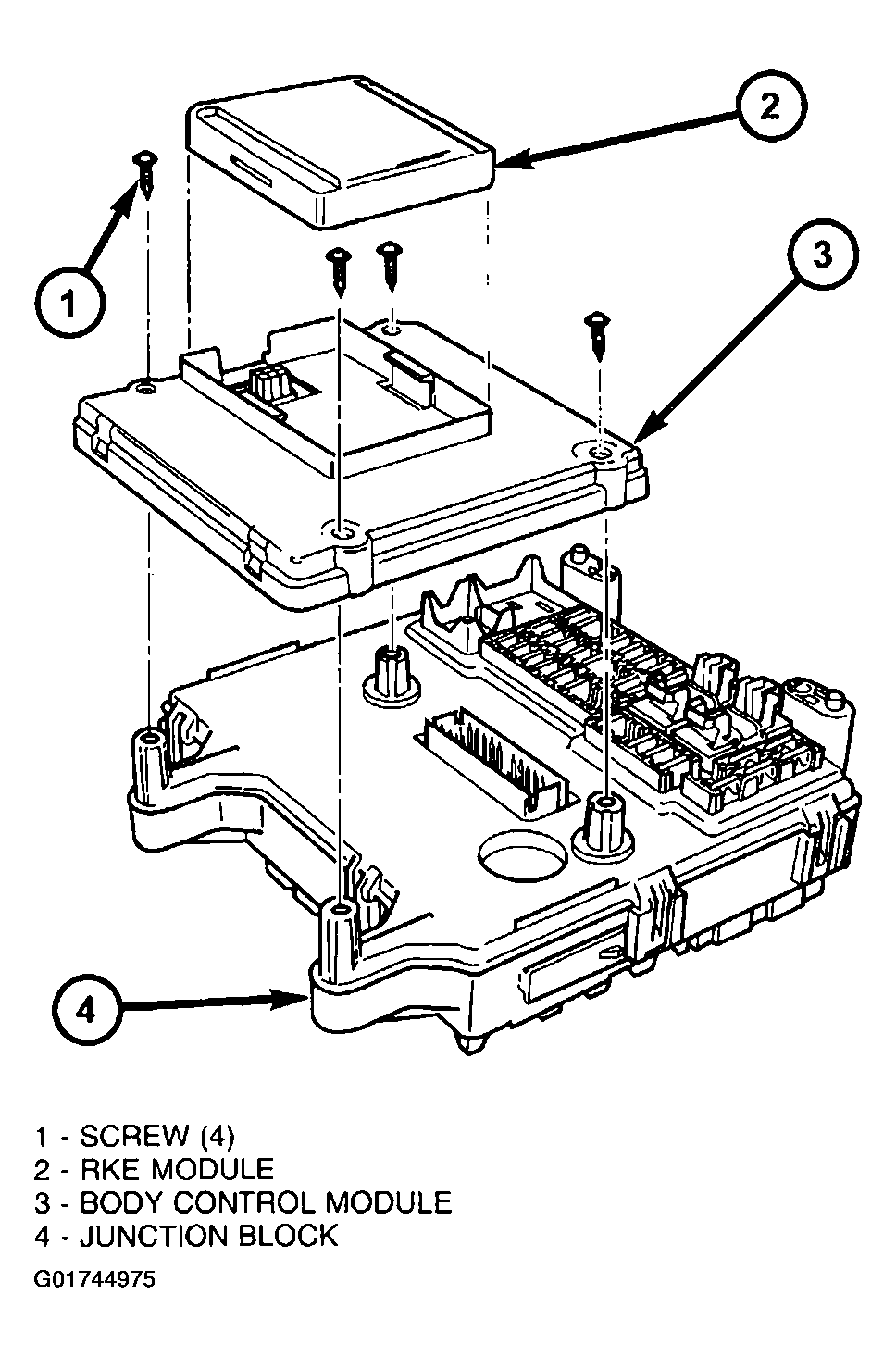

    Fig 1: Removing & Installing RKE Module
    G01744975Courtesy of DAIMLERCHRYSLER CORP.
