Controller Anti-Lock Brake: Installation

NOTE: If the CAB is being replaced with a new CAB is must be reprogrammed with the use of a DRB III.

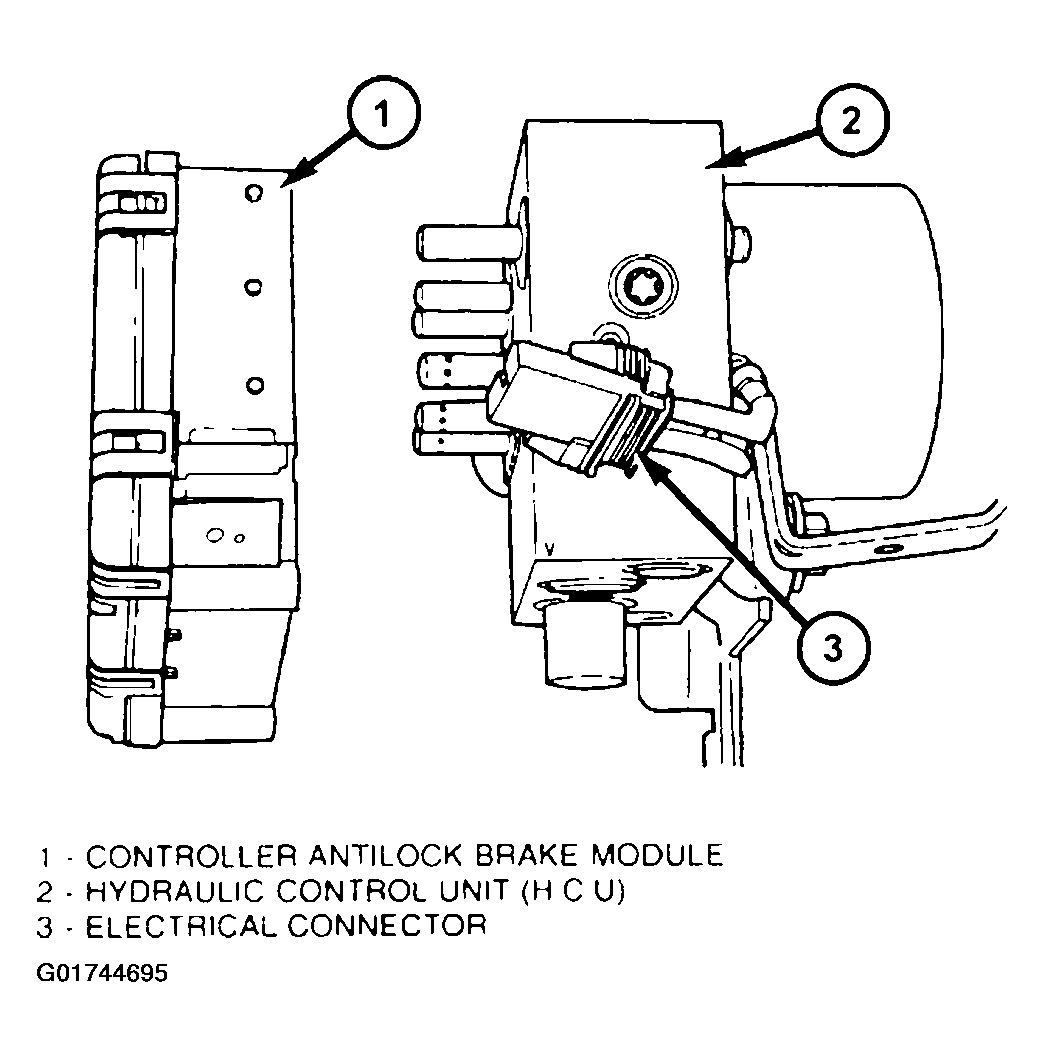

Install CAB to the HCU. See Figure .
Install mounting bolts. Tighten to 2 N.m (16 in. lbs.).
Install the pump electrical connector to the CAB. See Figure .
Install the wiring harness connector to the CAB and push down on the release to secure the connector.
Install negative battery cable to the battery.
