Connector PINOUTS
›
Engine Control Module C1 (Diesel) - 81 Way
Engine Control Module C1 (Diesel) - 81 Way

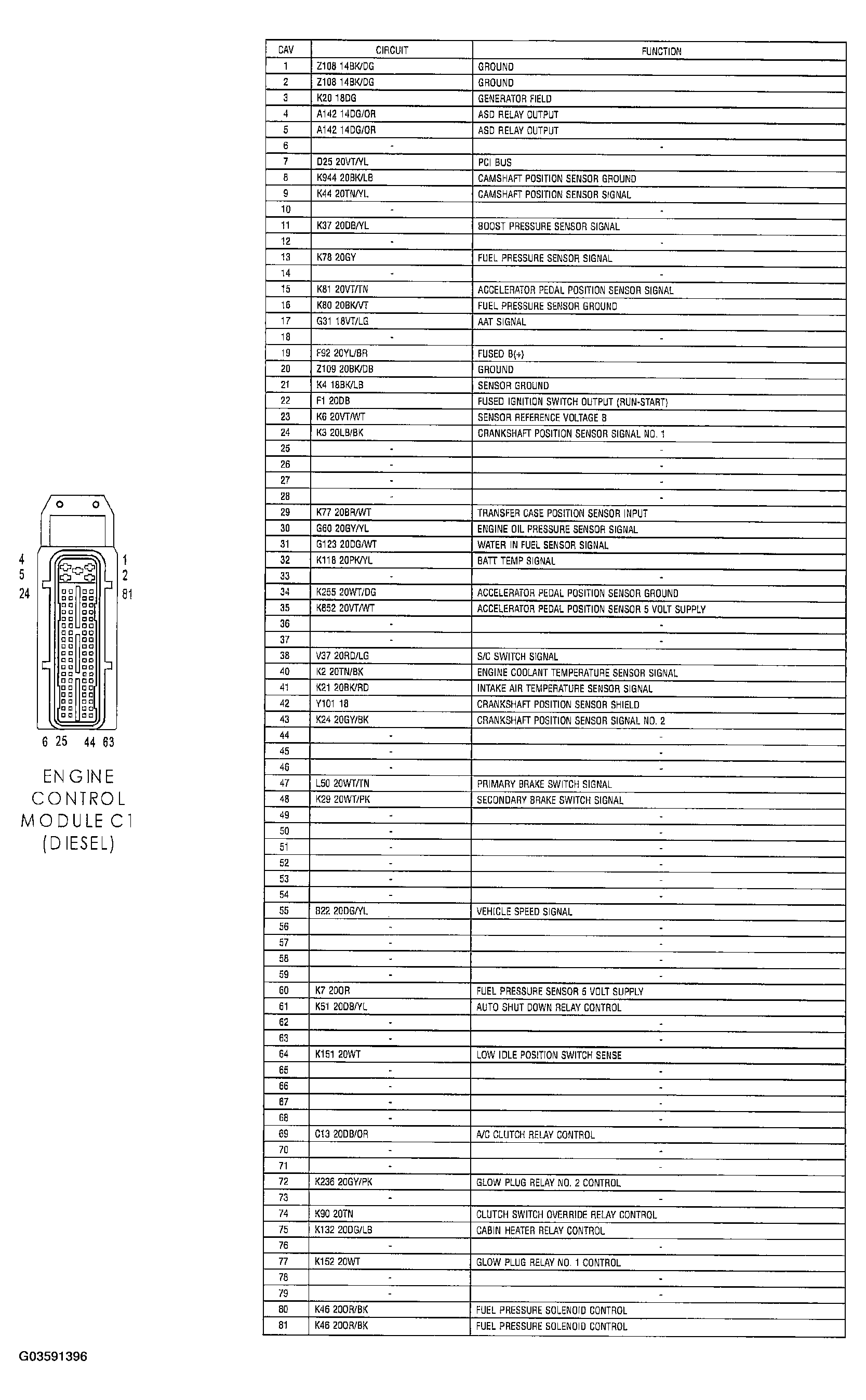

Fig 1: Identifying Engine Control Module C1 (Diesel) - 81 Way Connector Pinout
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
