Body & Frame
›
Body, Cab Control Systems
›
Body Diagnostic Procedures
›
Connector PINOUTS
›
Junction Block Body Control Module-JB - 26 Way
Junction Block Body Control Module-JB - 26 Way

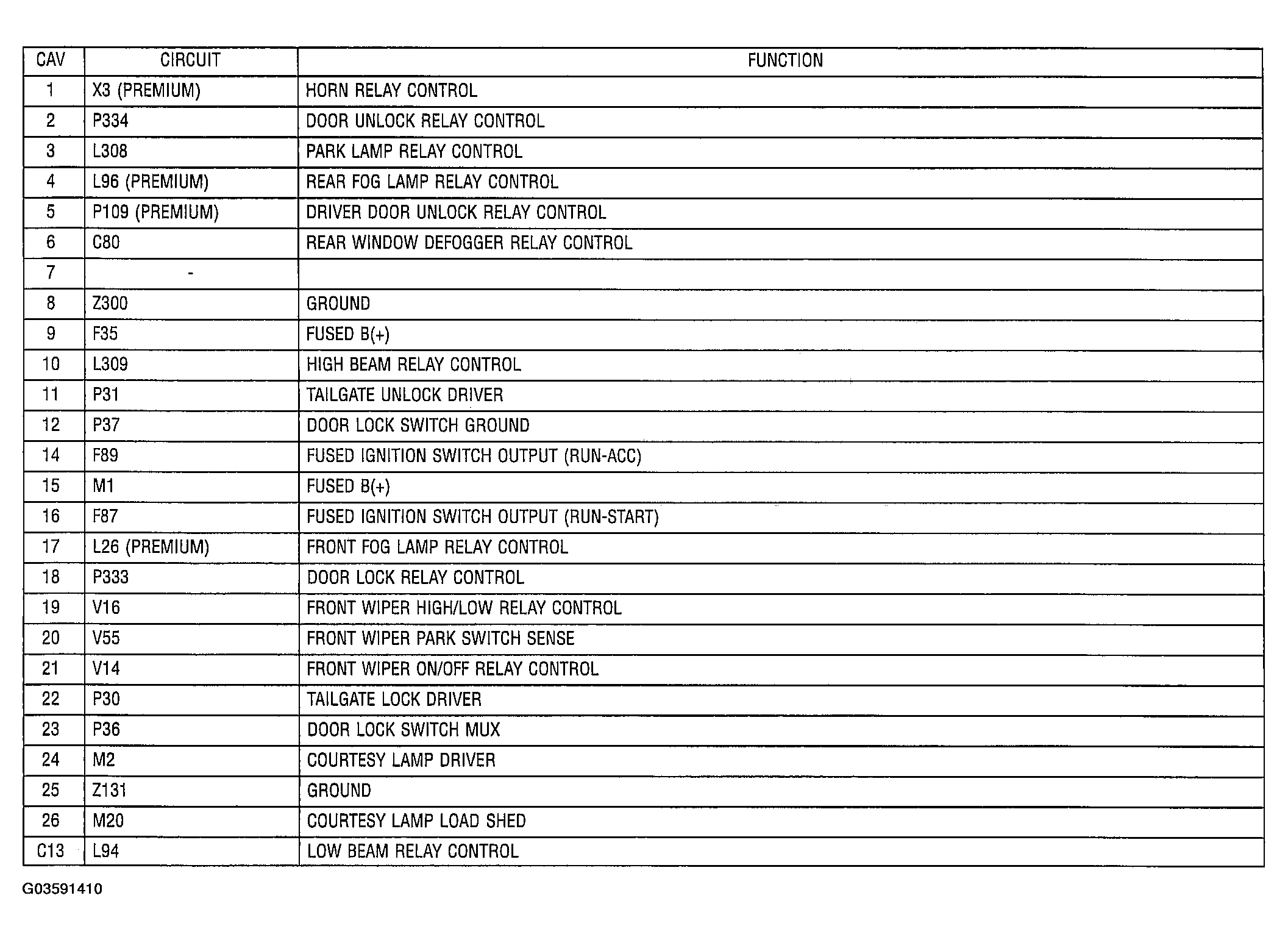

Fig 1: Identifying Junction Block Body Control Module-JB - 26 Way Connector Pinout
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
