Occupant Classification Module -18 Way
Occupant Classification Module -18 Way

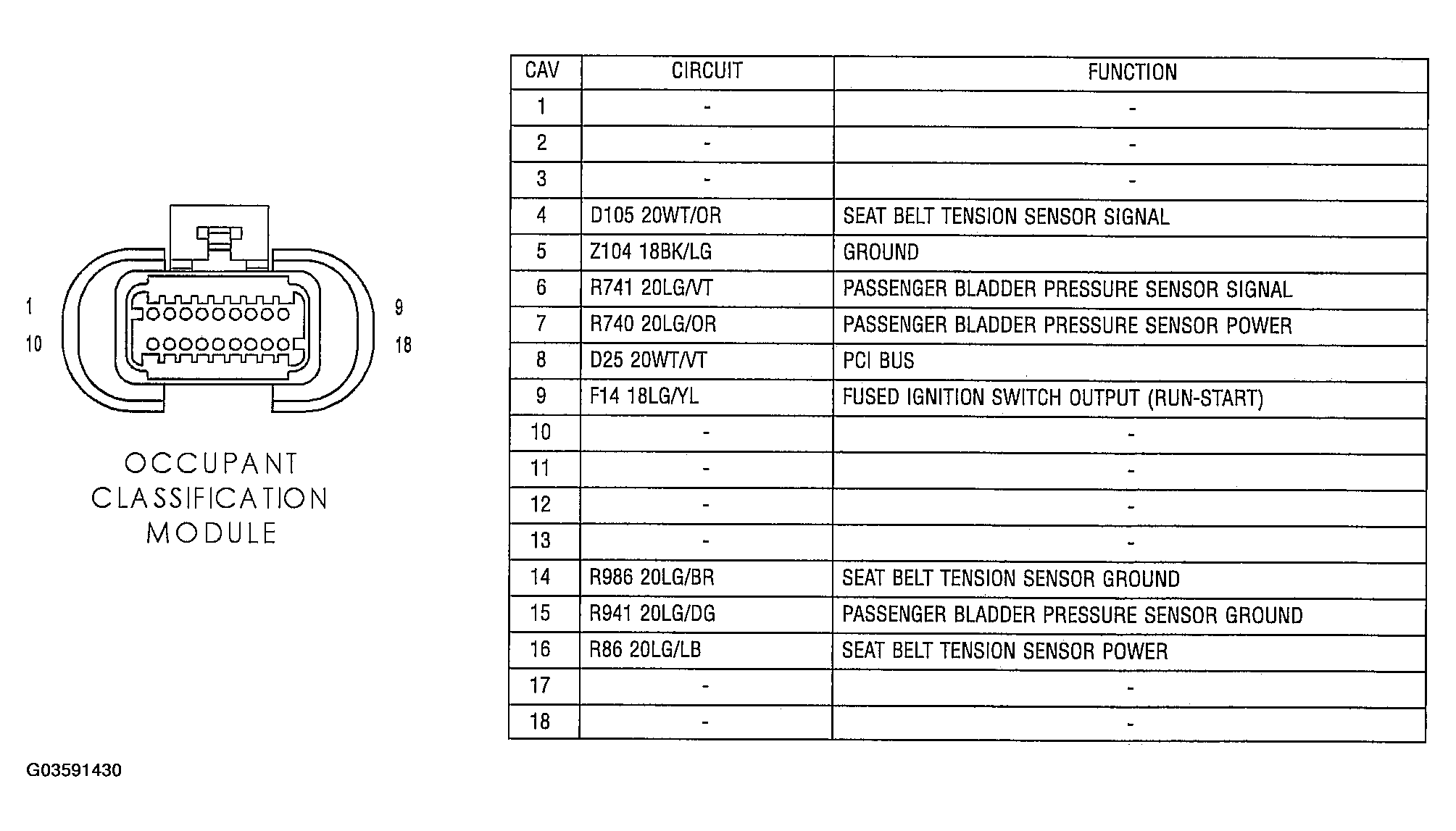

Fig 1: Identifying Occupant Classification Module -18 Way Connector Pinout
Courtesy of DAIMLERCHRYSLER CORP.
