Inter-Module And DRB Communication

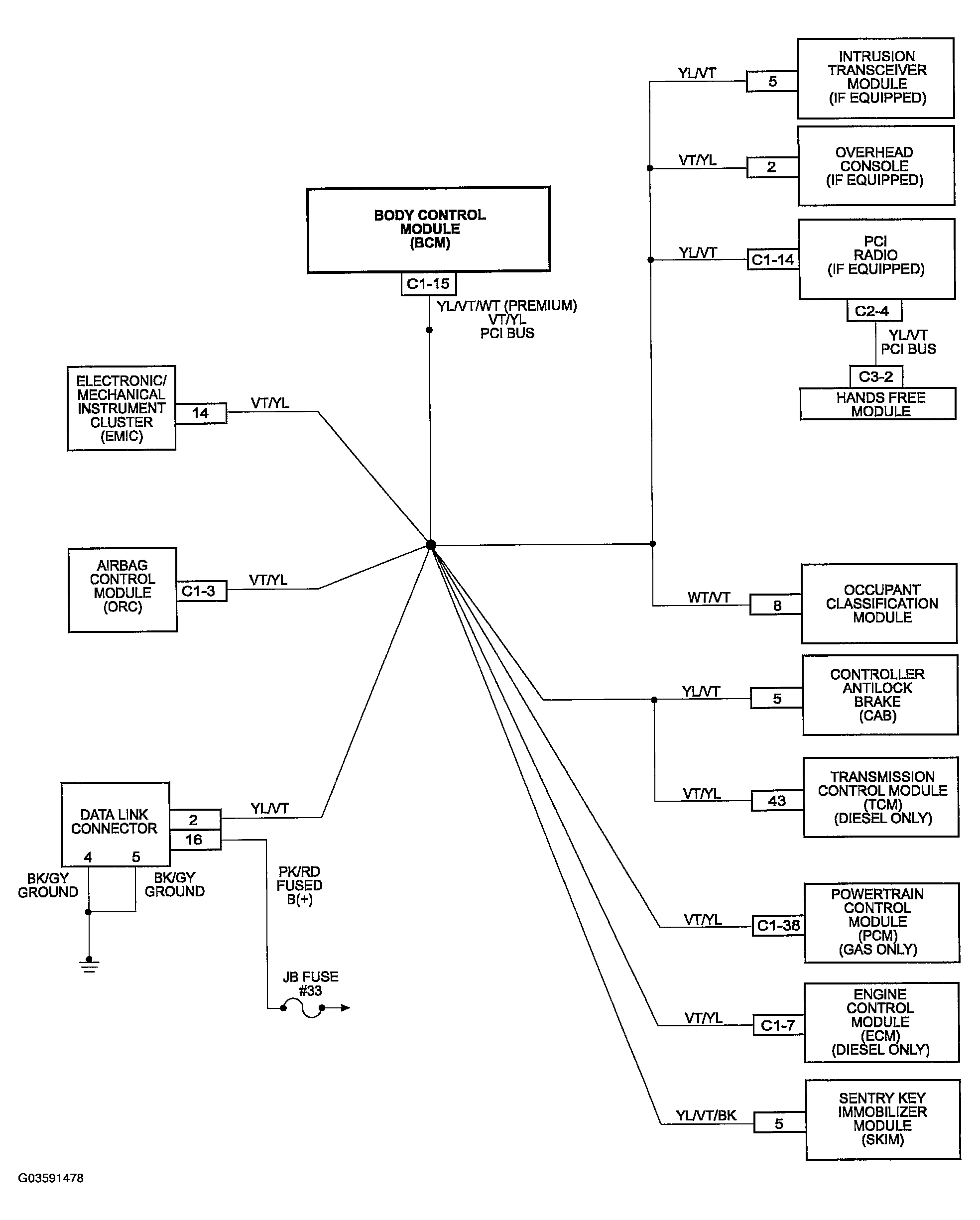

Fig 1: Inter-Module And DRB Communication Schematic Diagrams
G03591478Courtesy of DAIMLERCHRYSLER CORP.
