Standard Procedure - Module Lamp Replacement
Standard Procedure - Module Lamp Replacement
Remove the overhead console.
Using a flat blade screwdriver twist out socket/lamp.

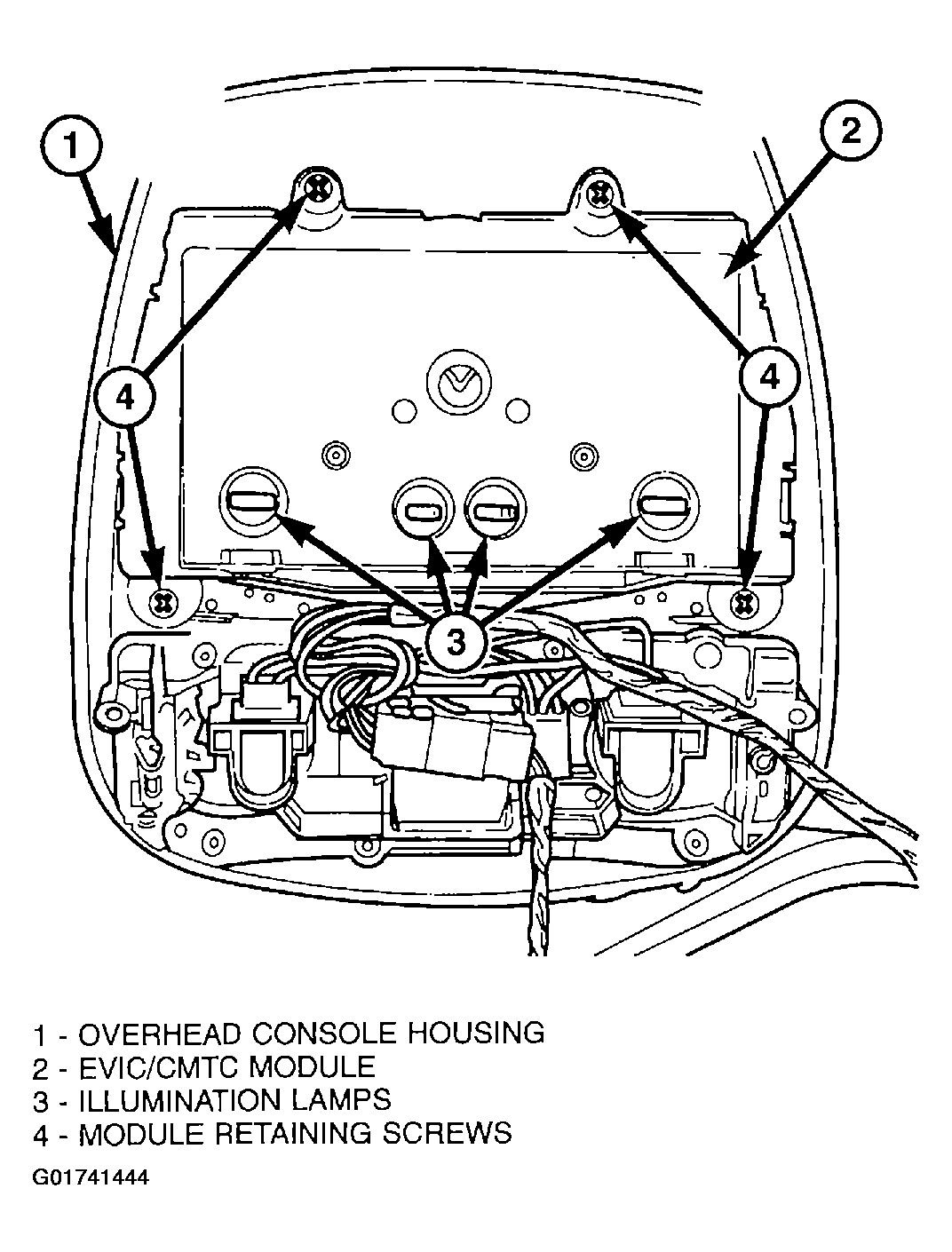

Fig 1: Removing & Installing Electronic Vehicle Information Center
Courtesy of DAIMLERCHRYSLER CORP.
Replace lamp(s) as necessary.
