Starter Relay: Installation

  1. Refer to Power Distribution Center (PDC) cover for starter relay location.
  2. Install relay to PDC.
  3. Install cover to PDC.

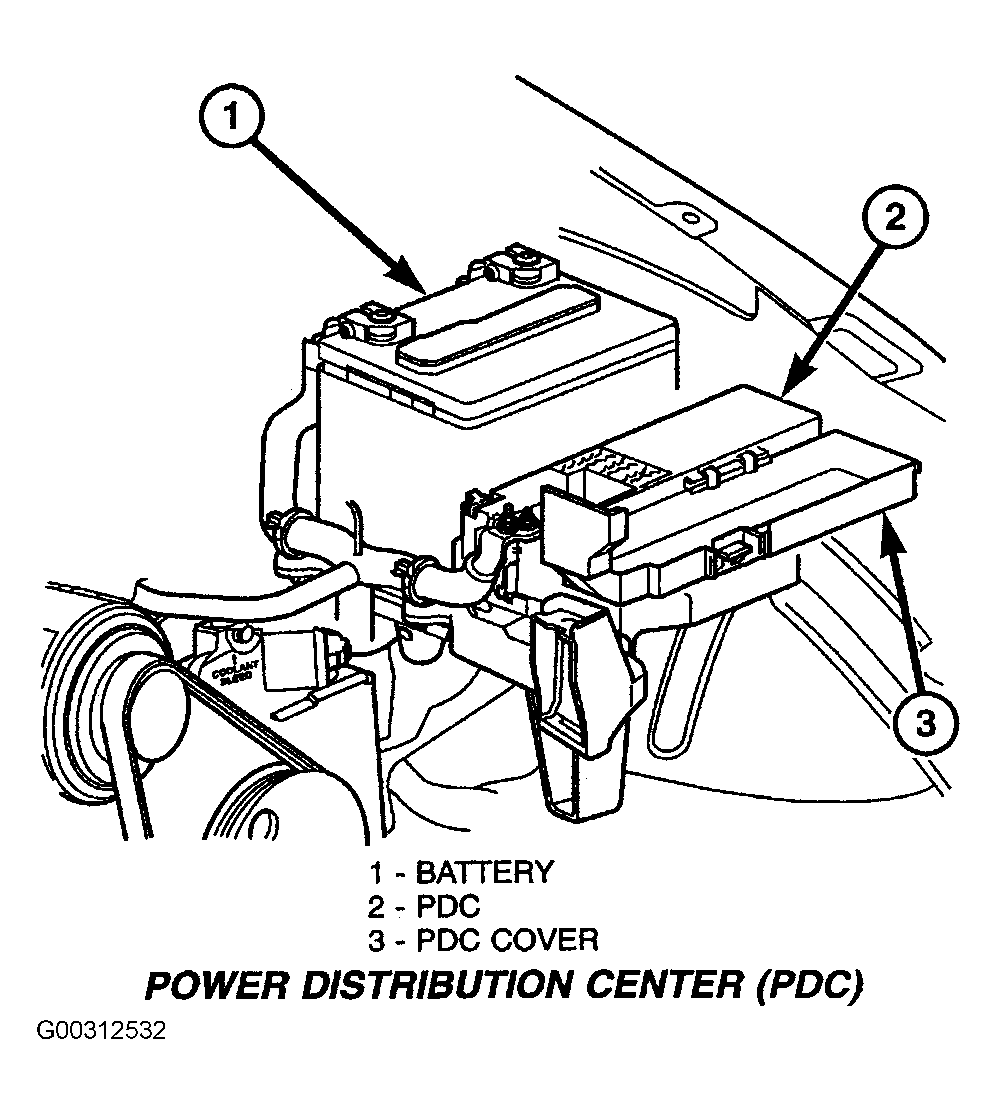

Fig 1: Power Distribution Center (PDC)
G00312532Courtesy of CHRYSLER CORP.
