Junction Block Body Control Module-JB - 26 Way Connector End View

Fig 1: Junction Block Body Control Module Connector End View (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

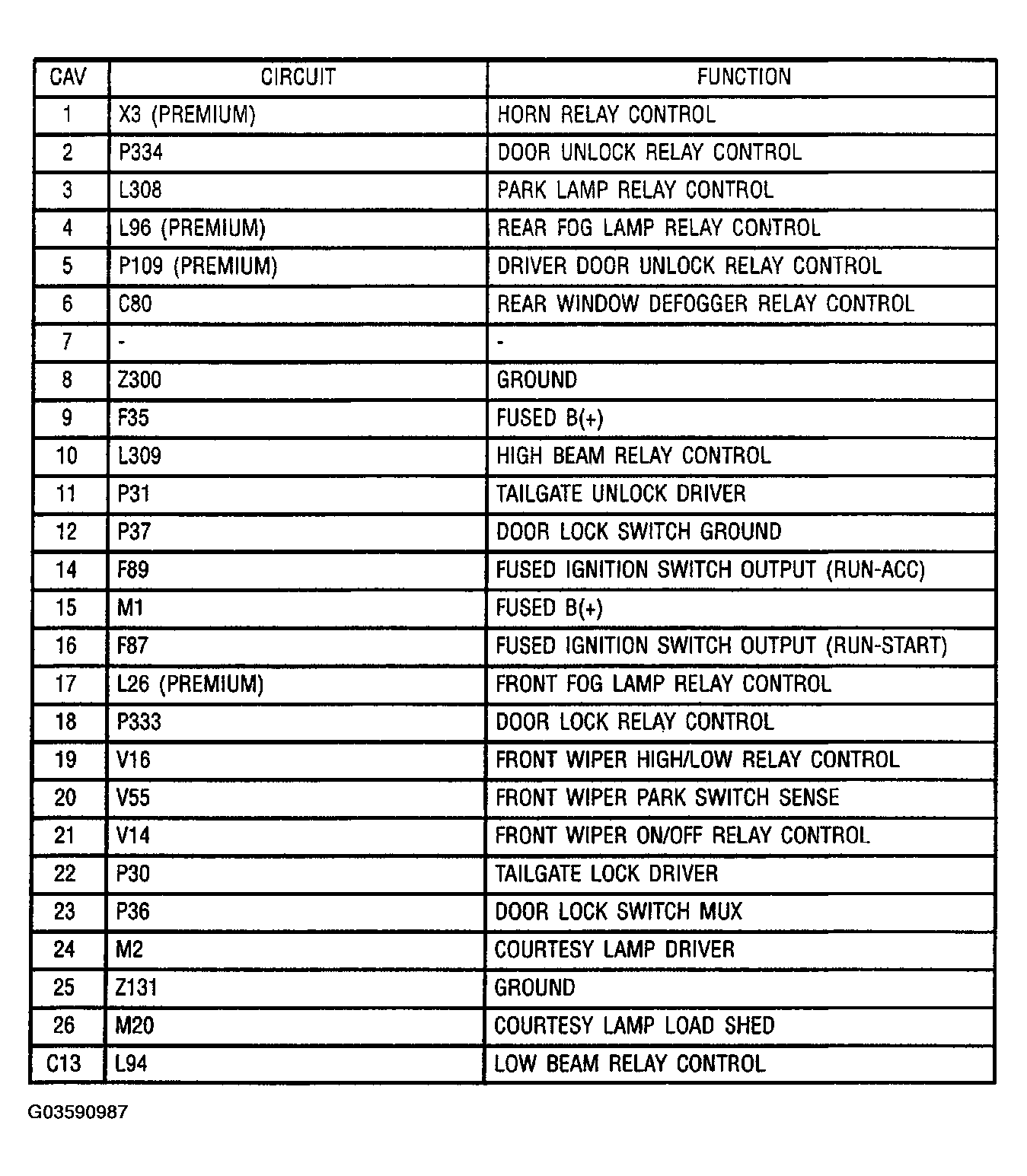

Fig 2: Junction Block Body Control Module Connector End View (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
