Front Mount: Removal

  1. Disconnect the negative cable from the battery.
    CAUTION: Remove the fan blade, fan clutch and fan shroud before raising engine. Failure to do so may cause damage to the fan blade, fan clutch and fan shroud.
  2. Remove the fan blade, fan clutch and fan shroud. See COOLING SYSTEM (MECHANICAL) article.
  3. Remove the engine oil filter.
  4. Support the engine with a suitable jack and a block of wood across the full width of the engine oil pan.
  5. Remove the four (4) cylinder block-to-insulator mount bolts and the nut from the engine insulator mount through bolt.
  6. Using the jack, raise the engine high enough to remove the engine insulator mount through bolt and the insulator mount.

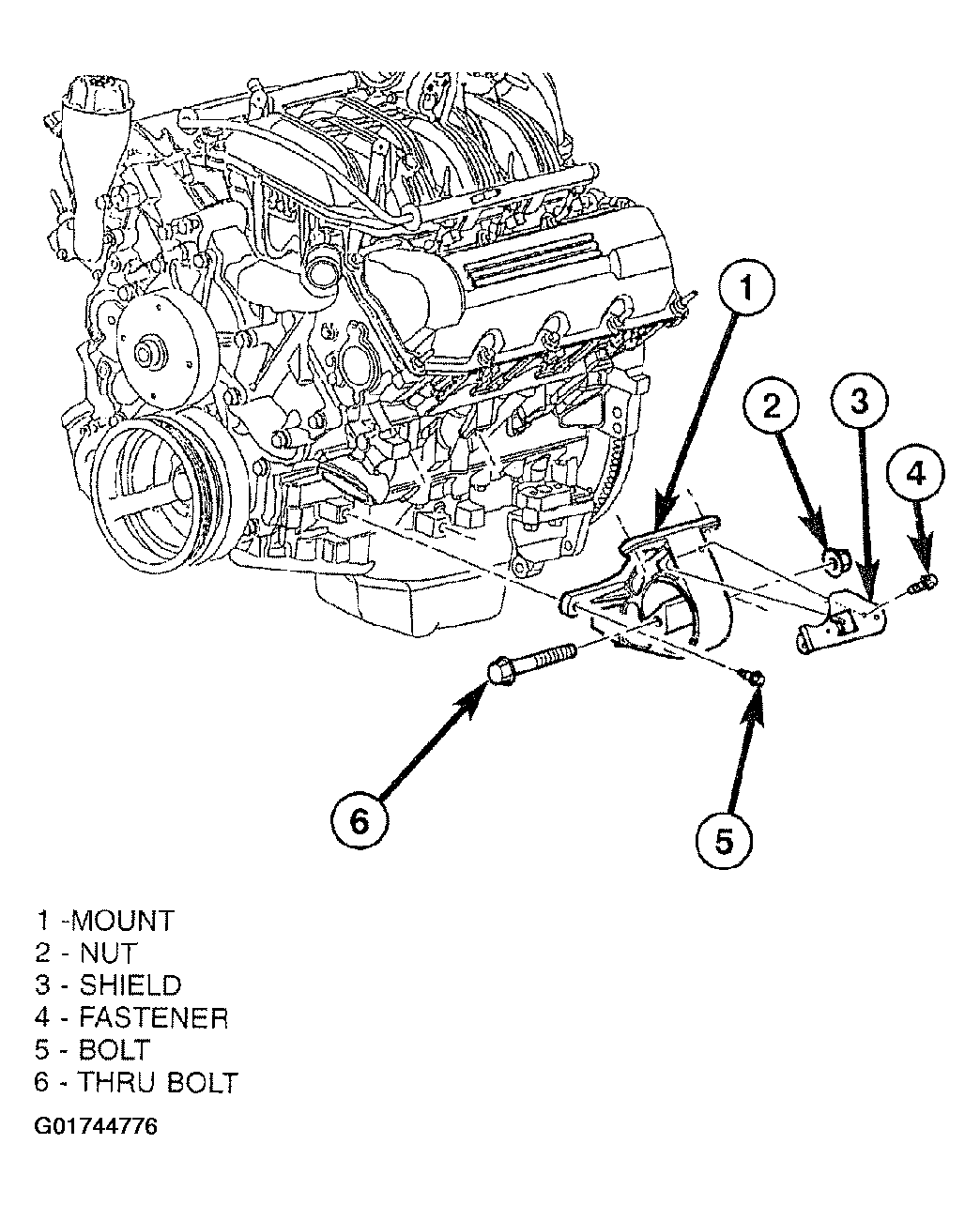

    Fig 1: Identifying Engine Insulator Mount 3.7 Left
    G01744776Courtesy of DAIMLERCHRYSLER CORP.

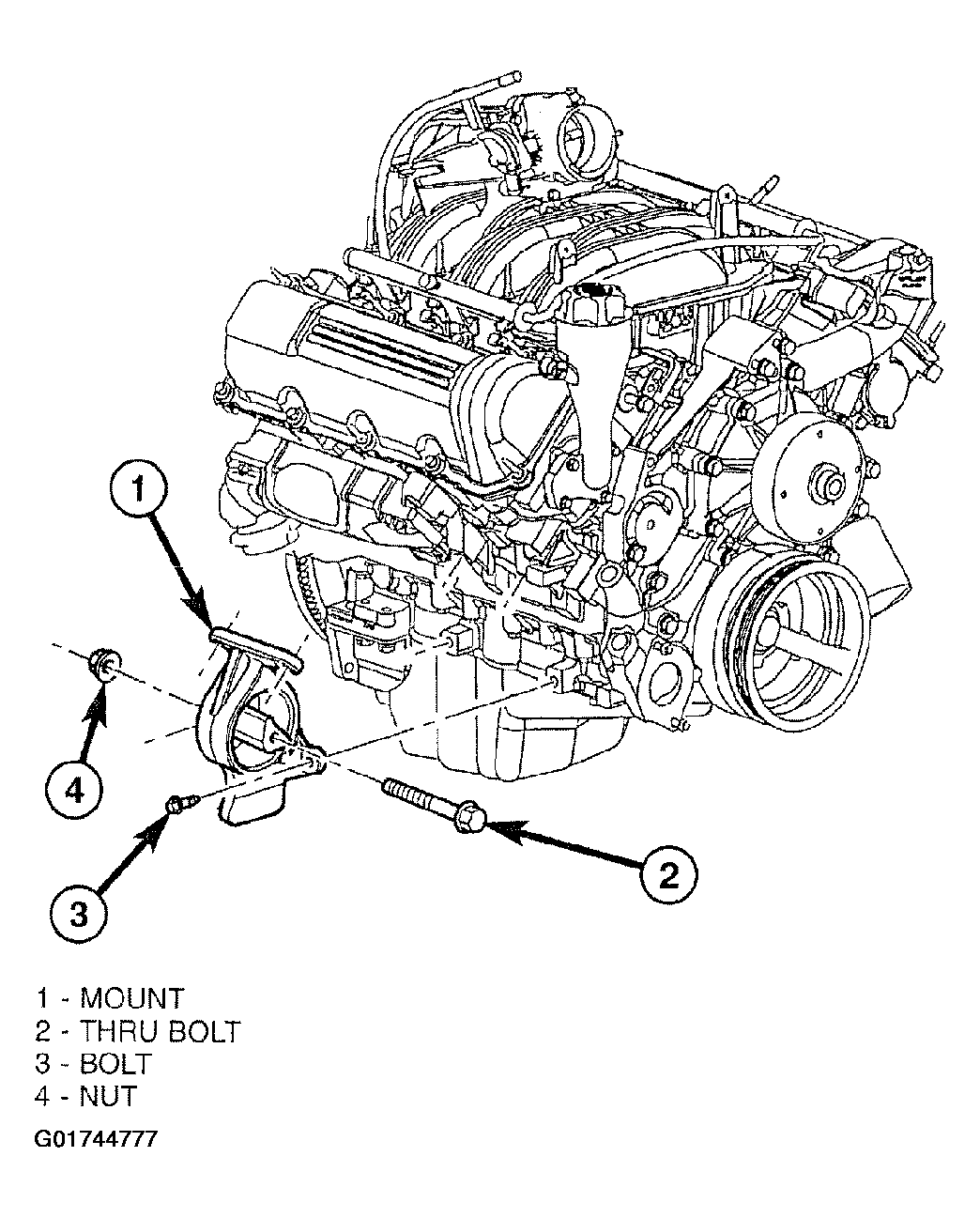

    Fig 2: Identifying Engine Insulator Mount 3.7 Right
    G01744777Courtesy of DAIMLERCHRYSLER CORP.
