Powertrain Verification Test VER-5

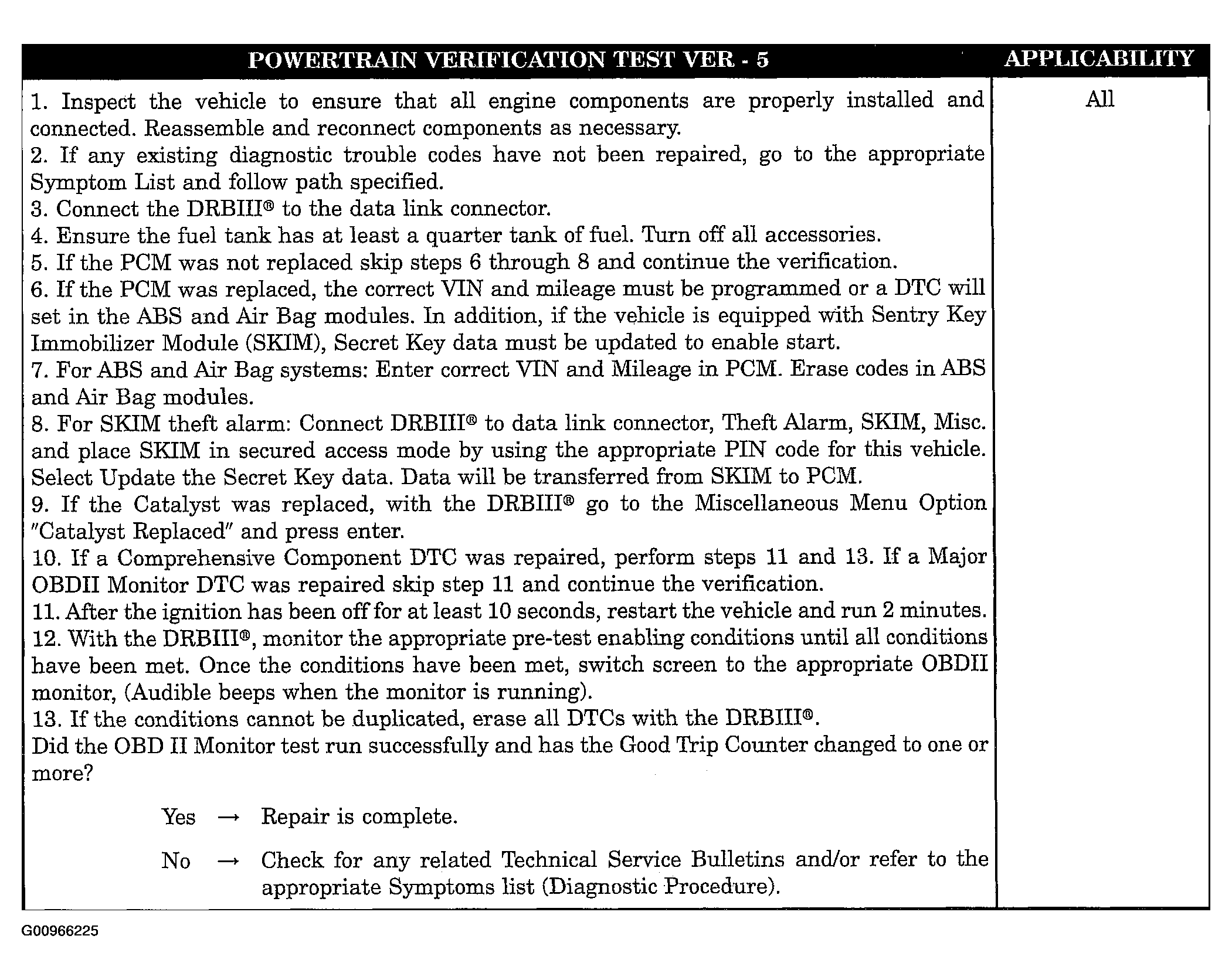

Fig 1: Powertrain Verification Test VER-5
Courtesy of DAIMLERCHRYSLER CORP.

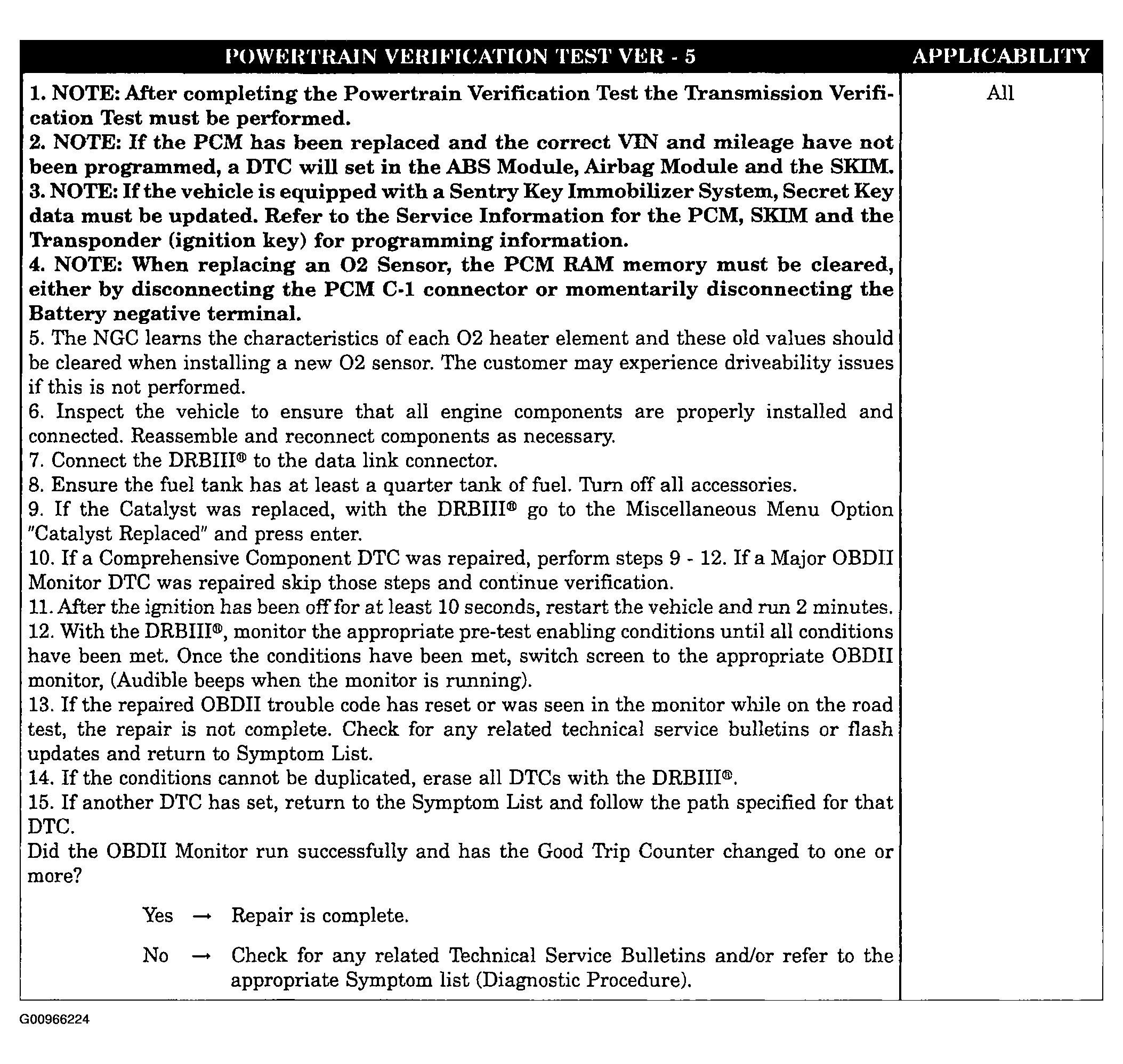

Fig 1: Powertrain Verification Test VER-5
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
