Powertrain Verifications Test VER-1

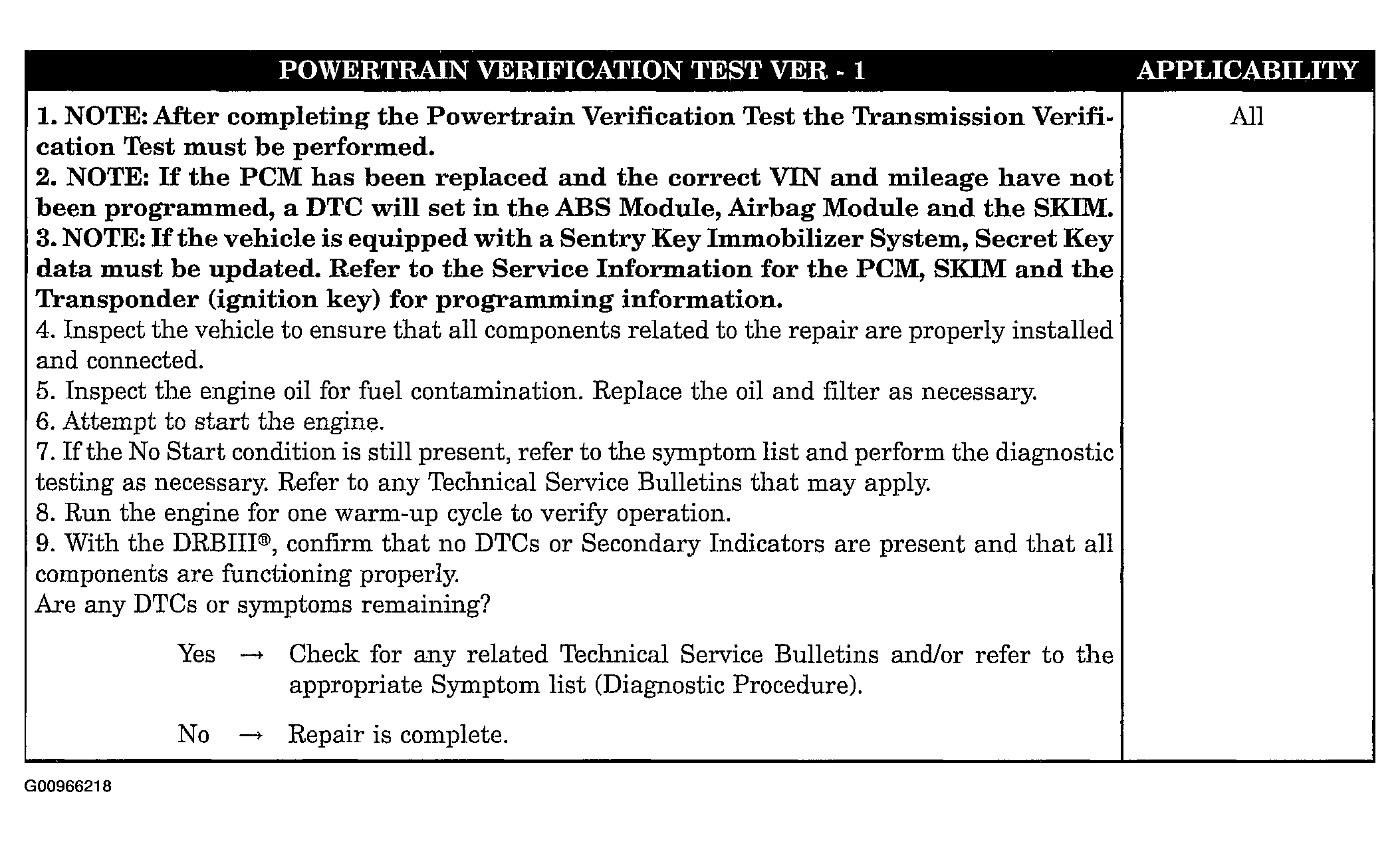

Fig 1: Powertrain Verification Test VER-1
G00966218Courtesy of DAIMLERCHRYSLER CORP.

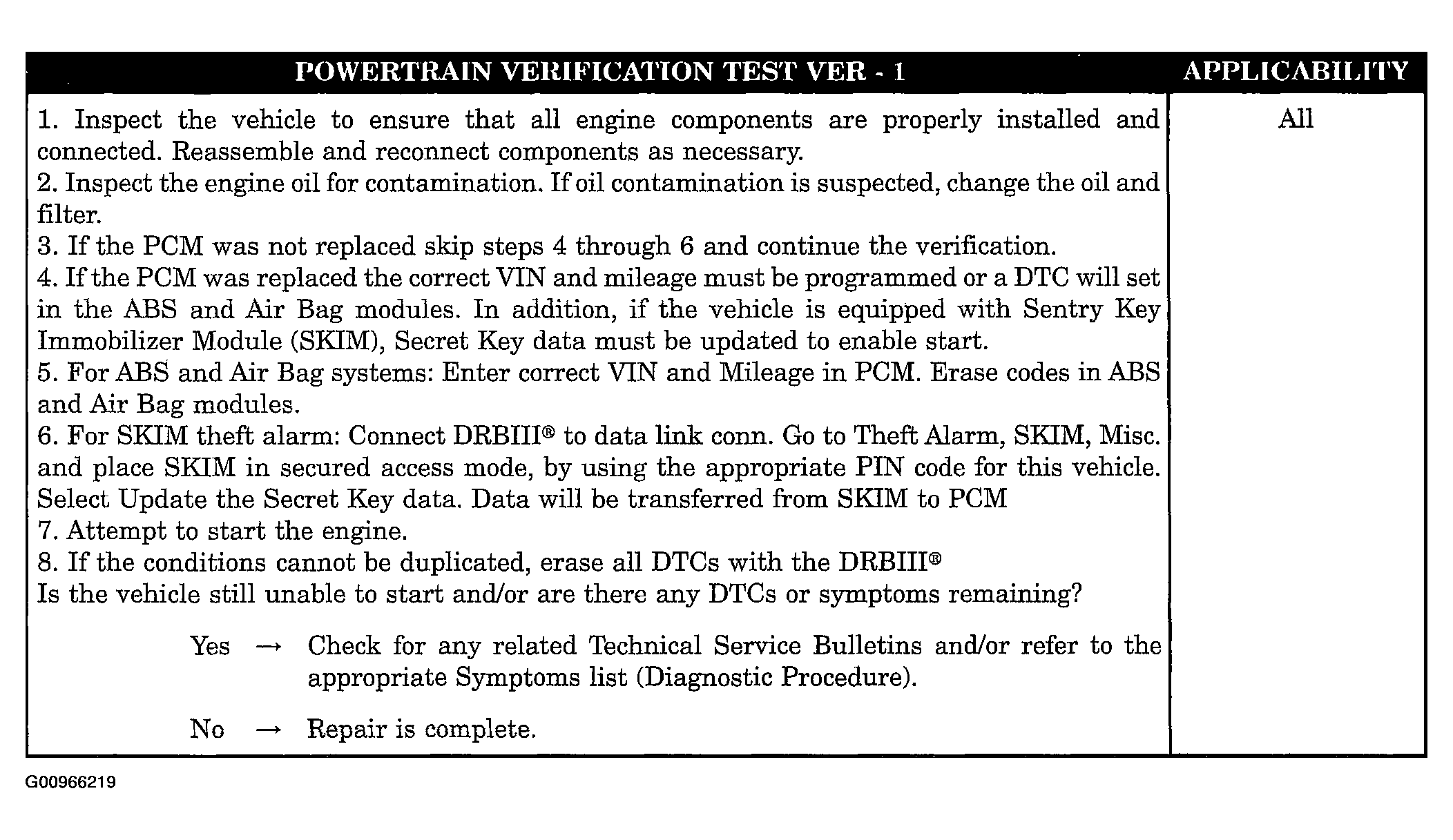

Fig 1: Powertrain Verification Test VER-1
G00966219Courtesy of DAIMLERCHRYSLER CORP.
