Coolant Level Sensor: Installation

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the coolant level sensor fully seats into the rubber grommet. Failure to do so may cause inaccurate coolant level readings and leaks.

Position sensor into the coolant recovery pressure container (Fig 1 ).
Connect the coolant level sensor electrical connector (Fig 2 ).
Close hood.

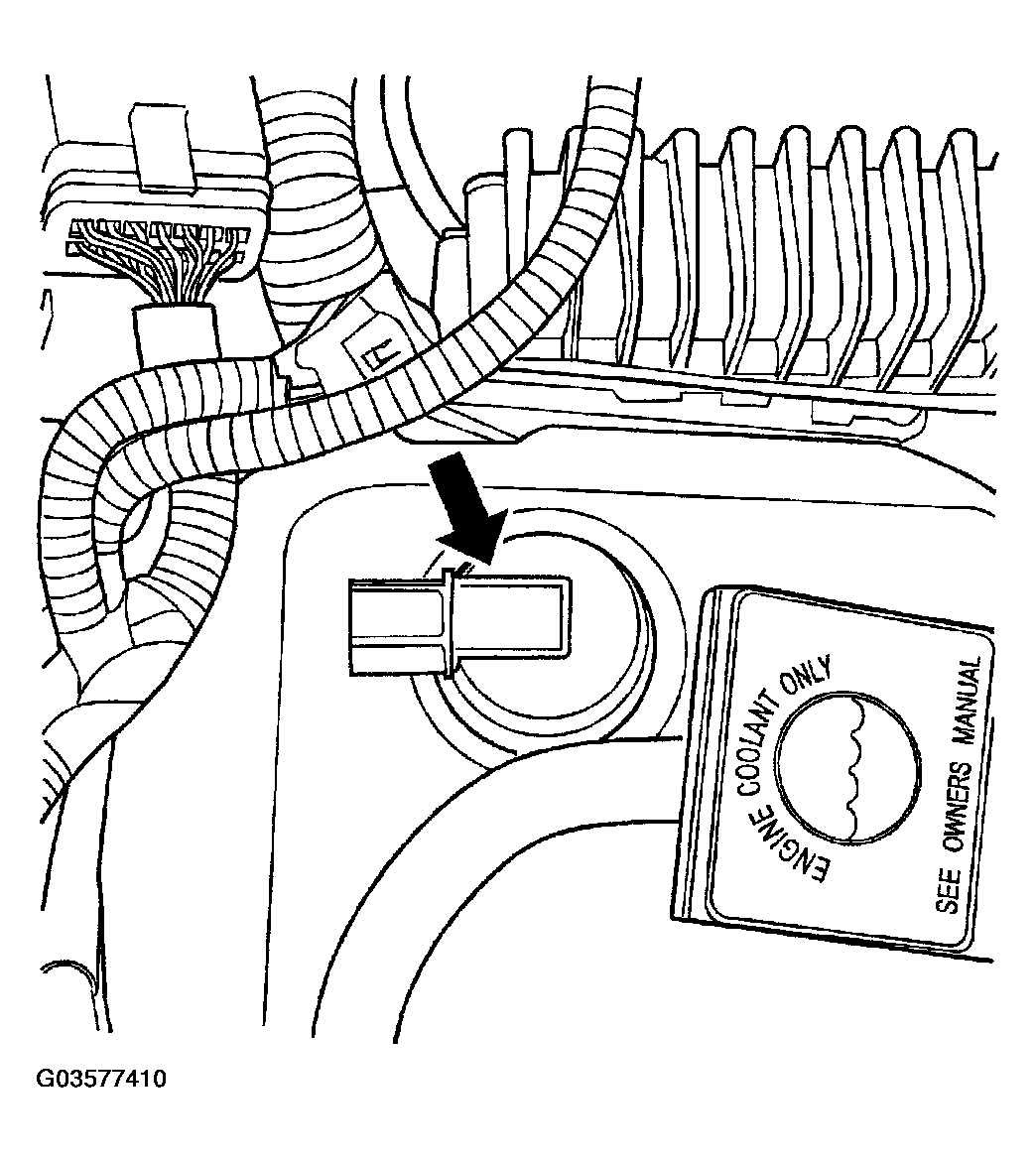

Fig 1: Coolant Level Sensor Electrical Connector
Courtesy of DAIMLERCHRYSLER CORP.

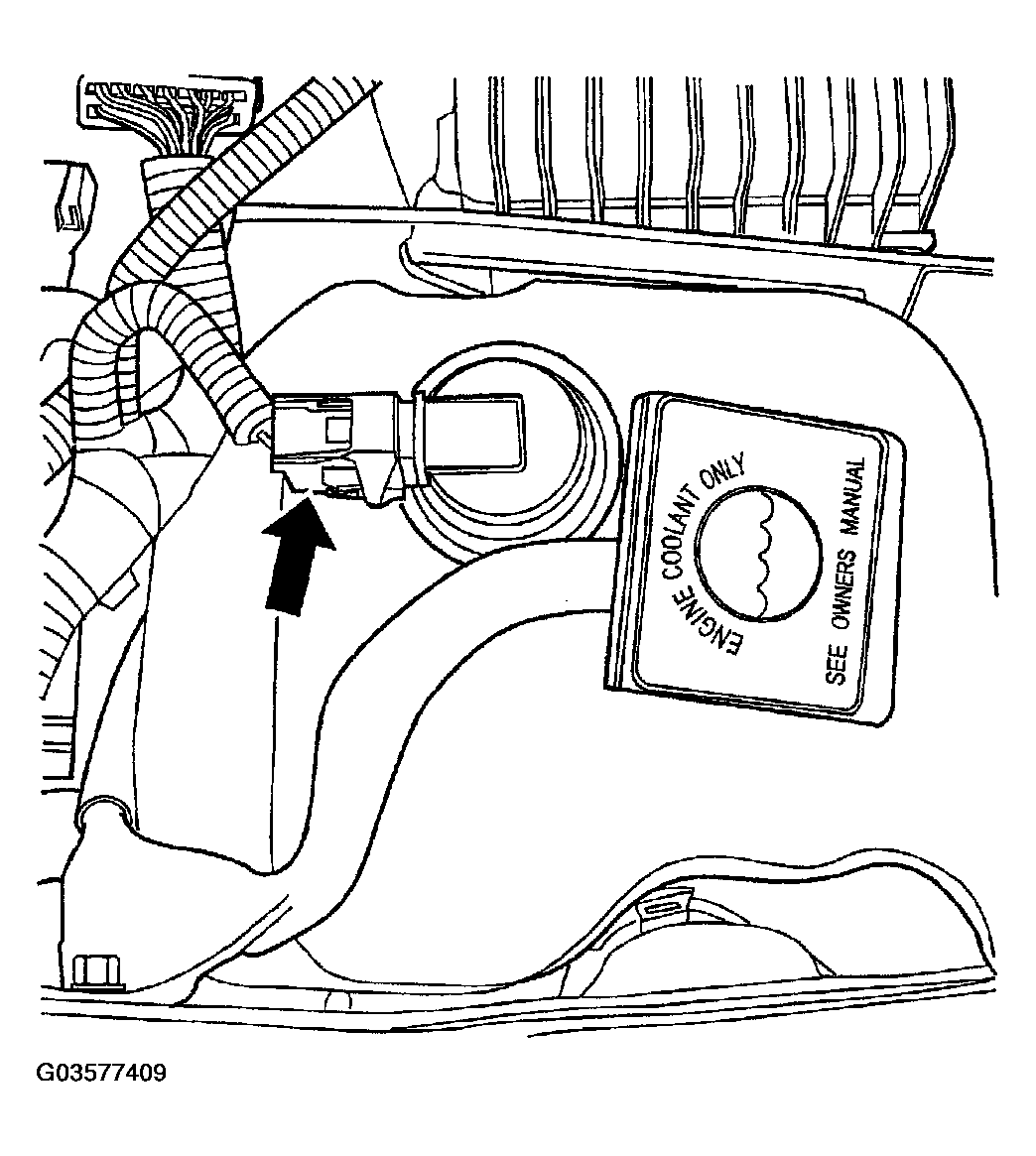

Fig 2: Coolant Level Sensor Removal/Installation
Courtesy of DAIMLERCHRYSLER CORP.
