Latch/Guide Plate: Removal

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Remove the liftgate insulator pad. (Refer to LIFTGATE INSULATOR PAD )
Remove the three bolts attaching the latch and guide plate to the liftgate. (Fig 1 )

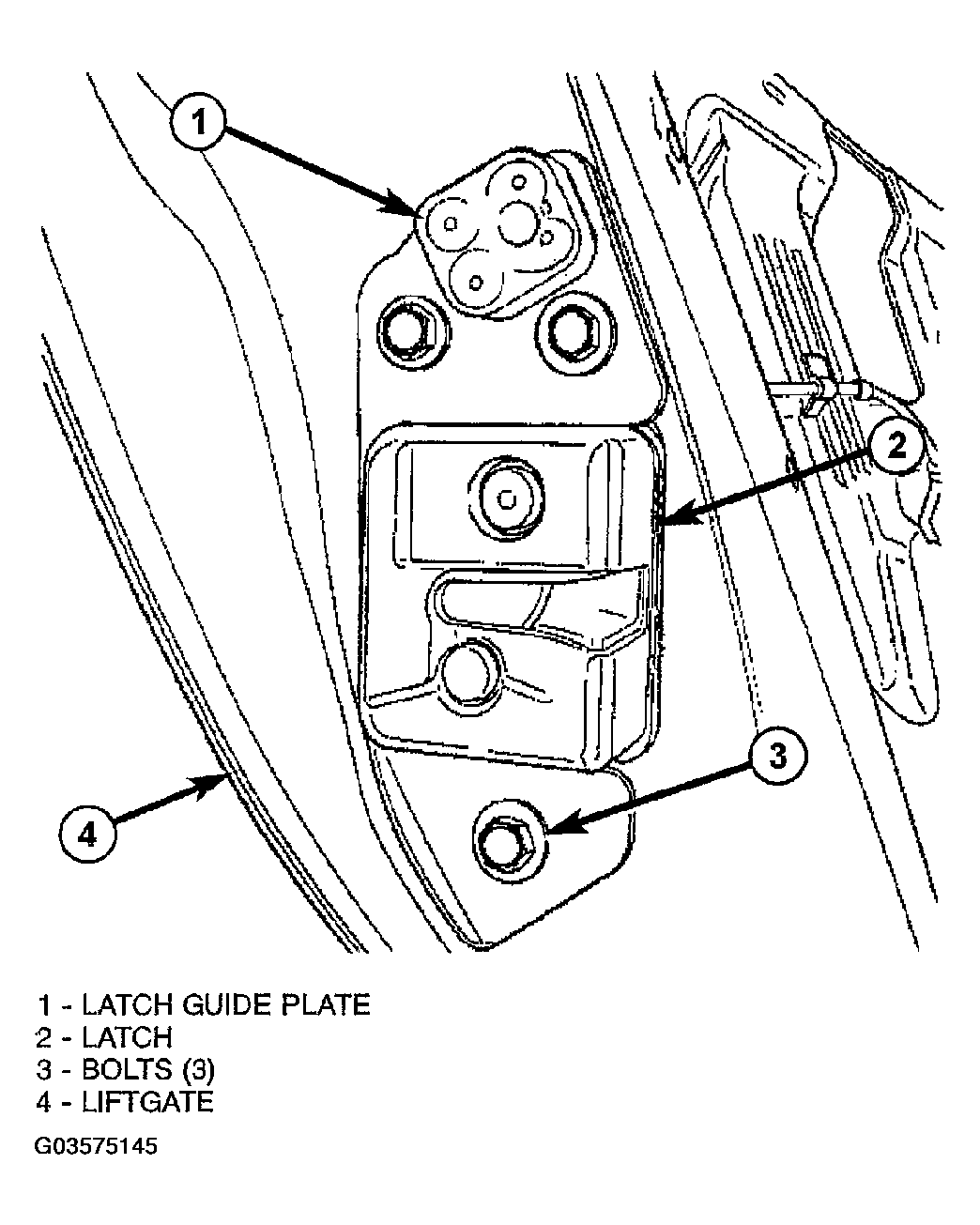

Fig 1: Removing Latch
Courtesy of DAIMLERCHRYSLER CORP.
Remove the latch.
Squeeze the cable retainer clips and remove the cable housing from the latch assembly. (Fig 2 )

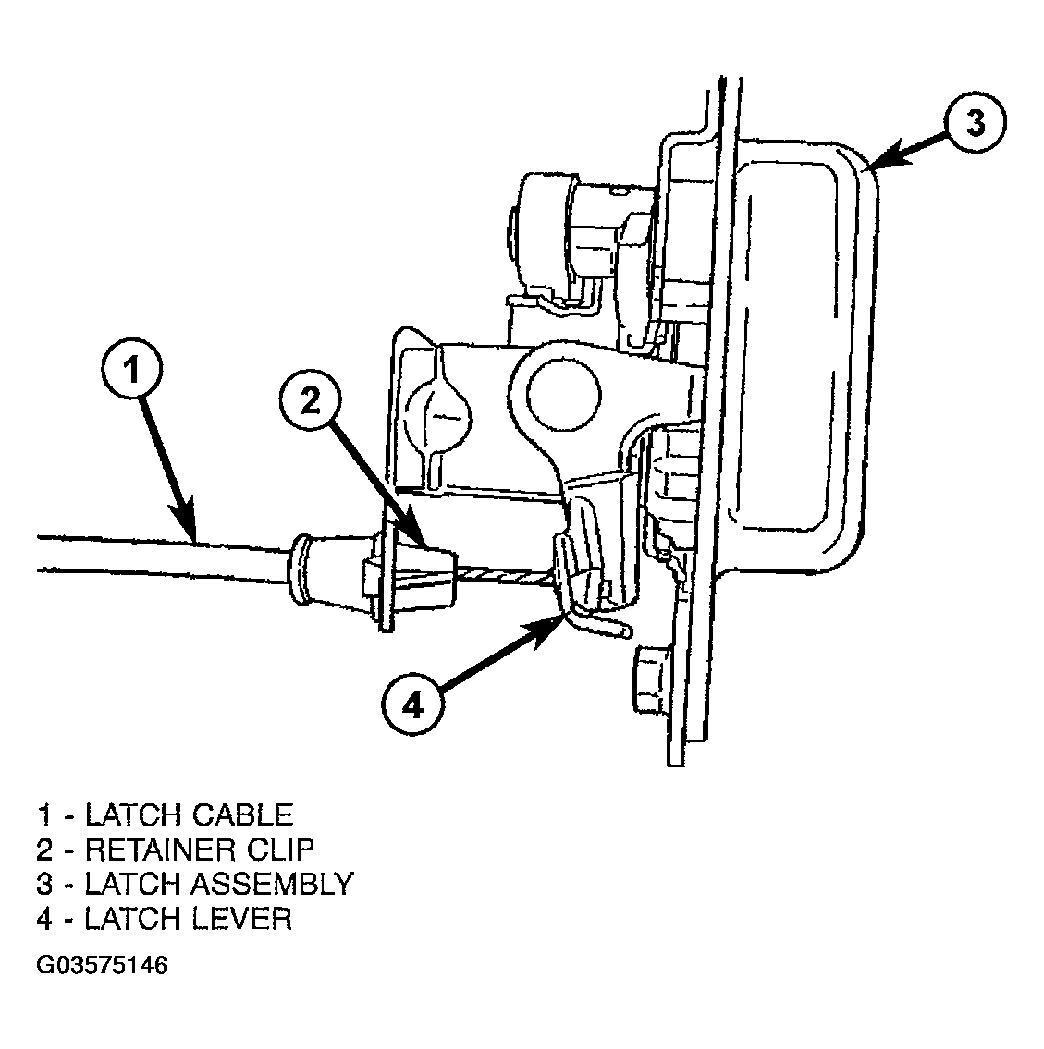

Fig 2: Disconnecting Latch/Cable Connection
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the latch cable from the latch lever and remove the cable.
