Removal & Installation
WARNING: This page is about a different car, the 2002 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove the Junction Block. See REMOVAL & INSTALLATION in BODY CONTROL MODULES - LIBERTY article.

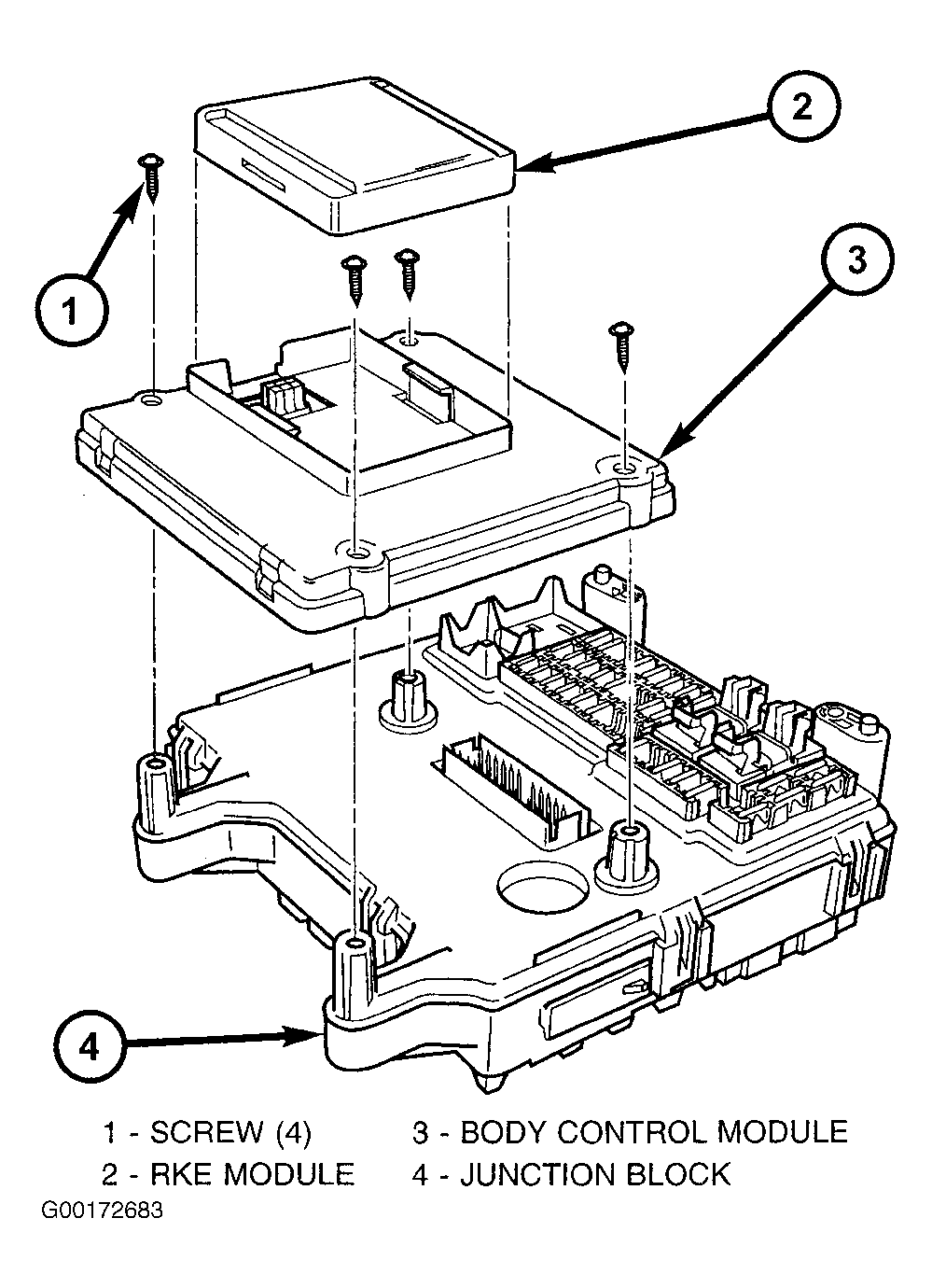

- Remove RKE Module from BCM. See Fig 1.
- To install, reverse the removal procedure. Program customer preferences. See REMOTE KEYLESS ENTRY (RKE) TRANSMITTER in PROGRAMMING.
