Component Locations
WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

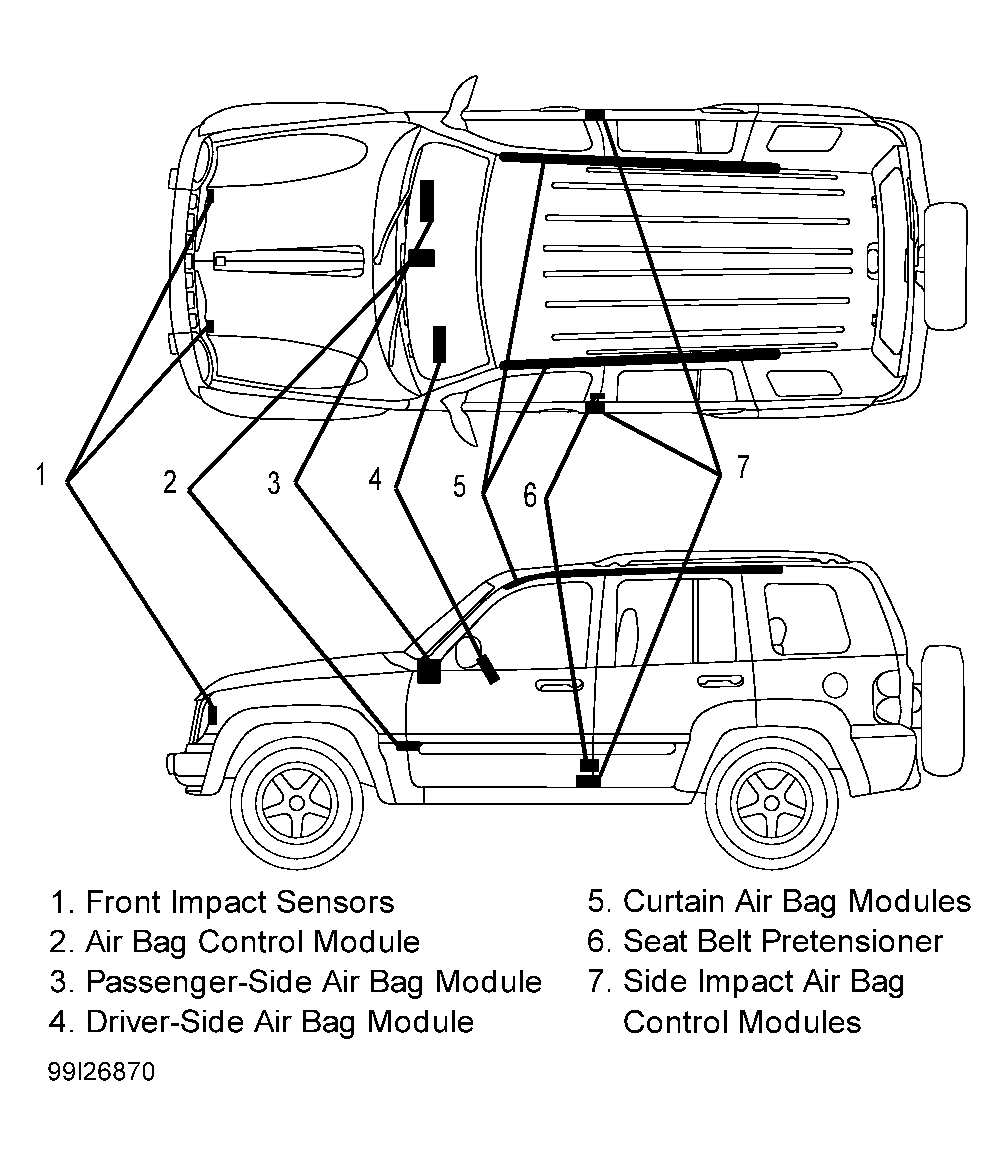

Refer to table for restraint system component locations. See RESTRAINT SYSTEM COMPONENT LOCATIONS table.
RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Air bag control module | On floor of transmission tunnel, forward of instrument panel center support bracket | ||
| Clockspring | Top of steering column, behind steering wheel | ||
| Curtain air bag modules | Outboard edges of roof, behind headliner | ||
| Data link connector | Under left side instrument panel, near steering column | ||
| Dual-stage driver-side air bag module | Front face of steering wheel | ||
| Dual-stage passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Front impact sensors | On vertical members of radiator support, in engine compartment | ||
| Seat belt pretensioner | Left front seat belt retractor | ||
| Seat belt switches | Integrated with front seat belt buckles | ||
| Side impact air bag control modules | Inside B-pillars, near seat belt retractors | ||
|
|||
