Transmission Control Module: Description

WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The Transmission Control Module (TCM) is located in the engine compartment on the right (passenger) side and is mounted to the inner fender (Fig 1 ).

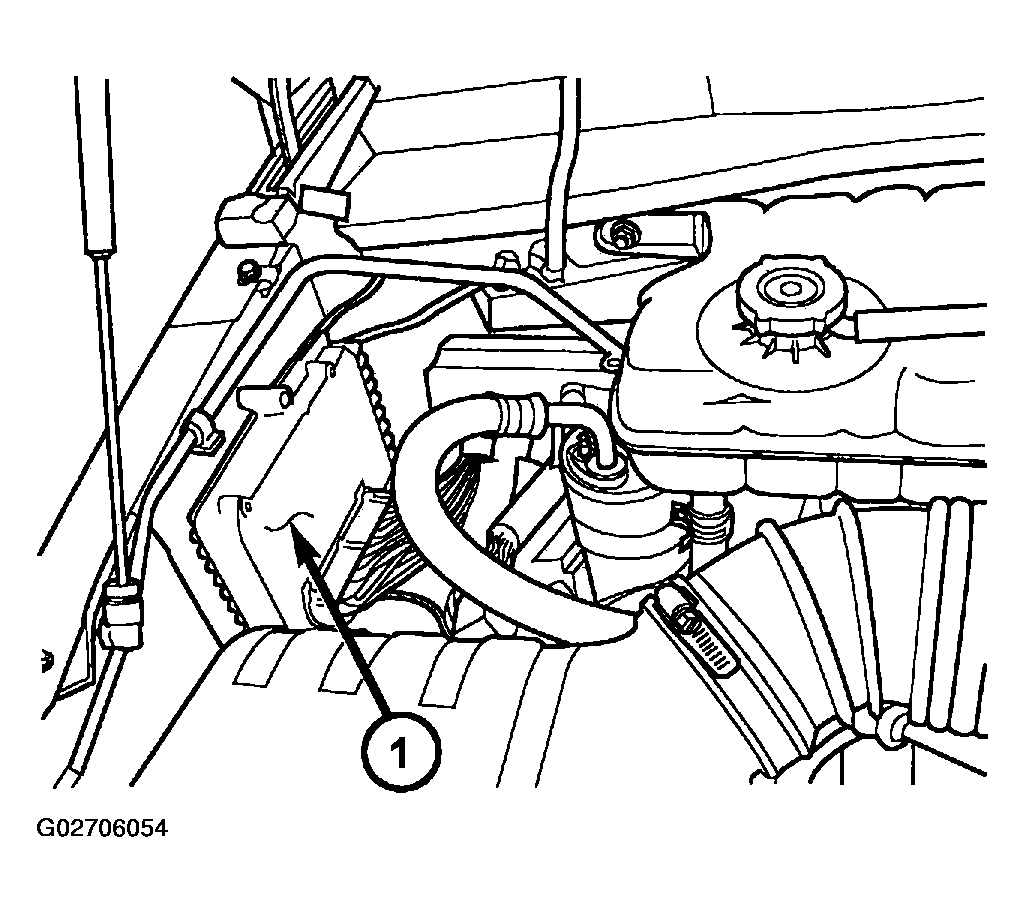

Fig 1: Locating Transmission Control Module
G02706054Courtesy of DAIMLERCHRYSLER CORP.
