Remote Keyless Entry Module: Removal

WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove the Junction Block (JB) (Refer to POWER DISTRIBUTION ).
Remove Remote Keyless Entry module from Body Control Module (Fig 1 ).

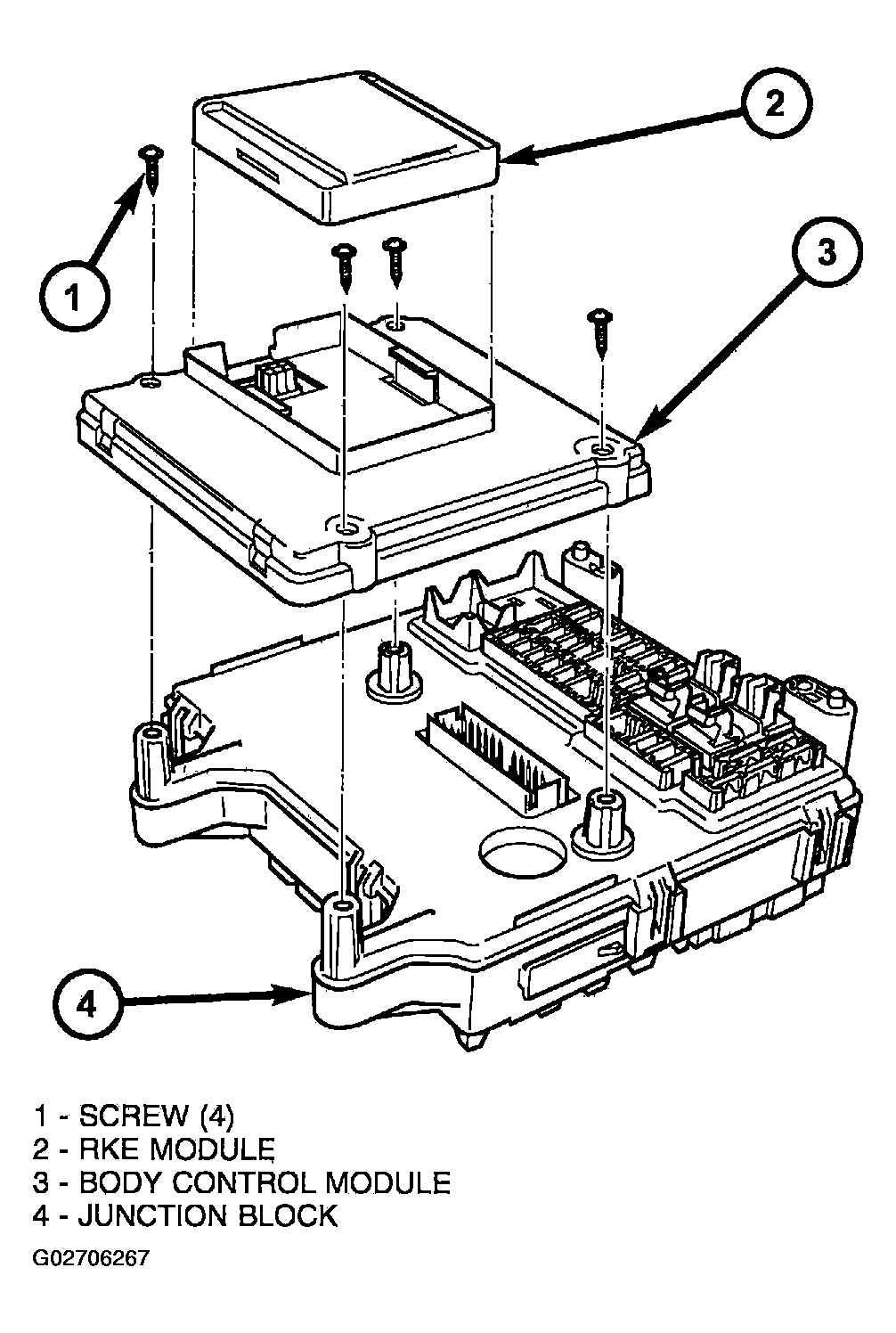

Fig 1: Installing RKE Module
Courtesy of DAIMLERCHRYSLER CORP.
