Hands Free Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the right quarter trim panel. See QUARTER TRIM PANEL  .
  3. Remove mounting fasteners.

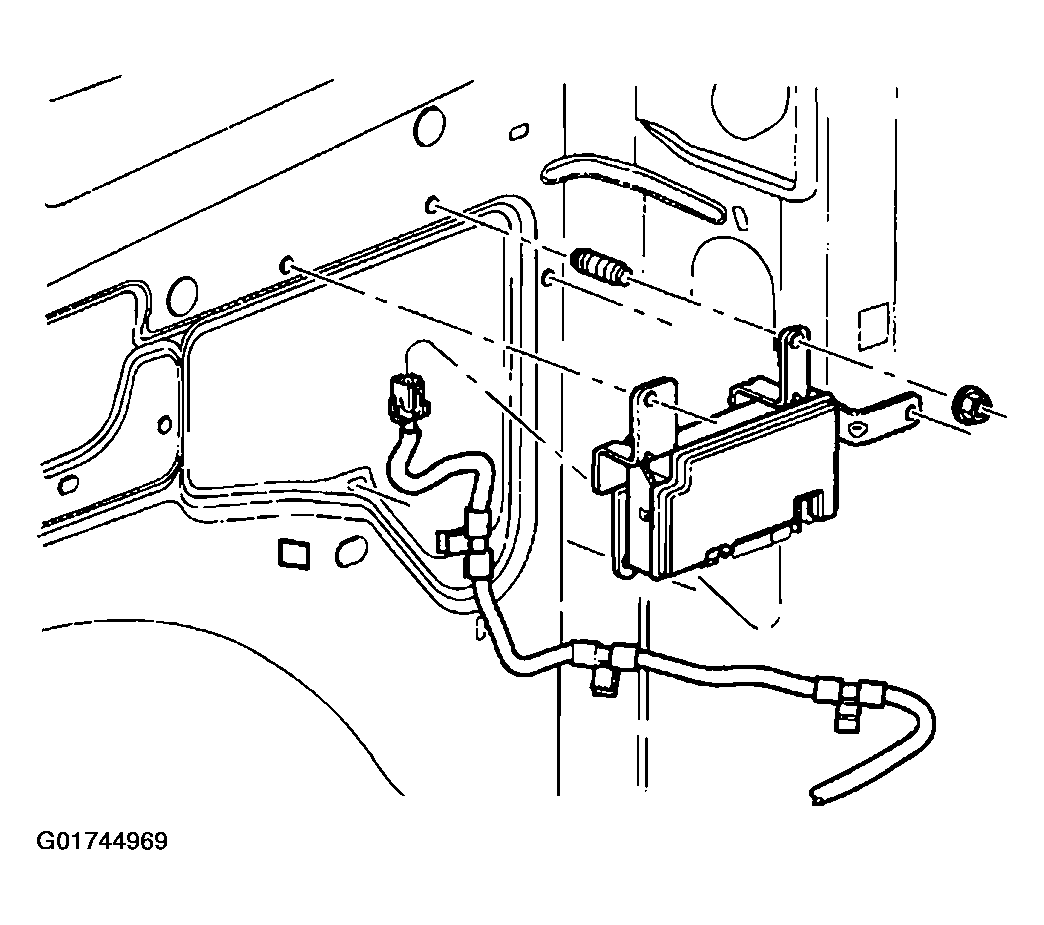

    Fig 1: Removing Hands Free Module & Bracket
    G01744969Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect electrical harness connector.
