Powertrain Verification Test VER-6
Powertrain Verification Test VER-6

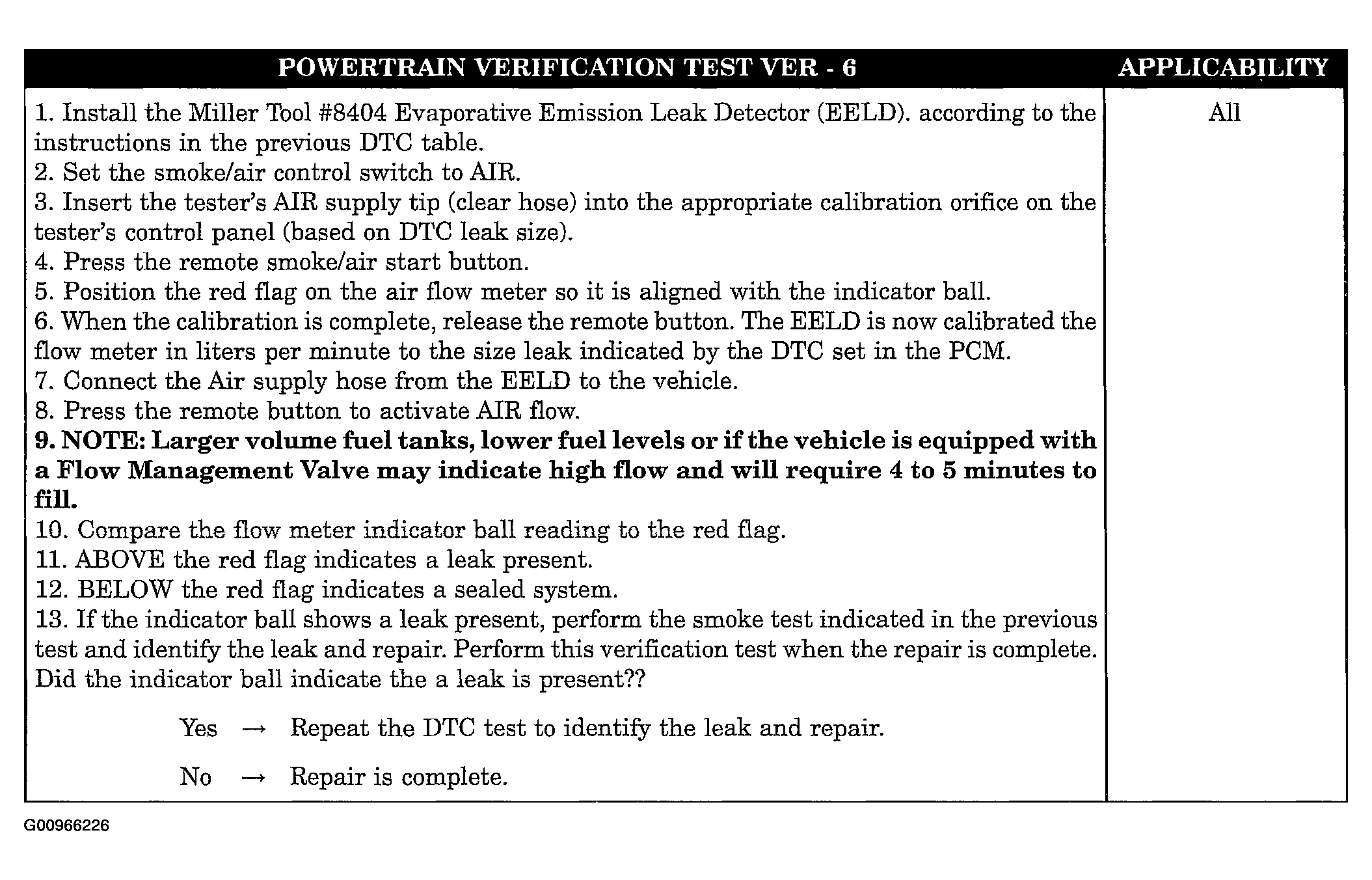

Fig 1: Powertrain Verification Test VER-6
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
