Adjustable Pedals Module: Installation
WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Install the module on the mounting pins in the vehicle.
- Reconnect the electrical connector.

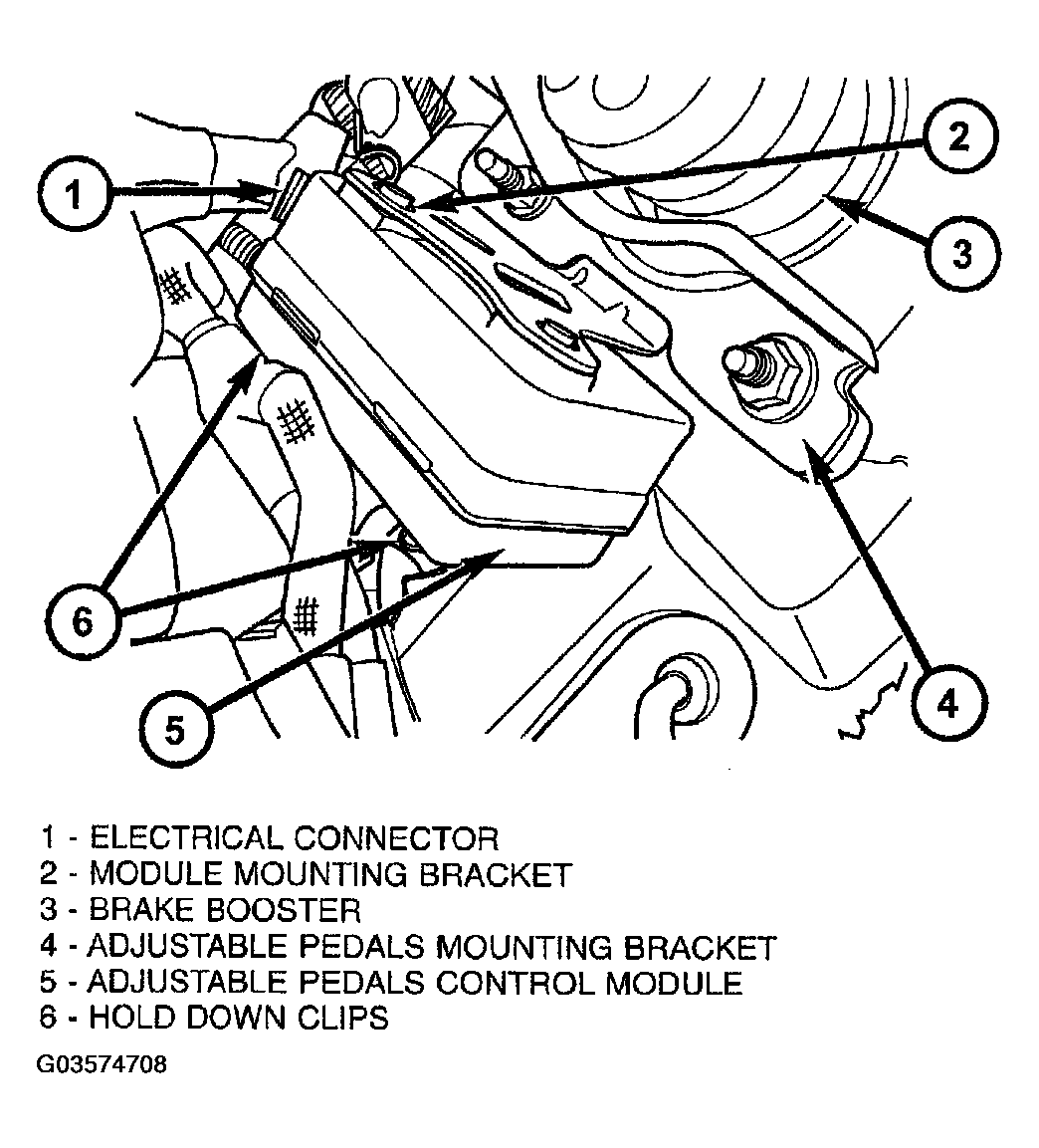

- Install the two mounting clips for the module (Figure ).
- Install the adjustable pedal motor. (Refer to ADJUSTABLE PEDALS ).
- Install the steering column opening cover (Refer to STEERING COLUMN OPENING COVER ).
- Install the cluster bezel (Refer to CLUSTER BEZEL ).
- Reconnect the negative battery cable.
