Door Module: Installation

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the door module onto the front door trim panel.

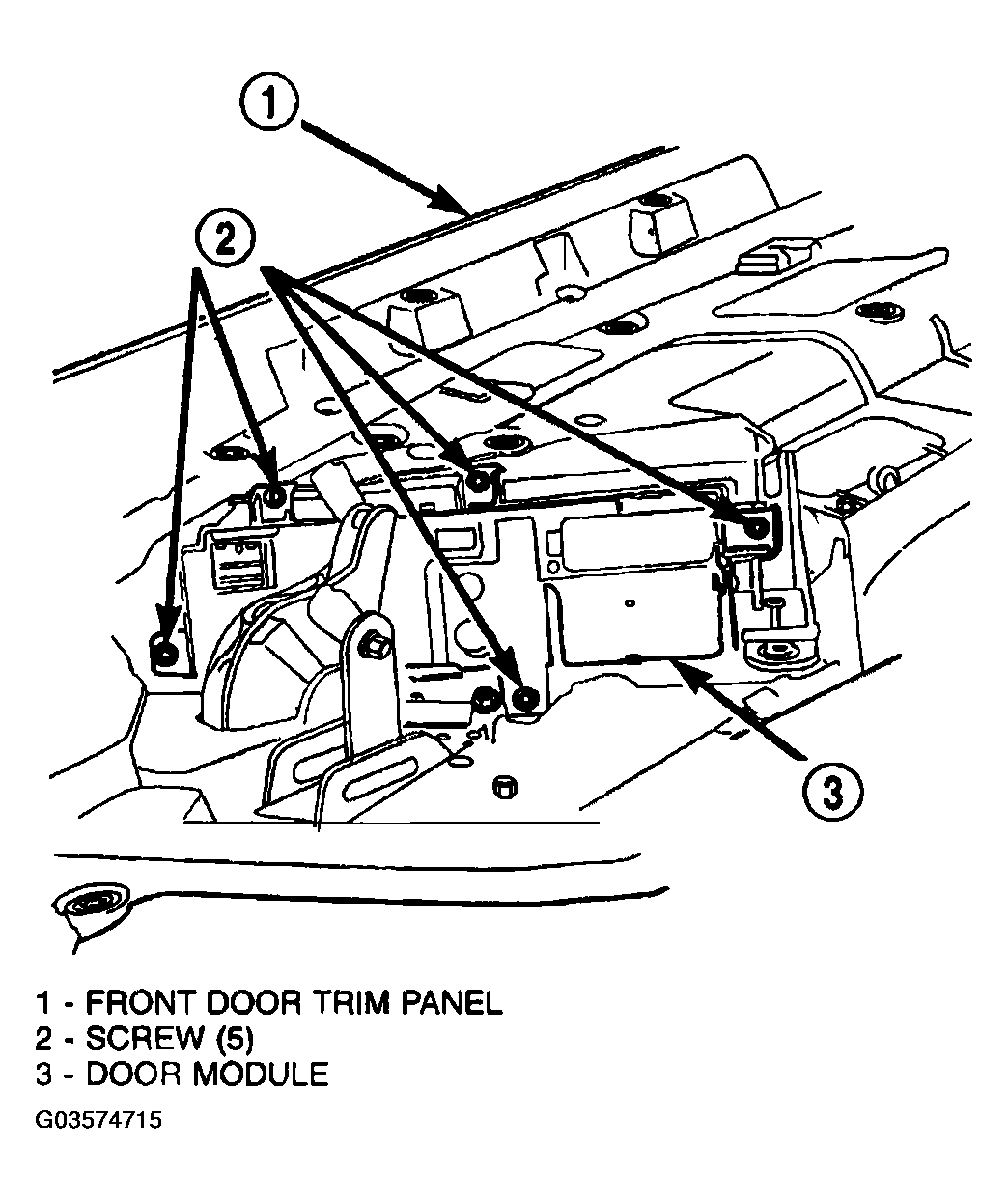

  2. Install the door module to the back of the front door trim panel (Figure ). Tighten the screws to 2.2 N.m (20 in. lbs.).
  3. Reinstall the trim panel onto the front door. (Refer to TRIM PANEL ).
  4. Reconnect the battery negative cable.
