Occupant Classification Module - 18 Way Connector End View
Occupant Classification Module - 18 Way Connector End View

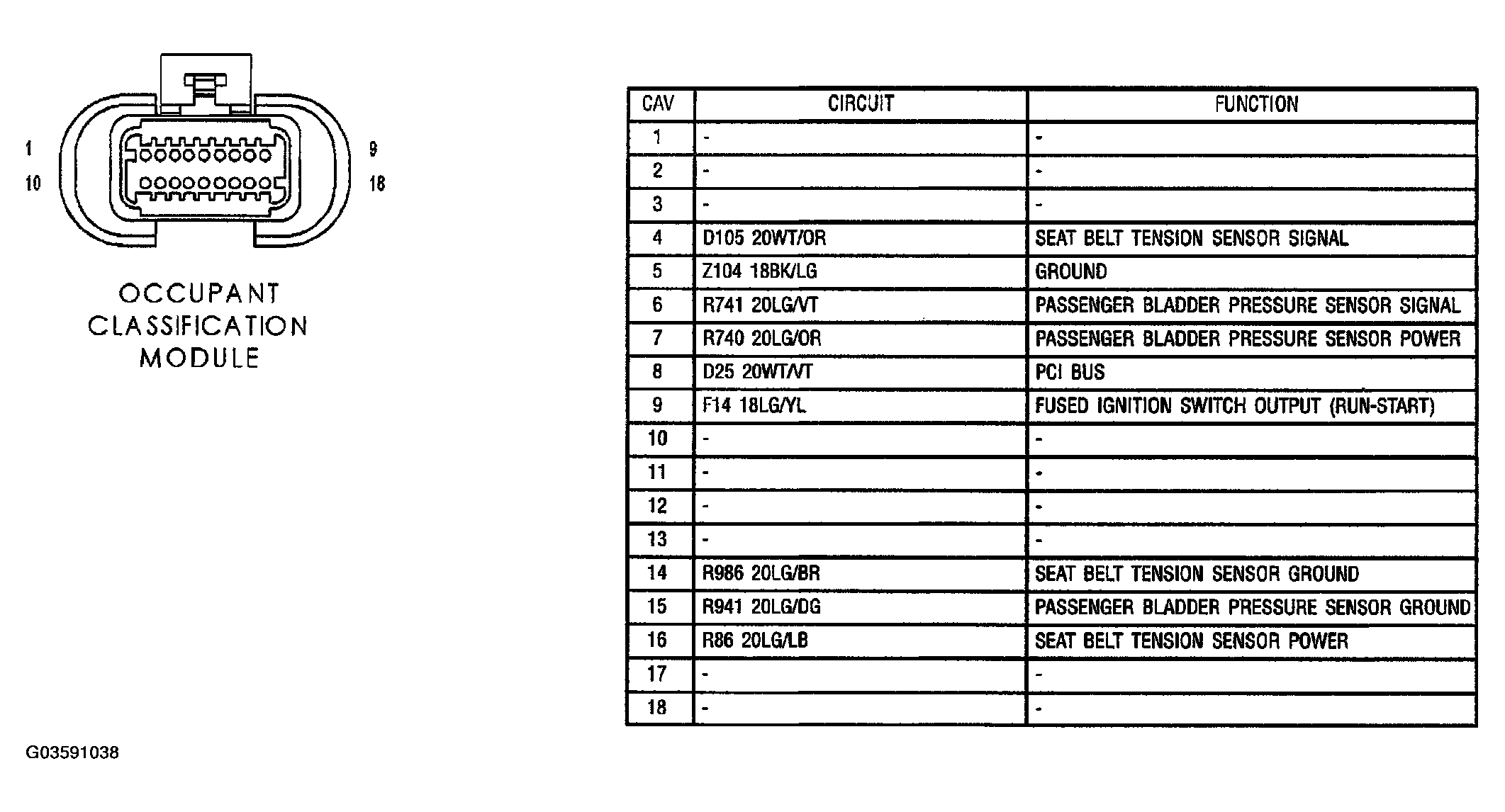

Fig 1: Occupant Classification Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
