Powertrain Control Module C1 - 38 Way Connector End View
Powertrain Control Module C1 - 38 Way Connector End View

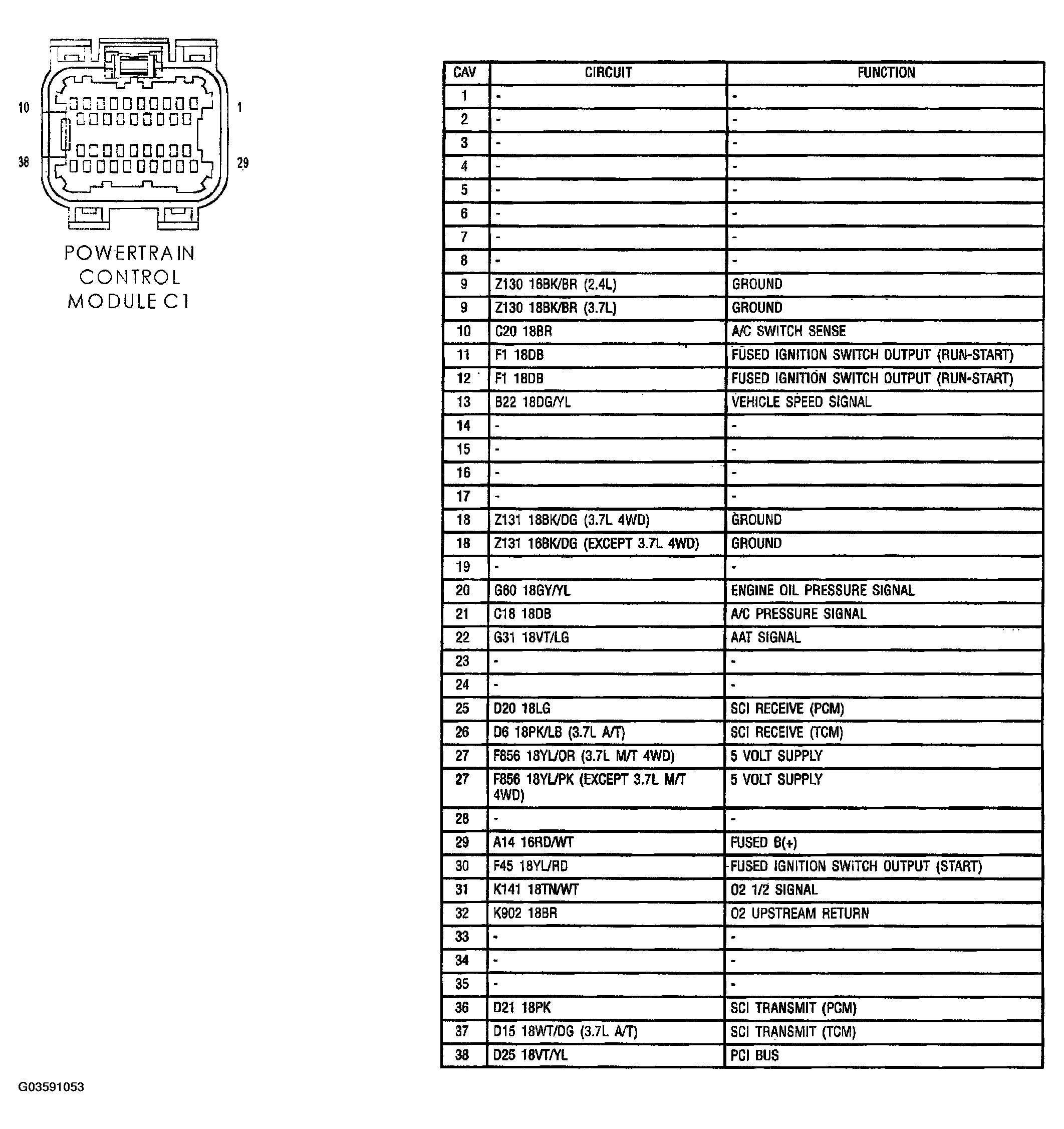

Fig 1: Powertrain Control Module Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
