Powertrain Control Module C2 Connector End View
Powertrain Control Module C2 Connector End View

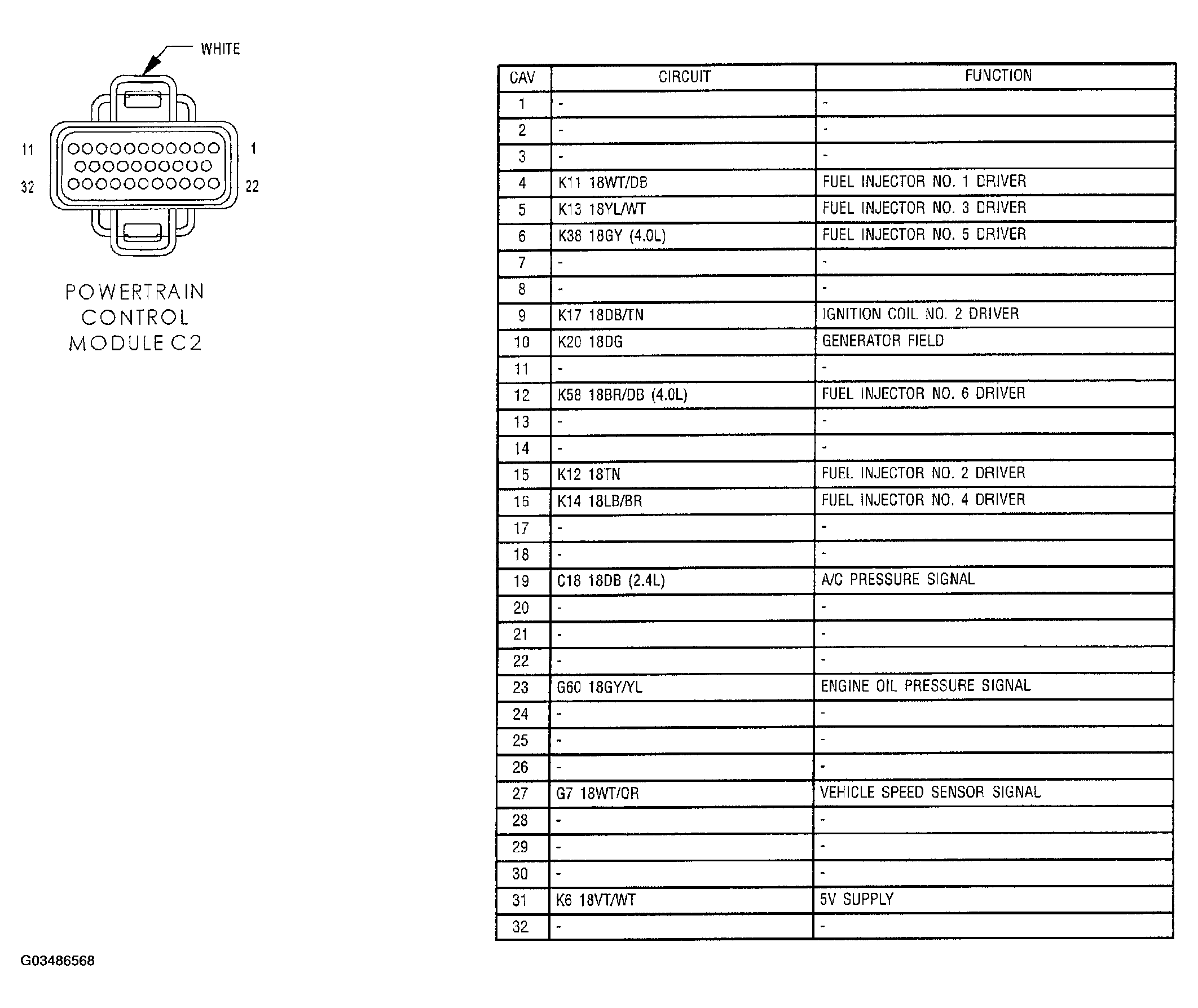

Fig 1: Powertrain Control Module Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
