Multi-Function Switch C1 Connector End View
Multi-Function Switch C1 Connector End View

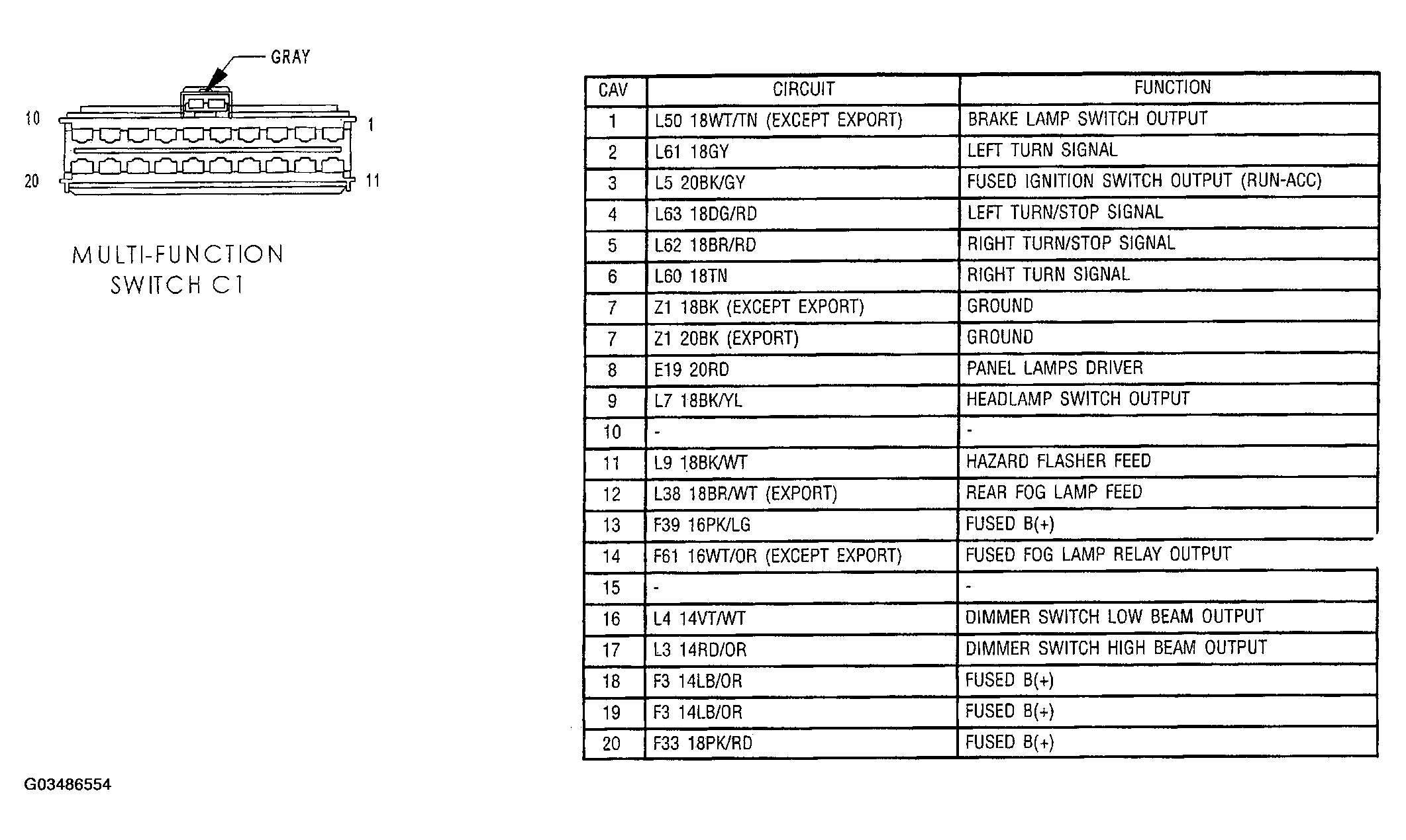

Fig 1: Multifunction Switch Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
