Controller Antilock Brake Connector End View
Controller Antilock Brake Connector End View

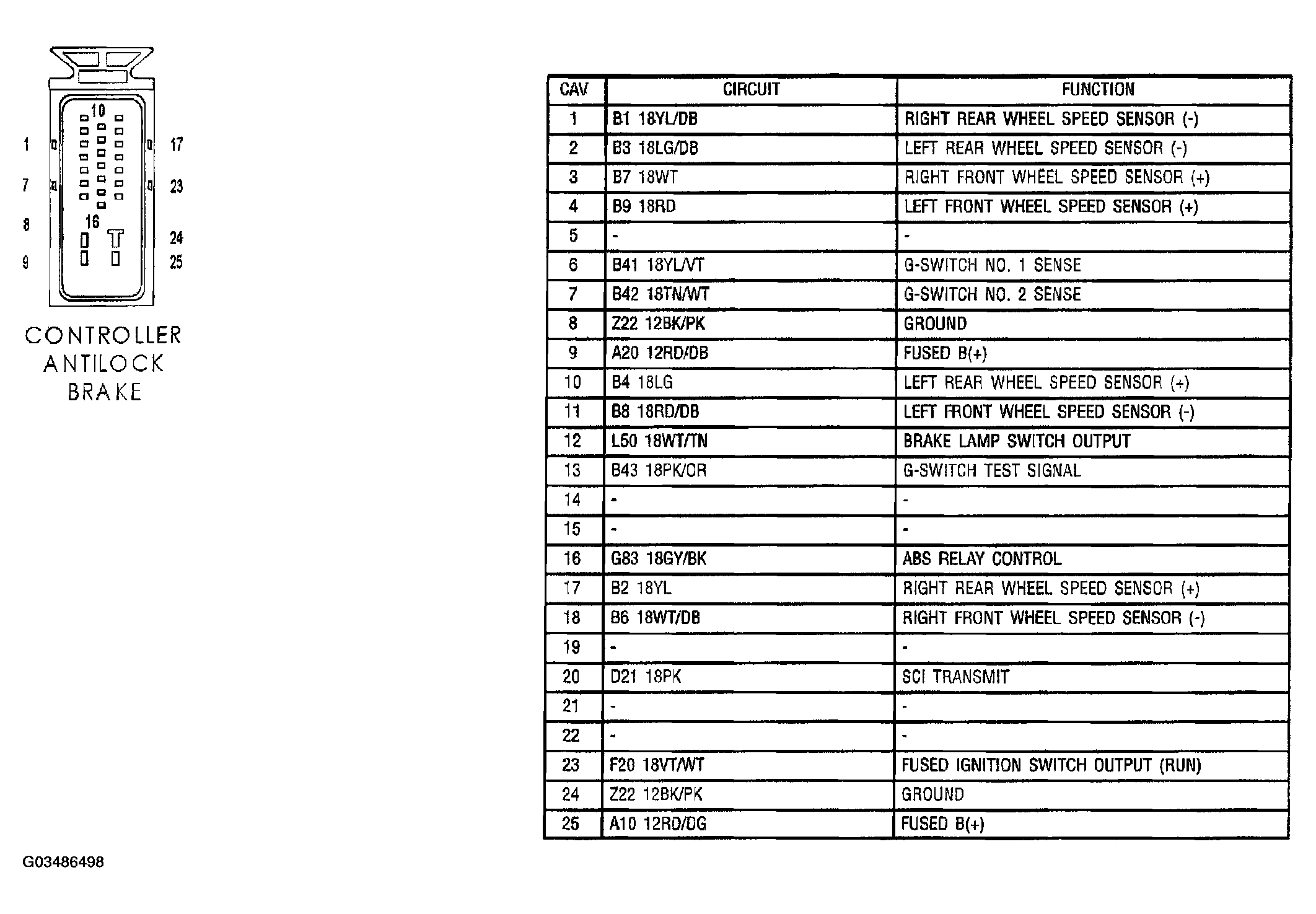

Fig 1: Antilock Brake Controller Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
