PDC B(+) Terminal Module Removal

Remove the PDC housing lower cover.
From the top of the PDC housing, use a small screwdriver or a terminal pick tool (Special Tool Kit 6680) to release the two latches that secure the B(+) terminal module in the PDC (Fig 1 ).

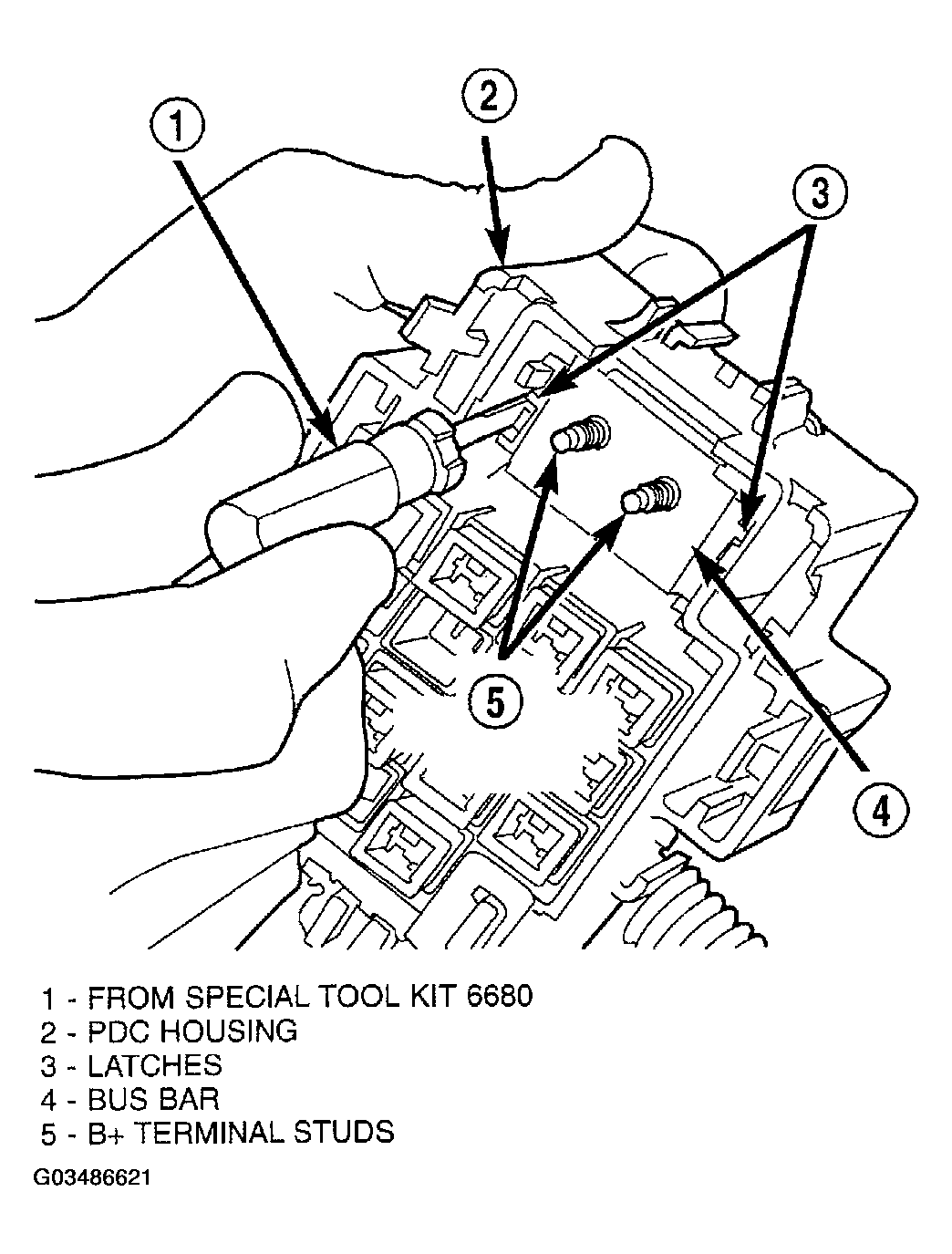

Fig 1: Removing PDC Housing Lower Cover Using Small Screwdriver
Courtesy of DAIMLERCHRYSLER CORP.
Gently and evenly press the two B(+) terminal studs down through the bus bar in the PDC.
From the bottom of the PDC housing, remove the B(+) terminal module from the PDC (Fig 2 ).

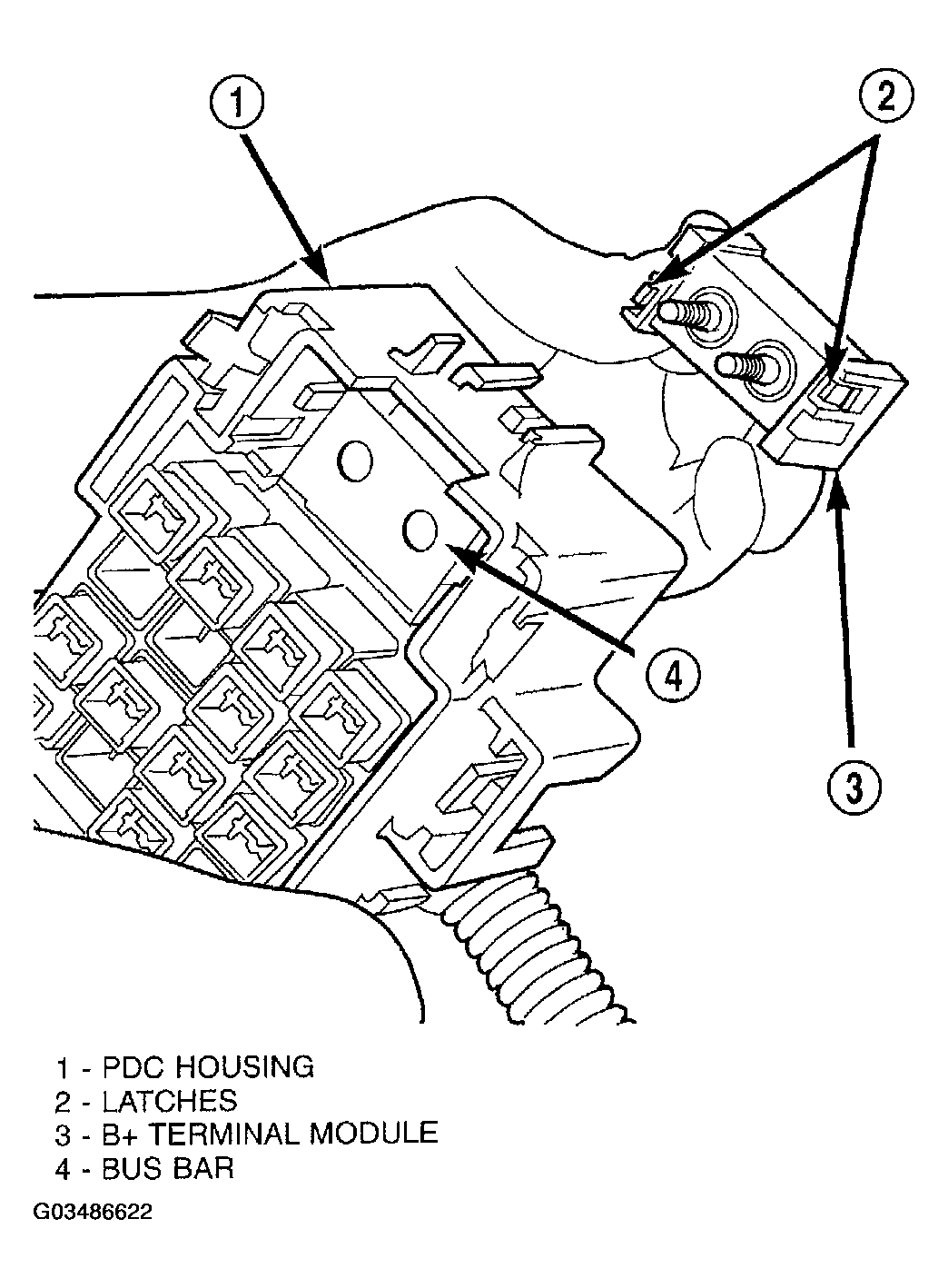

Fig 2: Identifying PDC B(+) Terminal Module
Courtesy of DAIMLERCHRYSLER CORP.
