Daytime Running Lamp Module (Except Export) Connector End View
Daytime Running Lamp Module (Except Export) Connector End View

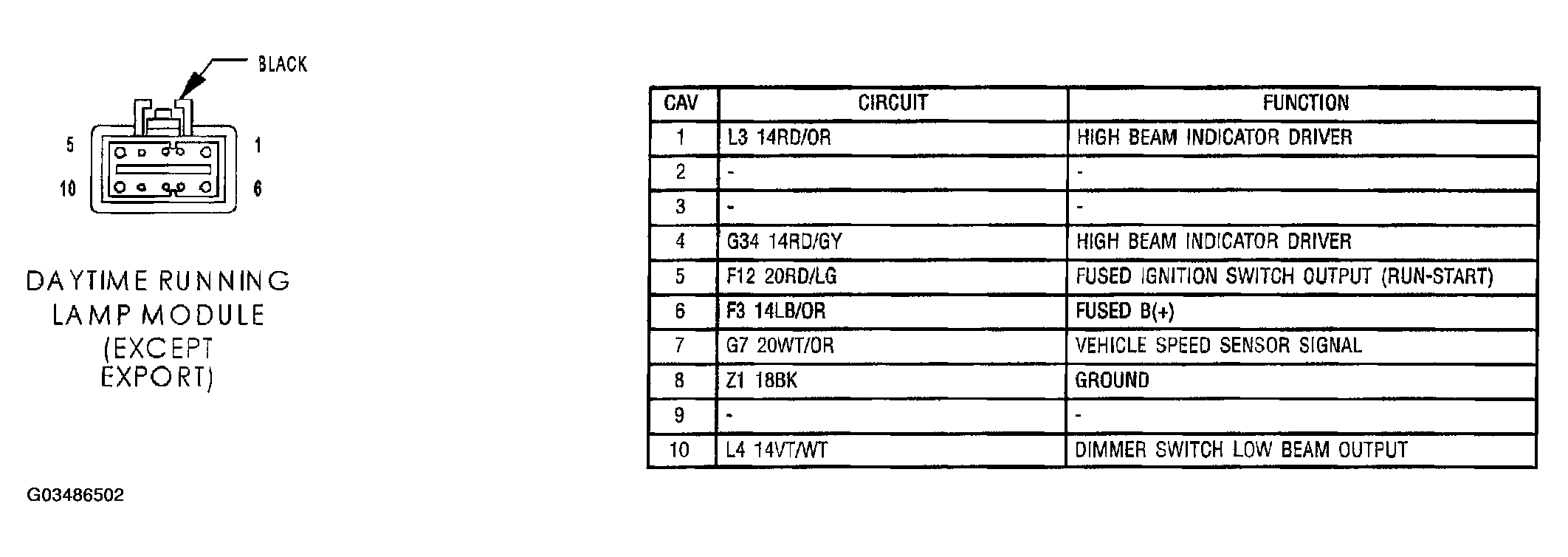

Fig 1: Daytime Running Lamp Module (Except Export) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
