Connector PINOUTS
›
Data Link Connector - Black 16 Way
Data Link Connector - Black 16 Way

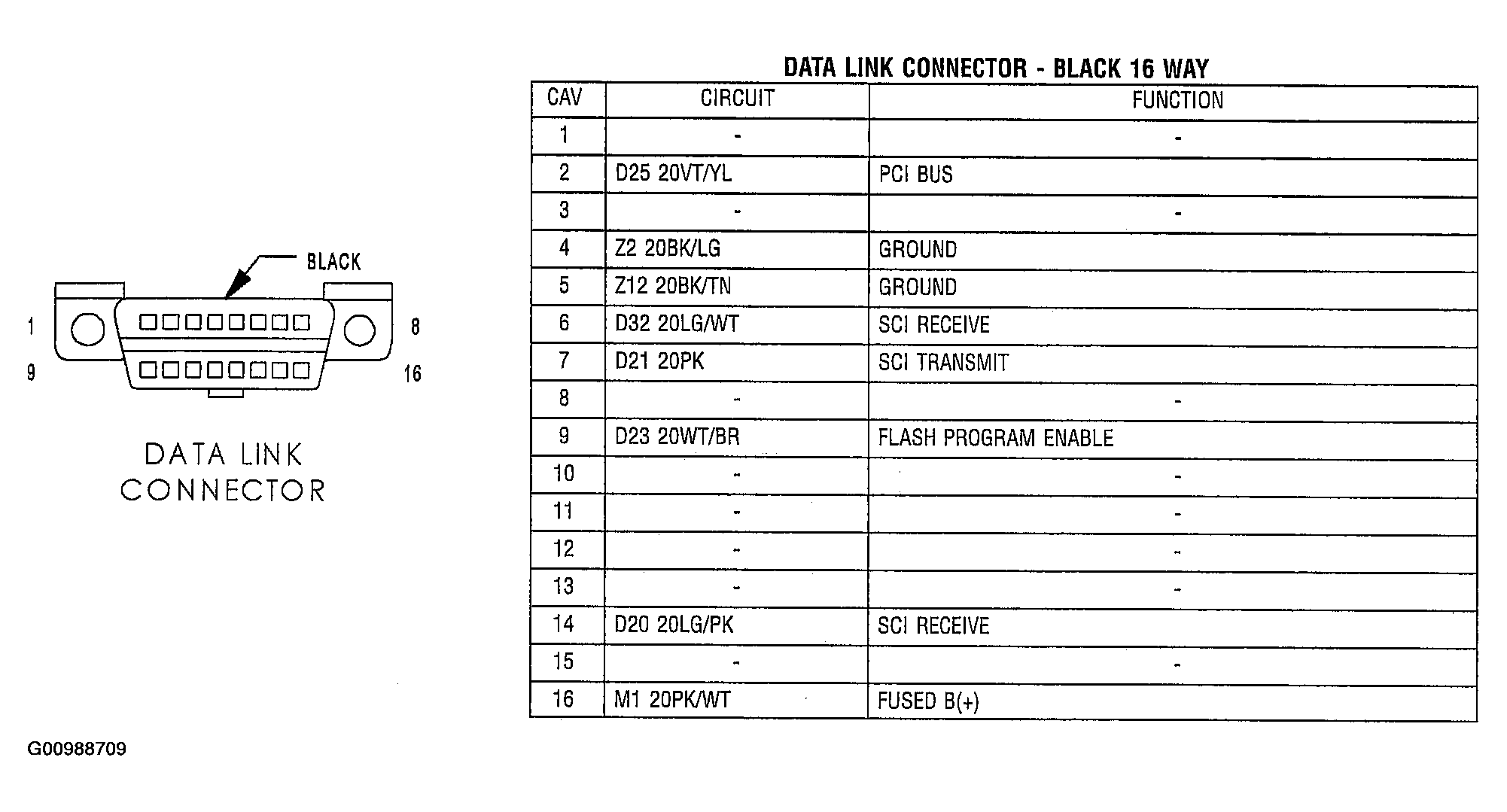

Fig 1: Identifying Data Link Connector - Black 16 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
