Speed Control Servo - Black 4 Way
Speed Control Servo - Black 4 Way

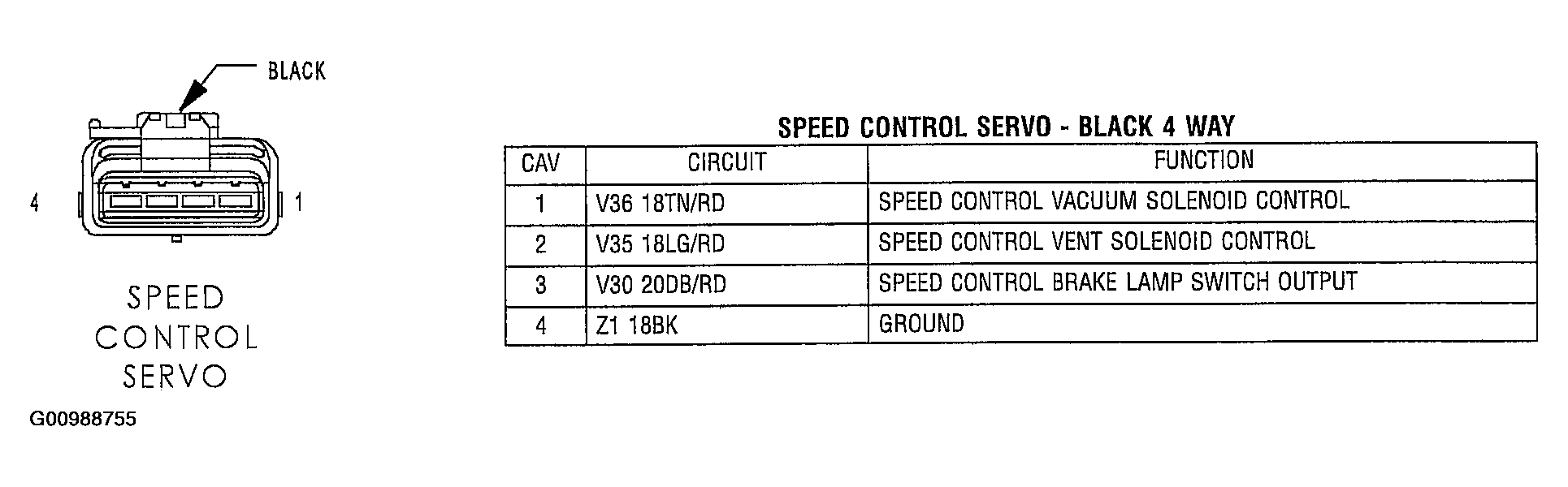

Fig 1: Identifying Speed Control Servo - Black 4 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
