DTC P1294: Target Idle Not Reached: Testing

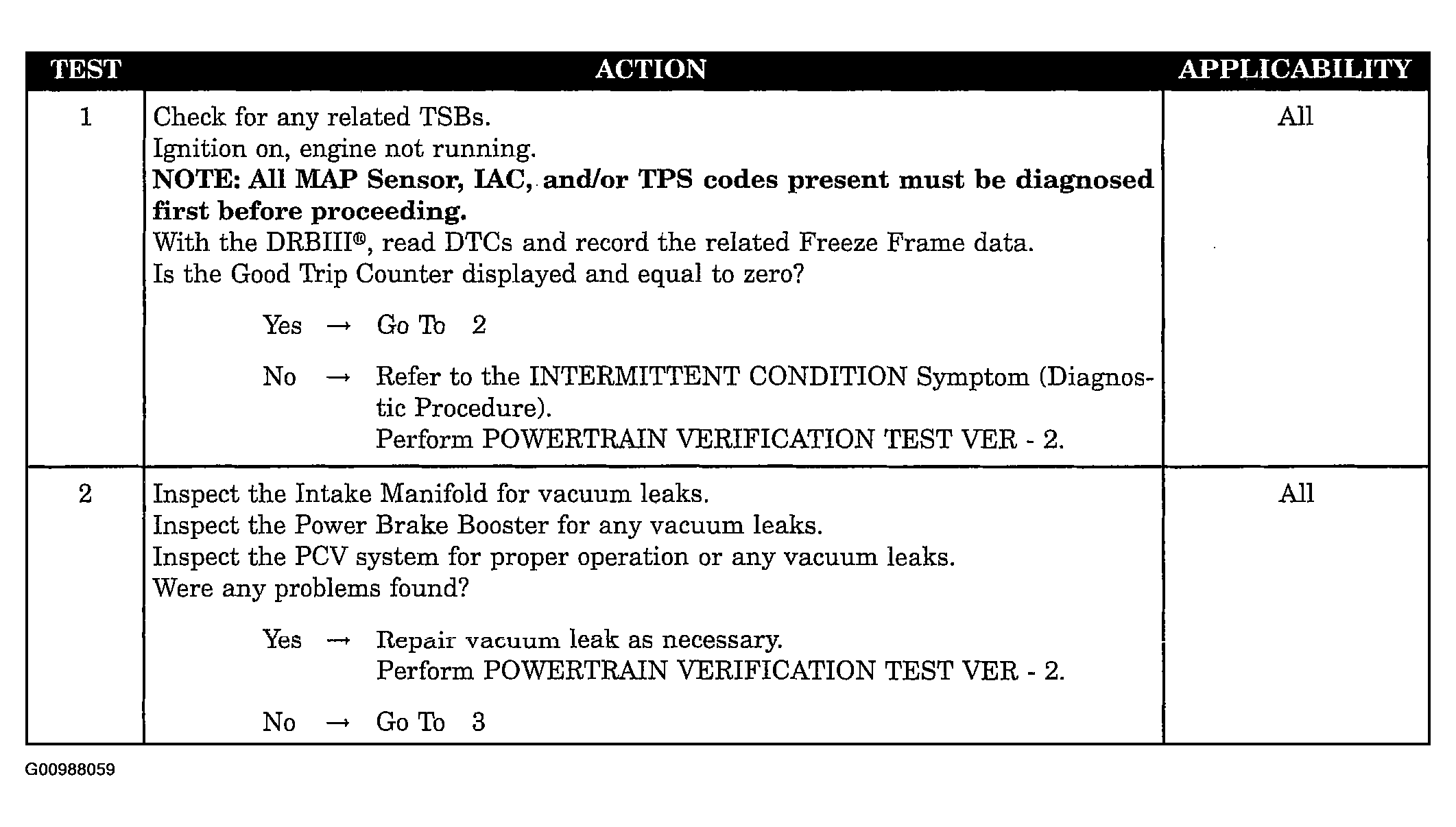

Fig 1: Testing: DTC P1294: Target Idle Not Reached (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

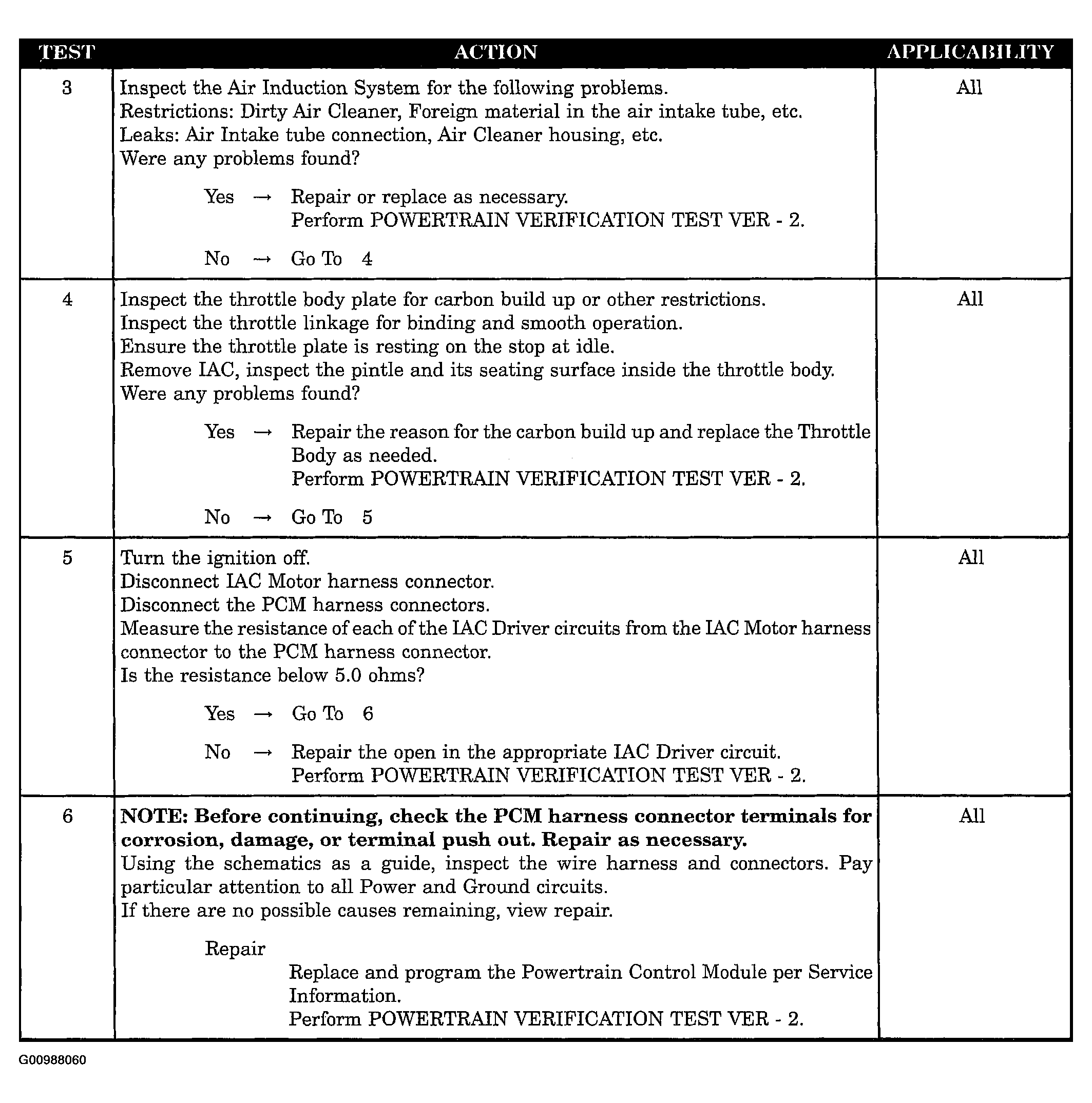

Fig 2: Testing: DTC P1294: Target Idle Not Reached (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
