Automatic Transmission Diagnostic Procedures
›
Connector PINOUTS
›
Powertrain Control Module C2 - White 32 Way
Powertrain Control Module C2 - White 32 Way

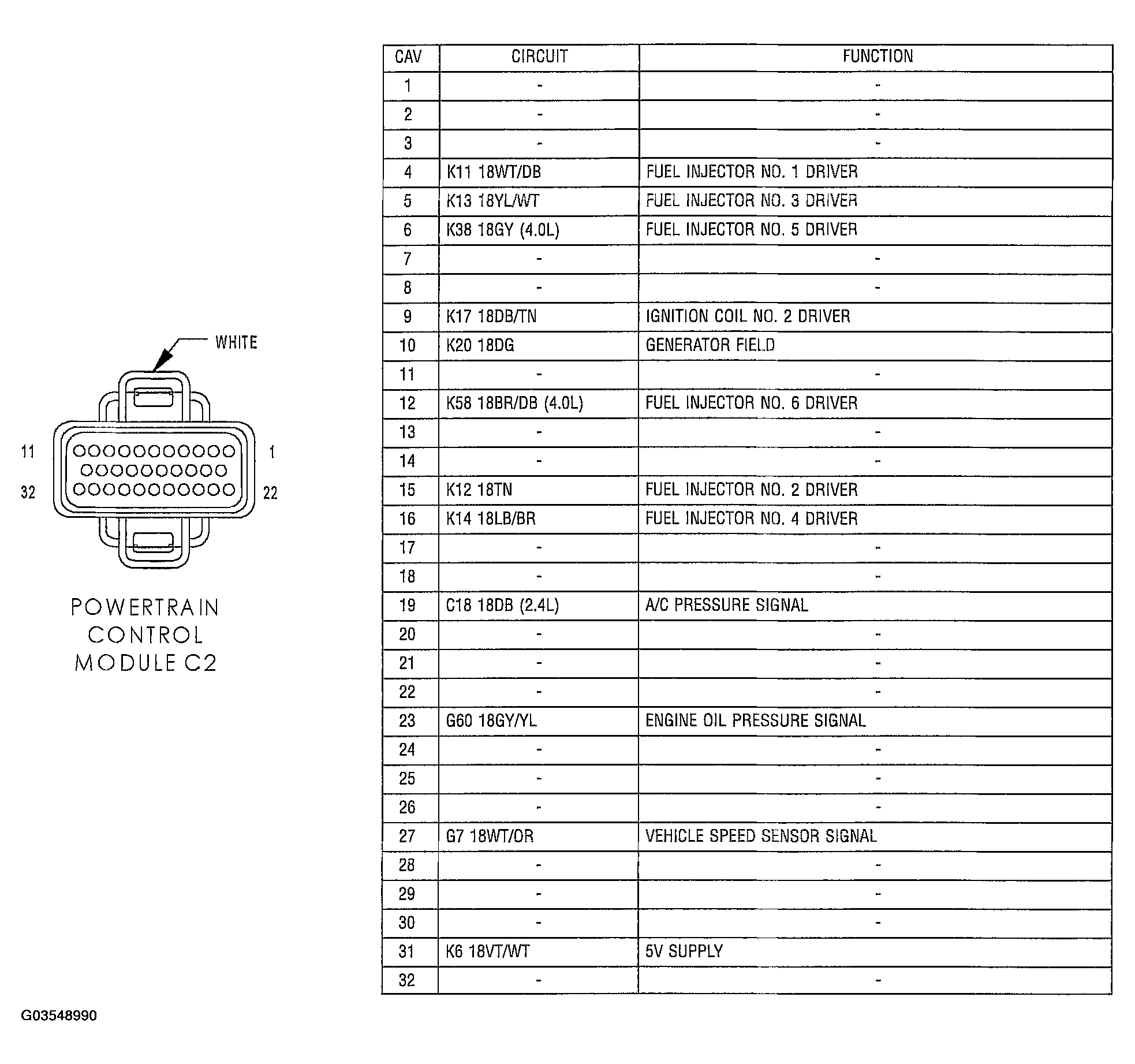

Fig 1: Identifying Powertrain Control Module C2 - White 32 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
