Transmission Control Module - 60 Way

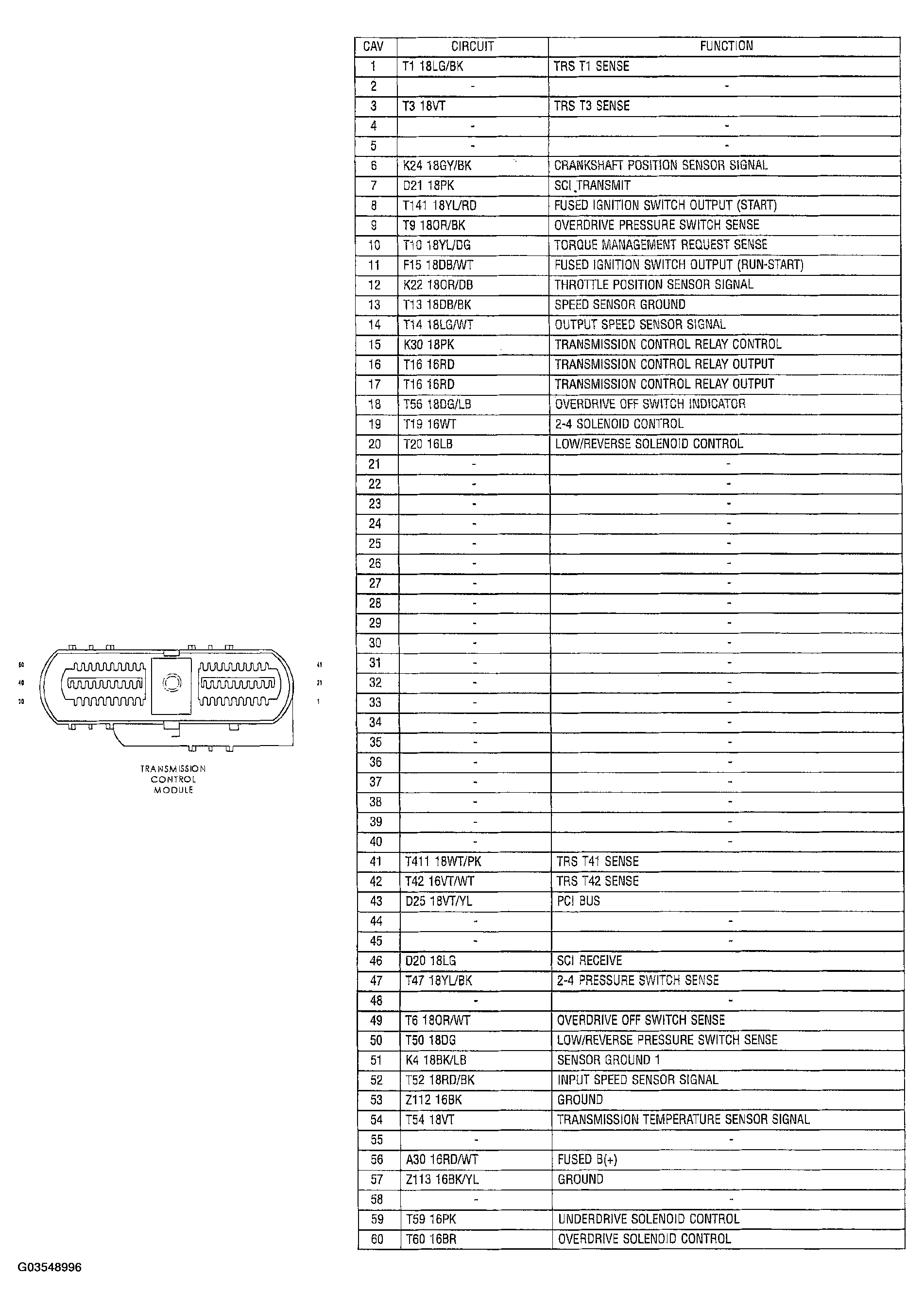

Fig 1: Identifying Transmission Control Module - 60 Way
G03548996Courtesy of DAIMLERCHRYSLER CORP.
