Fuses (Fuse/Relay Block)

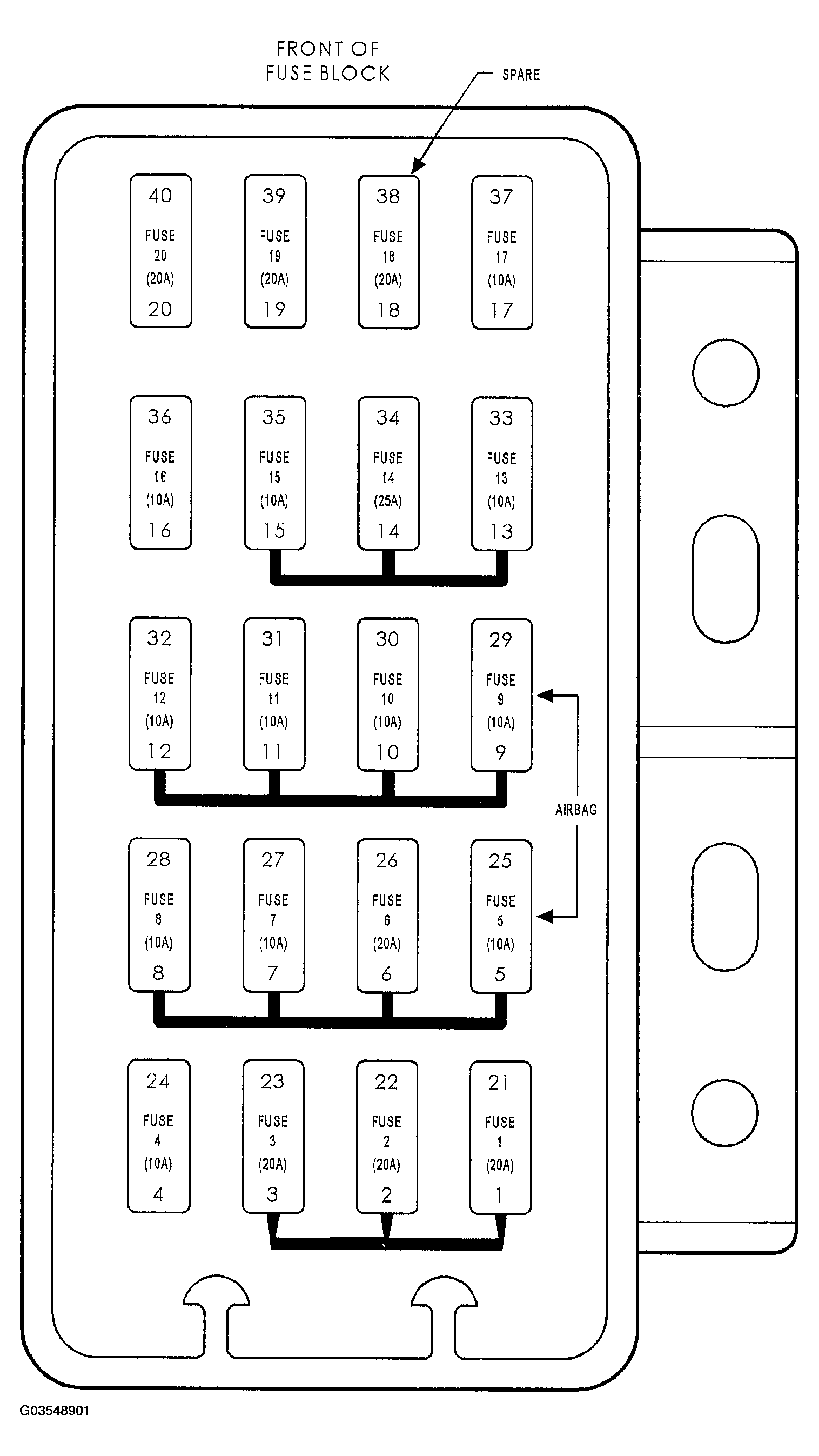

Fig 1: Identifying Fuses Connector Terminals And Specification (Fuse/Relay Block) (1 Of 2)
G03548901Courtesy of DAIMLERCHRYSLER CORP.

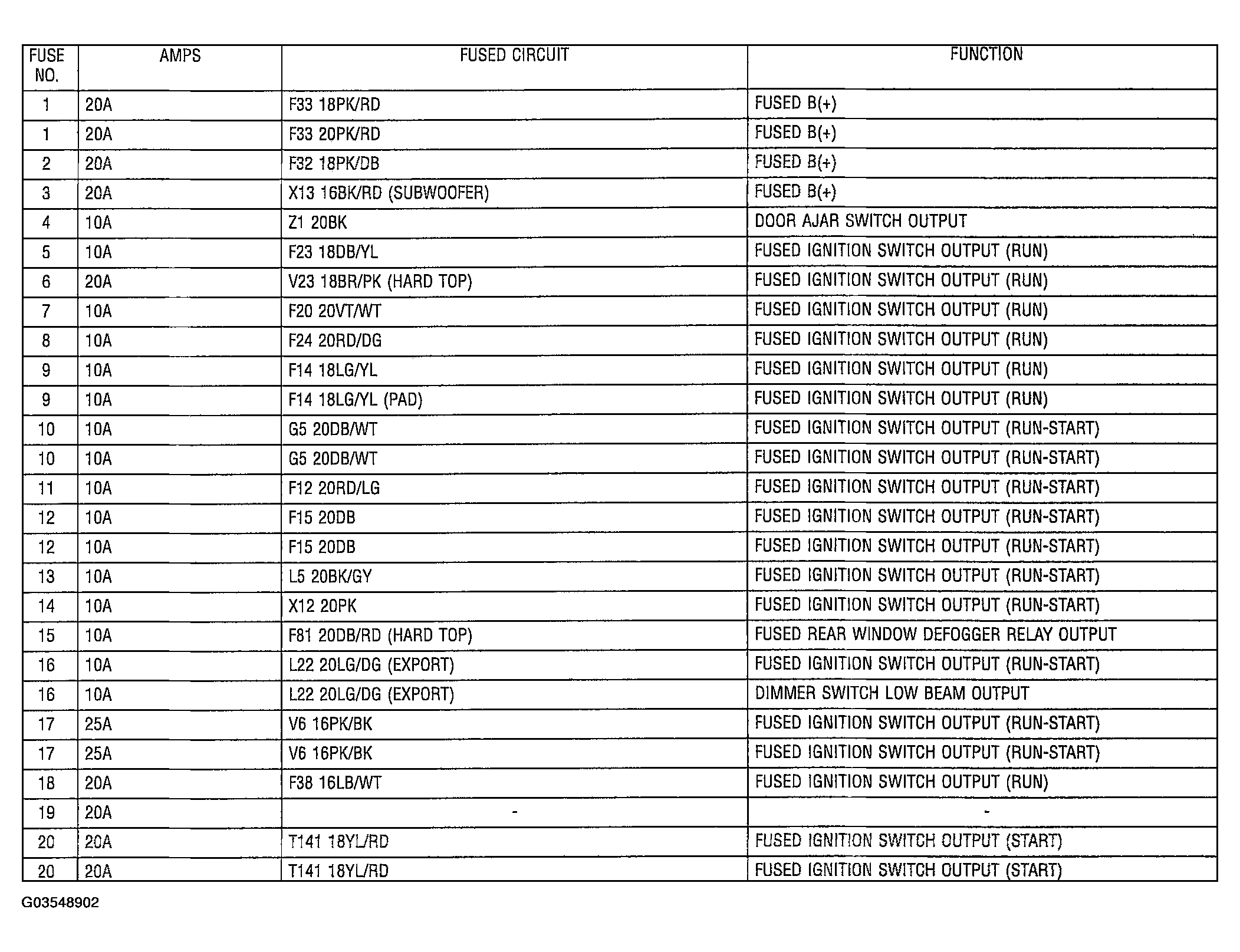

Fig 2: Identifying Fuses Connector Terminals And Specification (Fuse/Relay Block) (2 Of 2)
G03548902Courtesy of DAIMLERCHRYSLER CORP.
