Windshield Frame: Removal

  1. Unlatch top.
  2. Remove the bolts attaching the sport bar to the windshield frame.
  3. Remove the windshield wiper arms. (Refer to FRONT WIPER ARM )
  4. Remove the torx screw closest to the hinge pivot point and tilt the windshield forwarD.
  5. Remove he torx screws attaching the windshield hinge to the windshield frame (Fig 1 ).

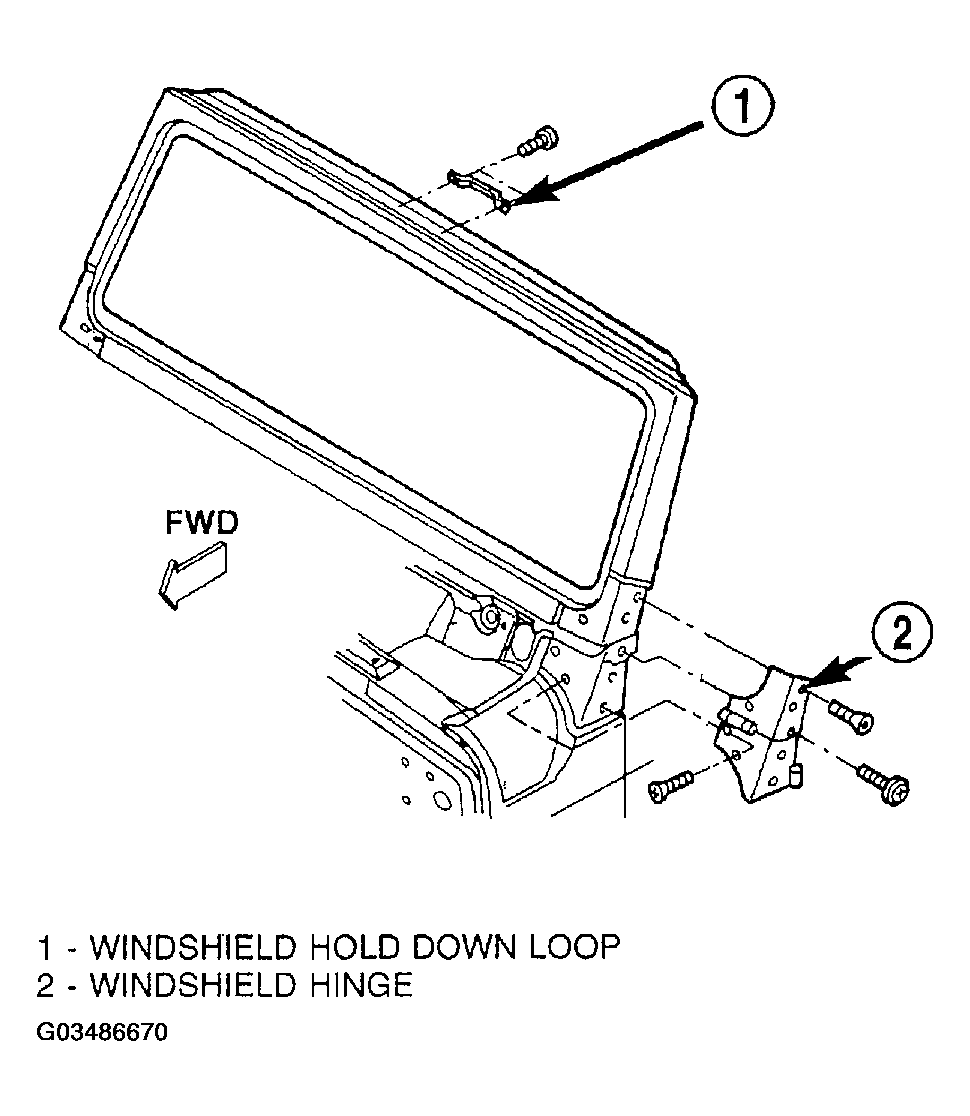

    Fig 1: Removing Windshield Frame
    G03486670Courtesy of DAIMLERCHRYSLER CORP.
  6. Separate with windshield frame from the vehicle.
