Multi-Function Switch C2 Connector End View
Multi-Function Switch C2 Connector End View

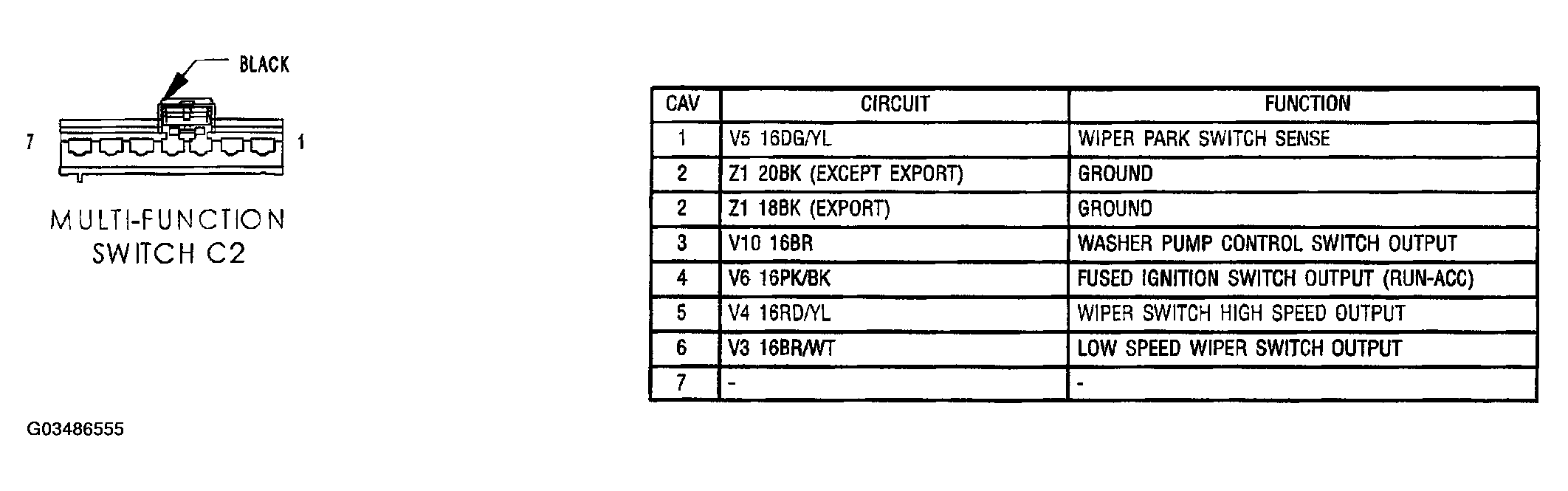

Fig 1: Multifunction Switch Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
