Engine Starter Motor Relay (In PDC)

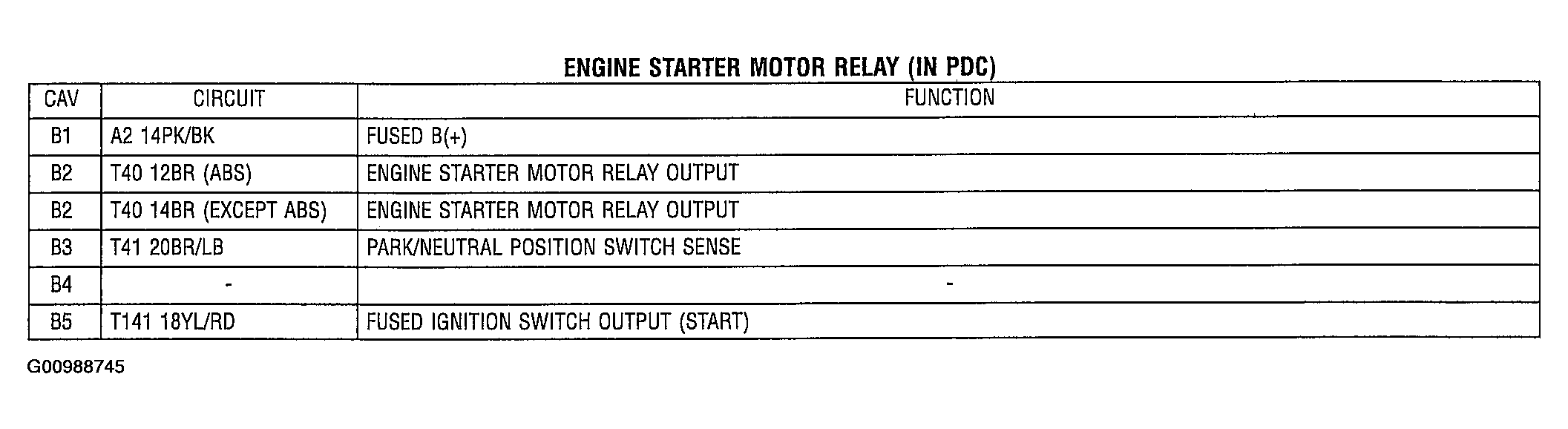

Fig 1: Identifying Engine Starter Motor Relay (In PDC)
G00988745Courtesy of DAIMLERCHRYSLER CORP.
