Engine Firing Order - 4.0L 6-Cylinder Engine

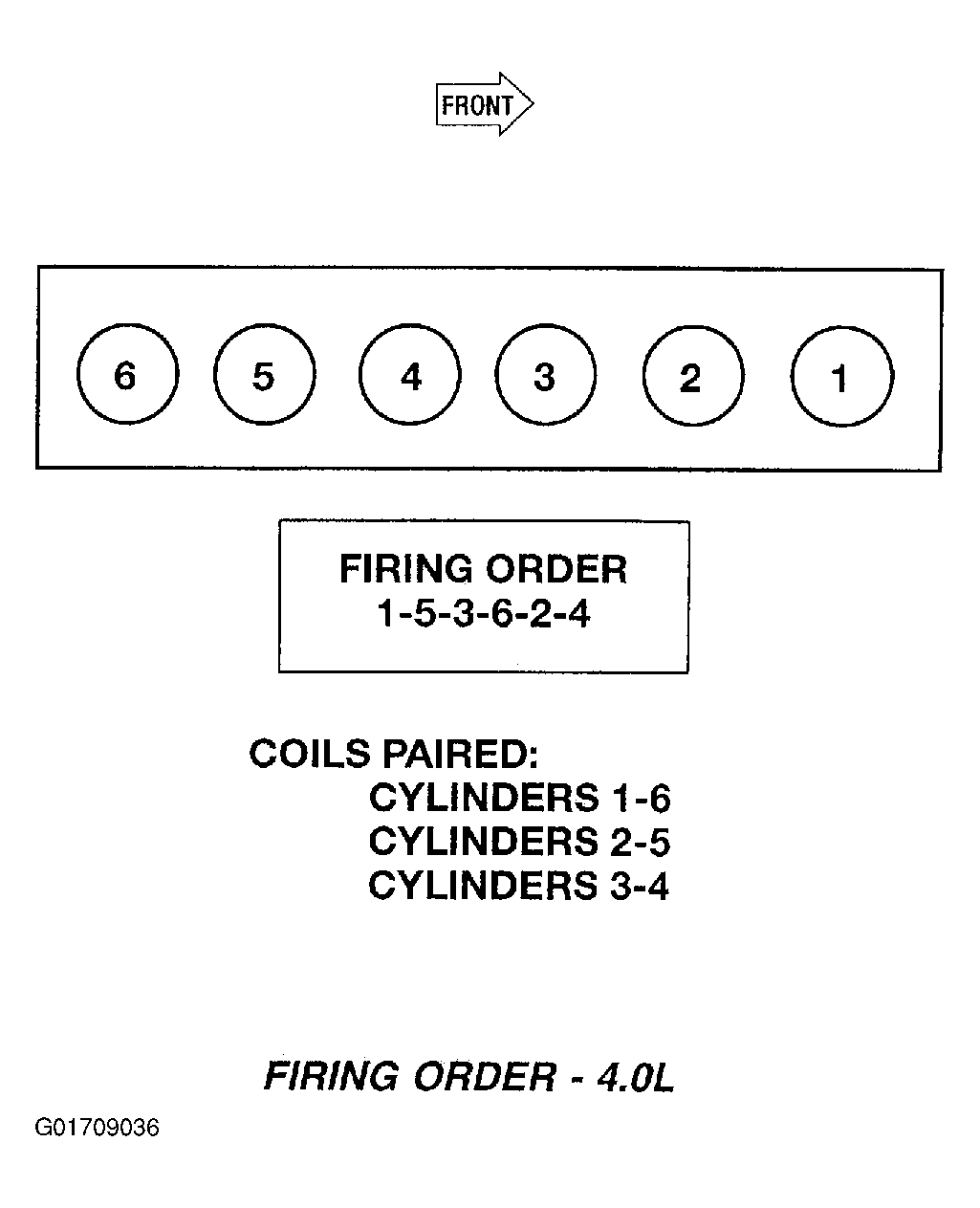

Fig 1: Identifying 4.0L Firing Order
G01709036Courtesy of DAIMLERCHRYSLER CORP.
