DTC P0551: Power Steering Switch Failure: Testing

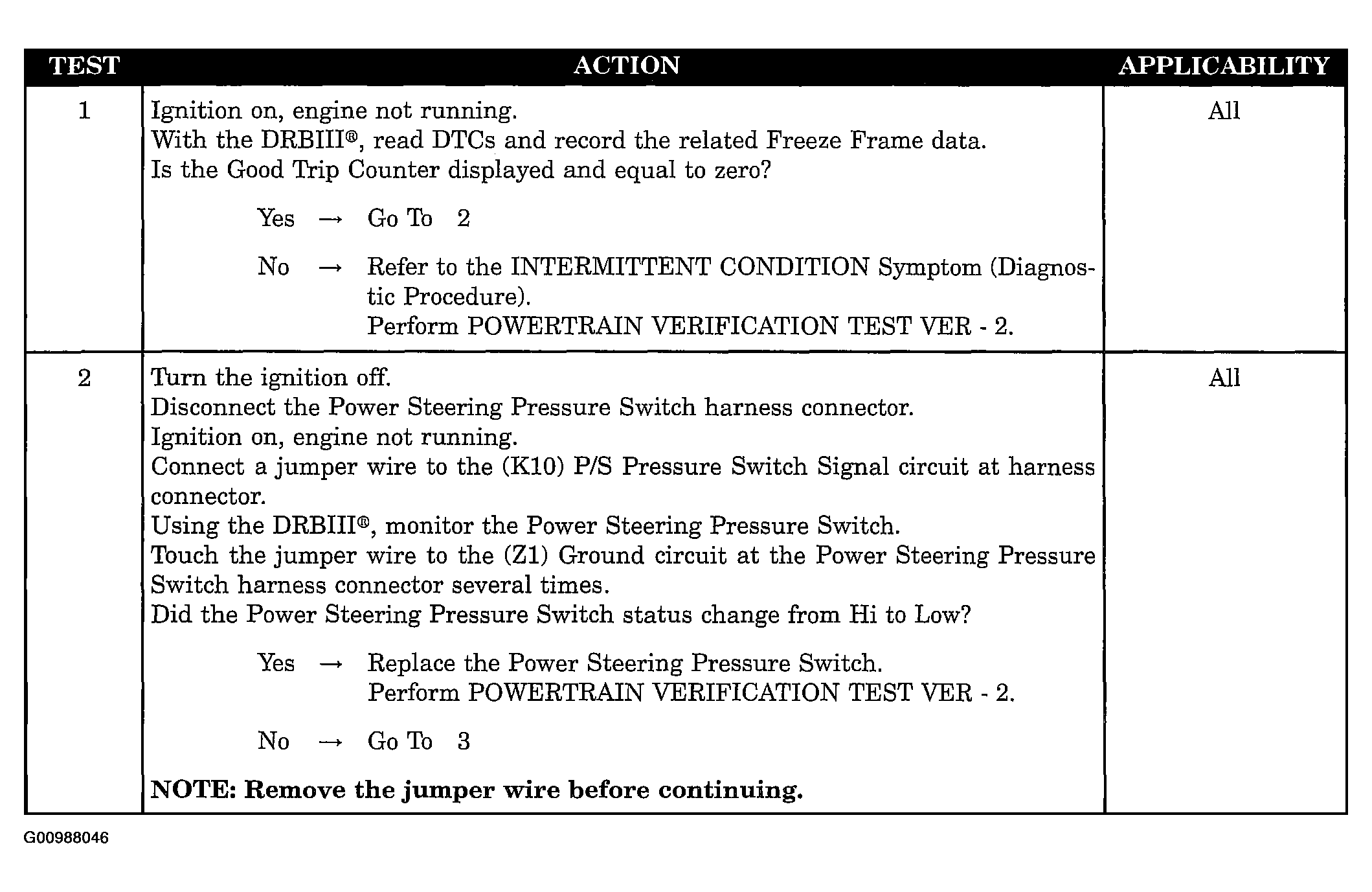

Fig 1: Testing: DTC P0551: Power Steering Switch Failure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

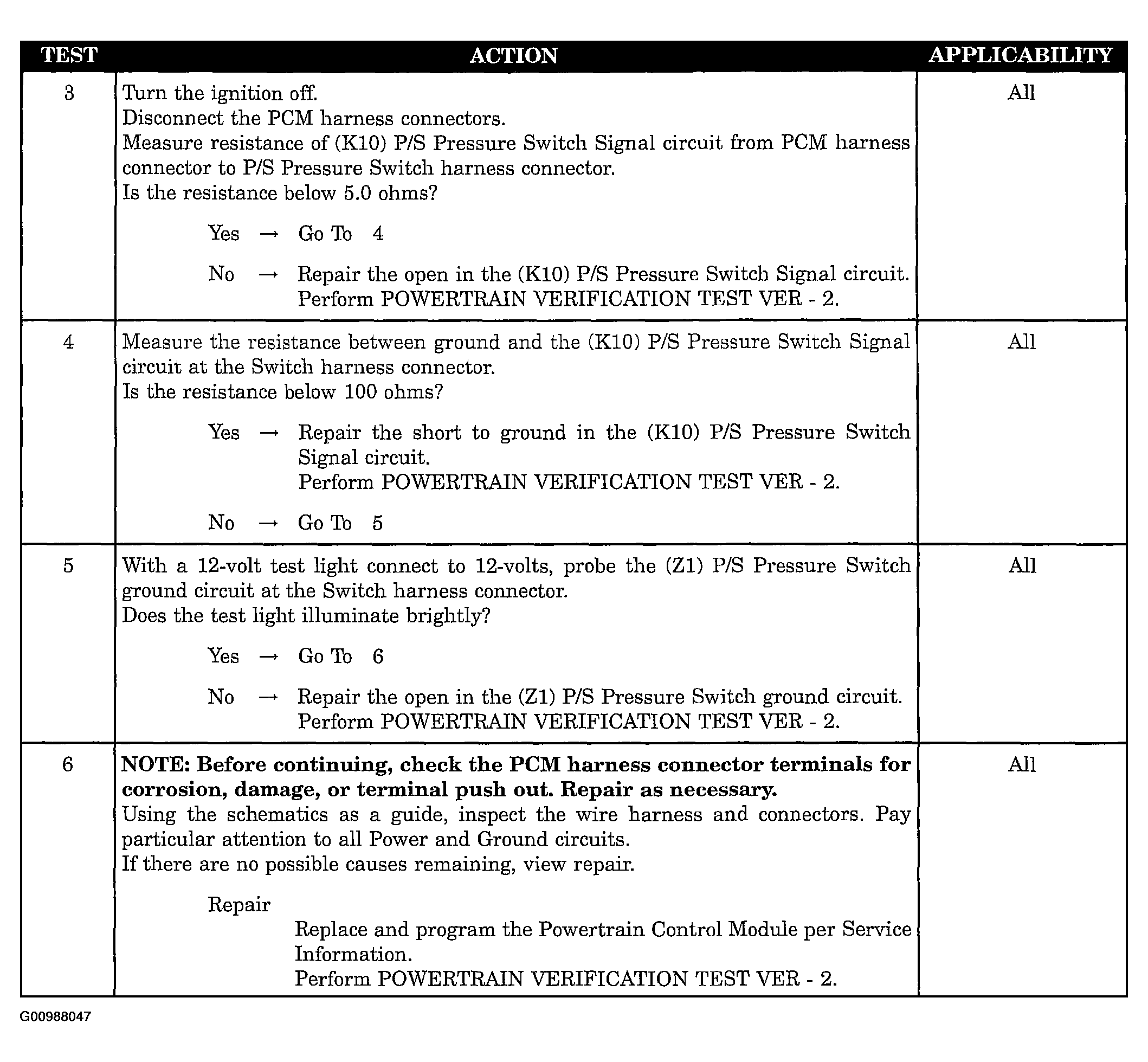

Fig 2: Testing: DTC P0551: Power Steering Switch Failure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
