*No Crank Condition: Testing

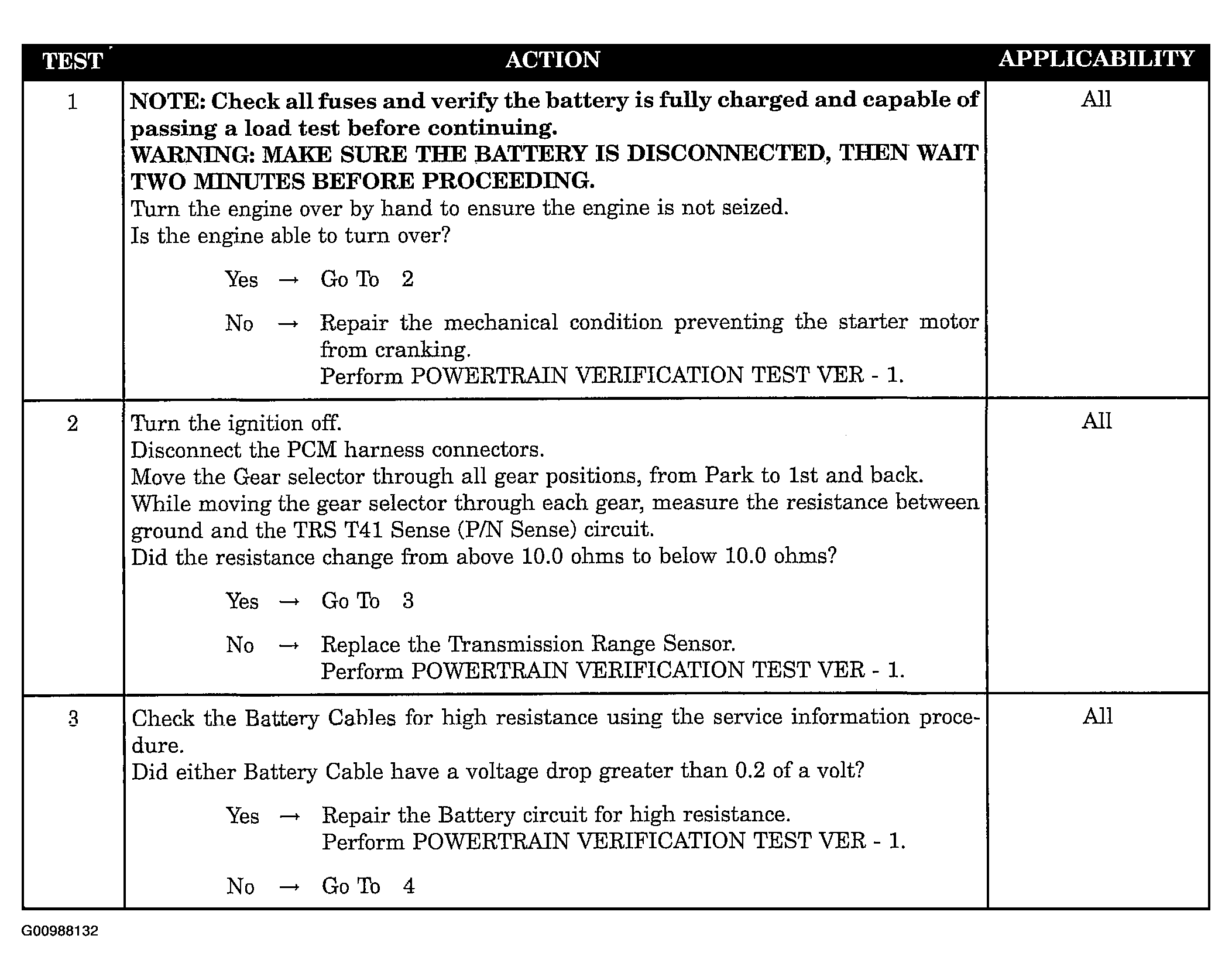

Fig 1: Testing: No Crank Condition (1 Of 3)

G00988132

Courtesy of DAIMLERCHRYSLER CORP.

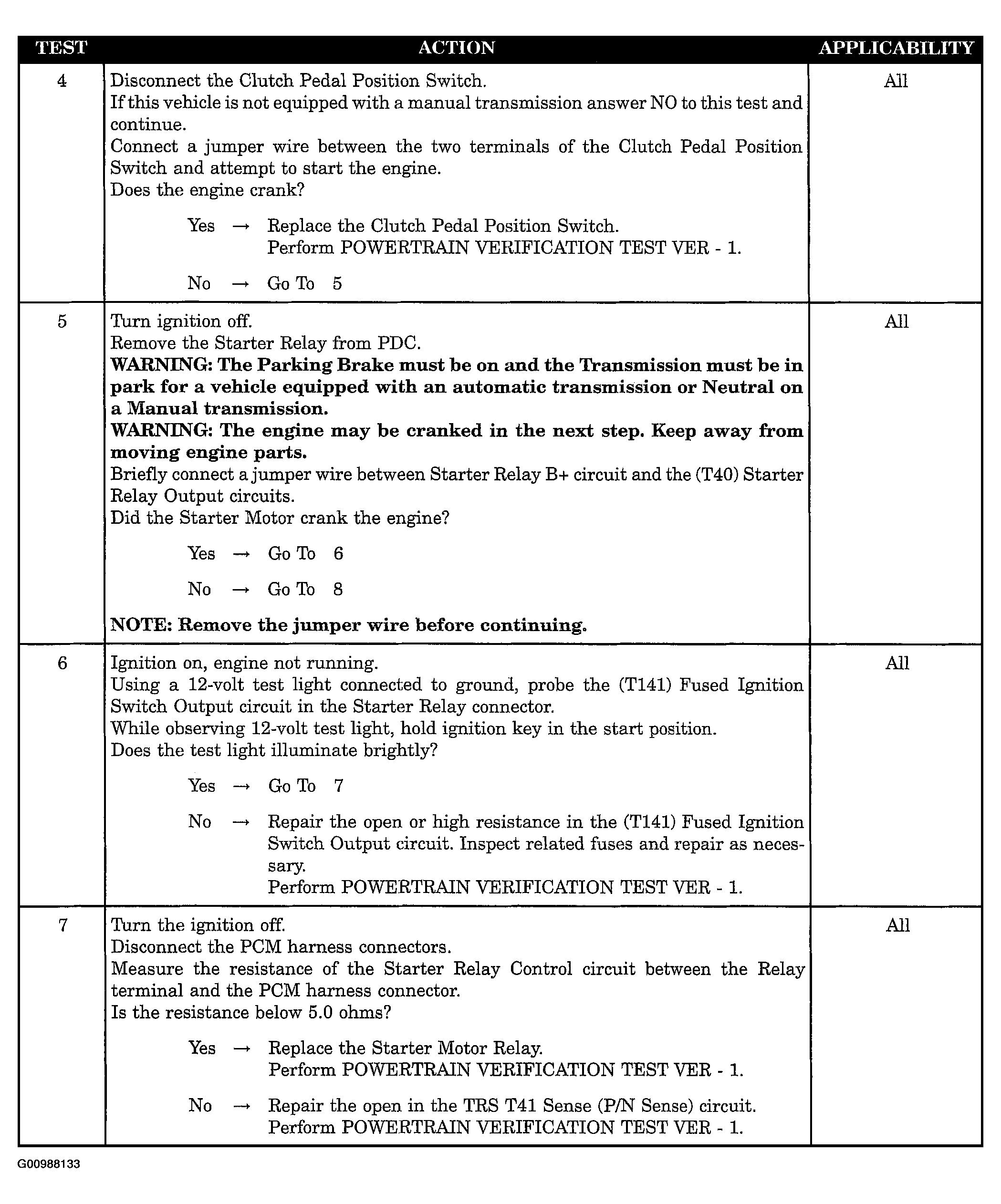

Fig 2: Testing: No Crank Condition (2 Of 3)

G00988133

Courtesy of DAIMLERCHRYSLER CORP.

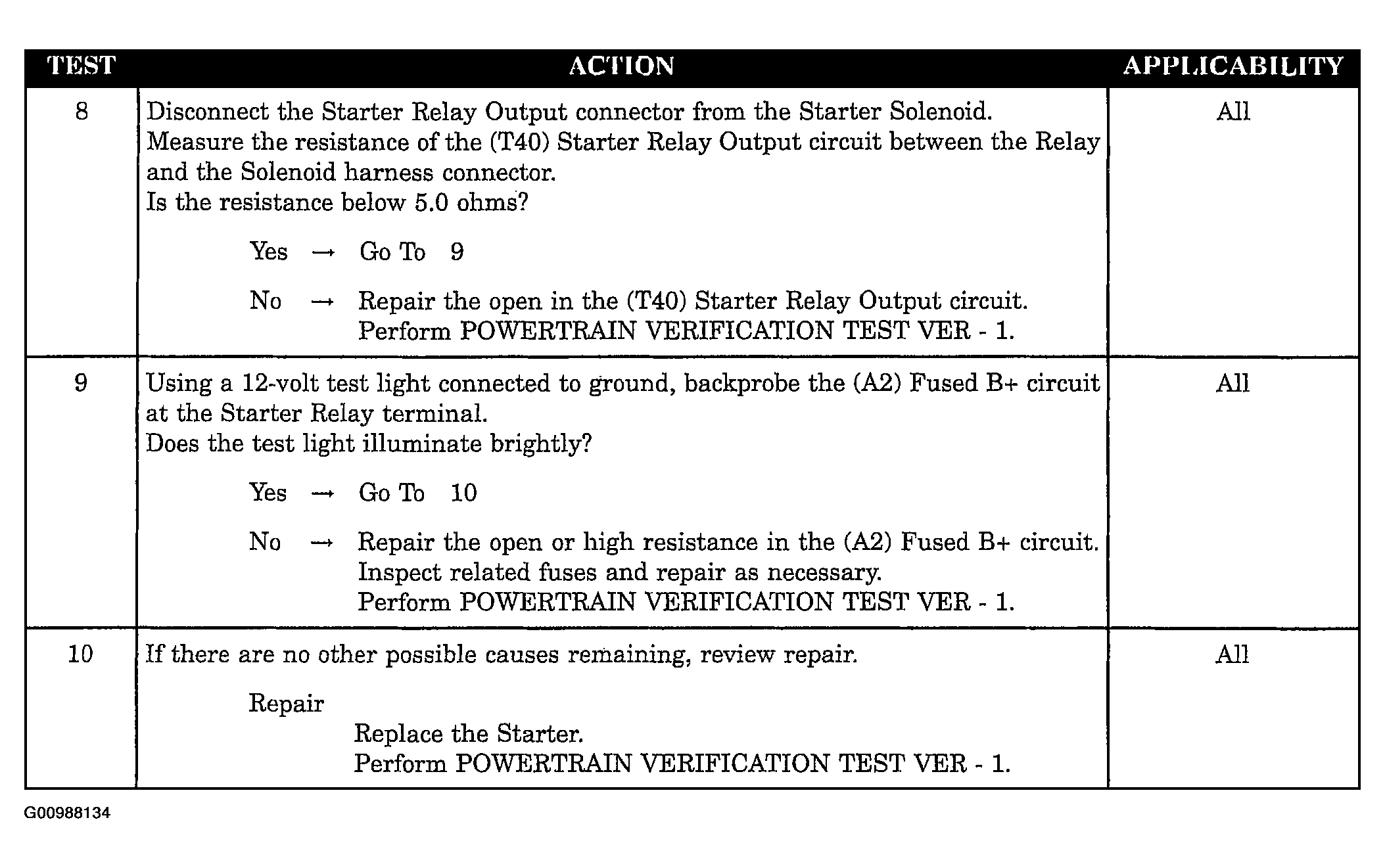

Fig 3: Testing: No Crank Condition (3 Of 3)

G00988134

Courtesy of DAIMLERCHRYSLER CORP.
