Data Link Connector Connector End View
Data Link Connector Connector End View

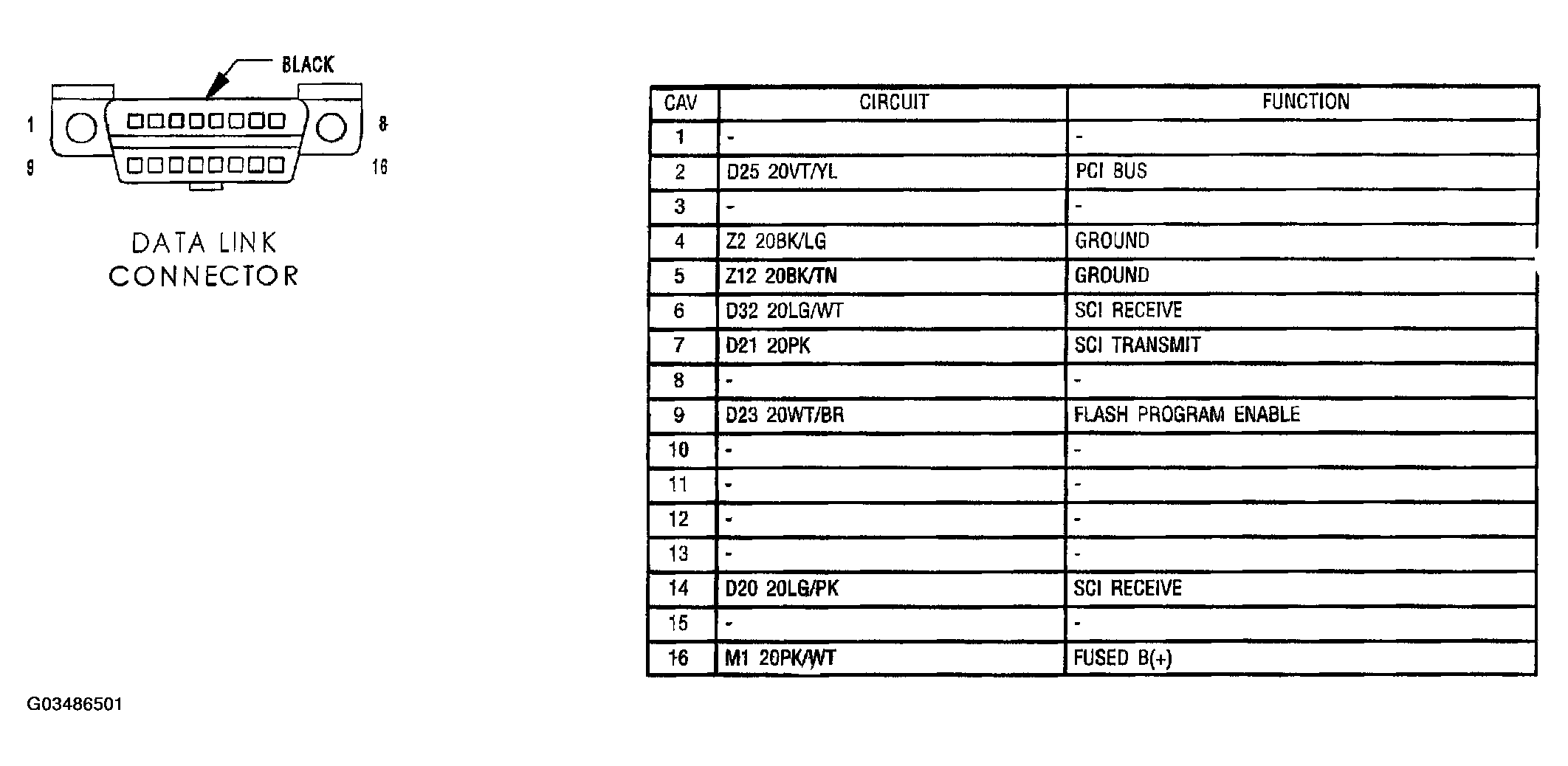

Fig 1: Data Link Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
