Connector C103 Connector End View

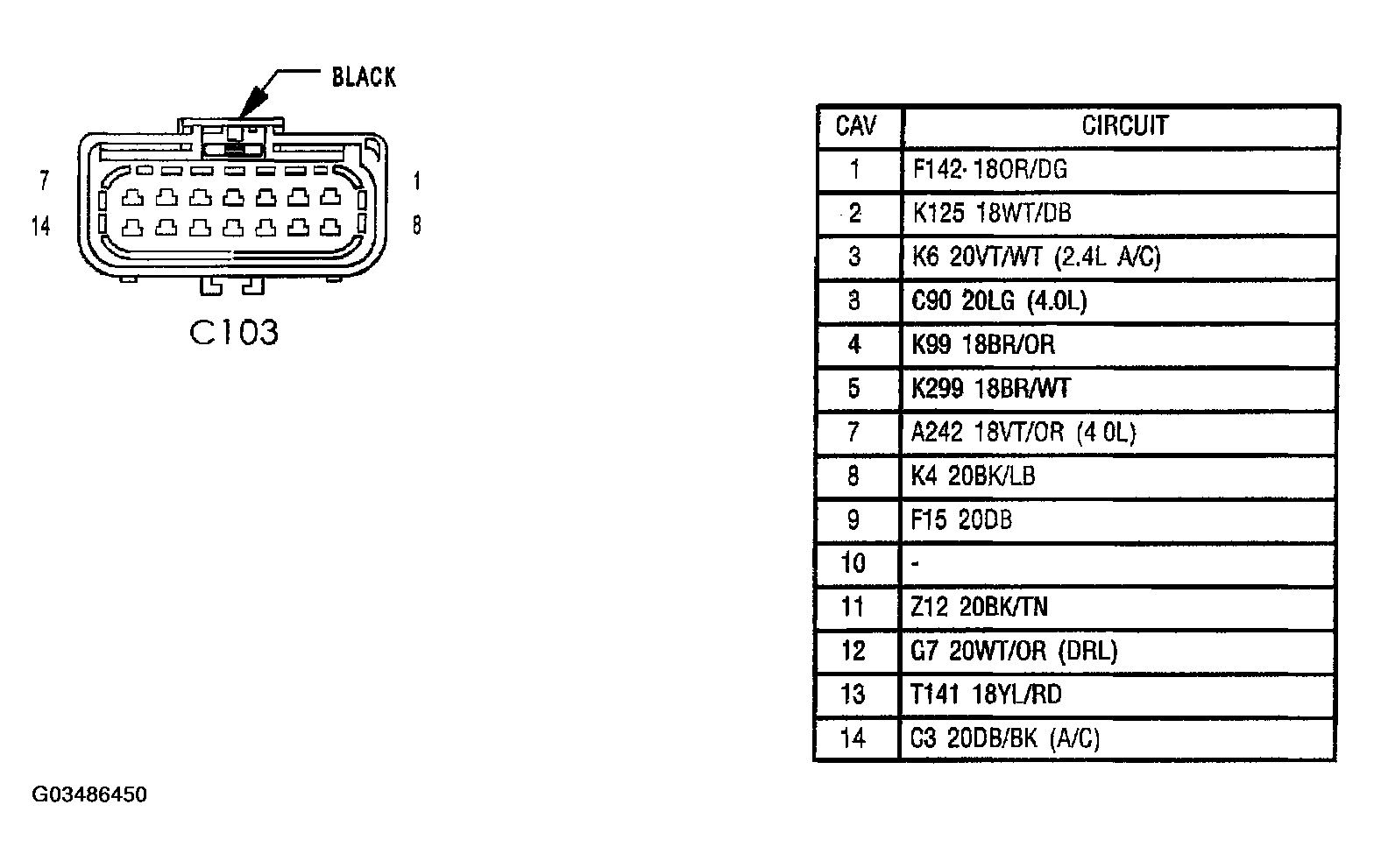

Fig 1: Dash Side Inline Connector End View (C103)
G03486450Courtesy of DAIMLERCHRYSLER CORP.

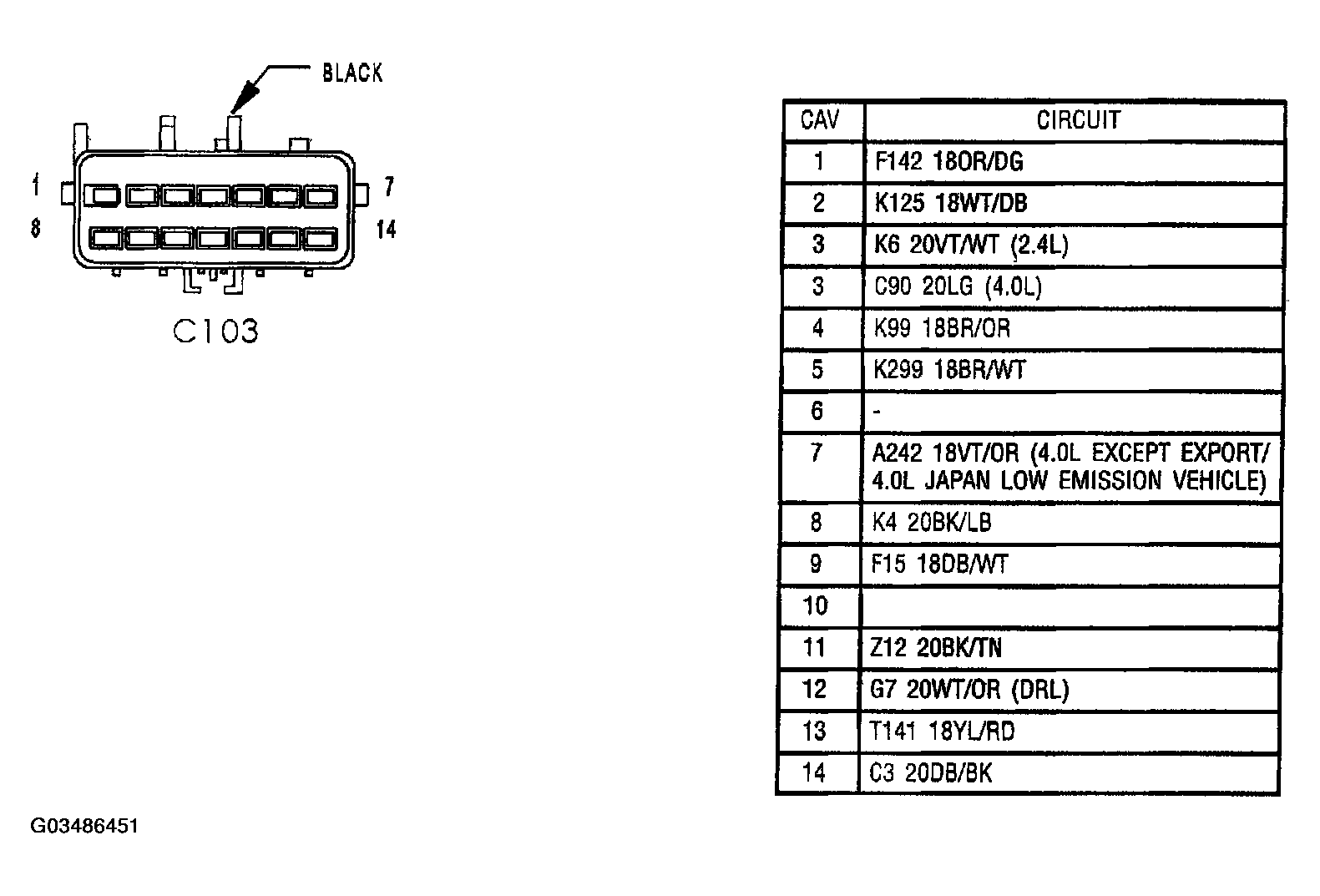

Fig 1: Engine Side Inline Connector End View (C103)
G03486451Courtesy of DAIMLERCHRYSLER CORP.
