Leak Detection Pump Connector End View
Leak Detection Pump Connector End View

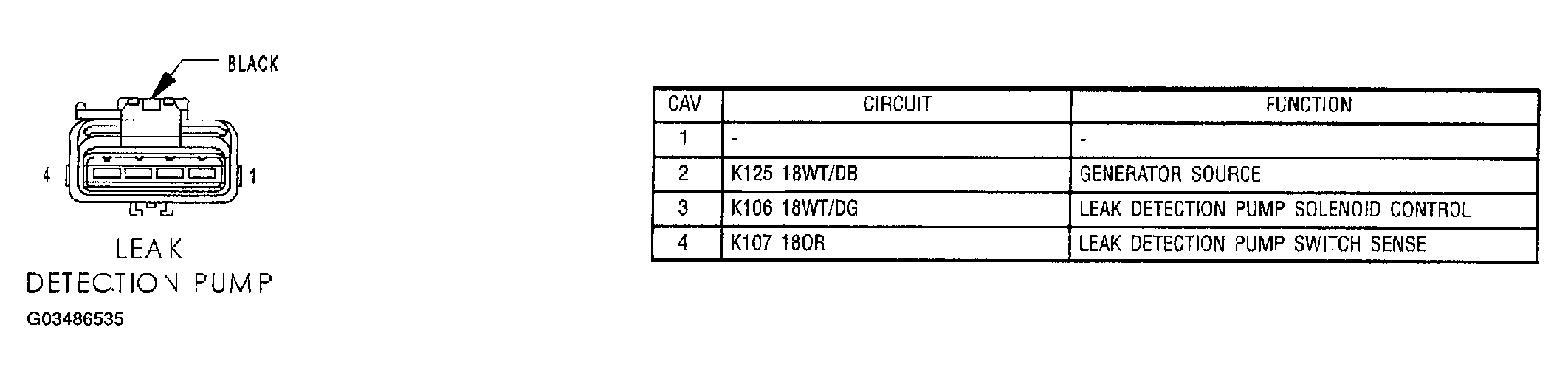

Fig 1: Leak Detection Pump Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
