*PCI Bus Communication Failure: Testing

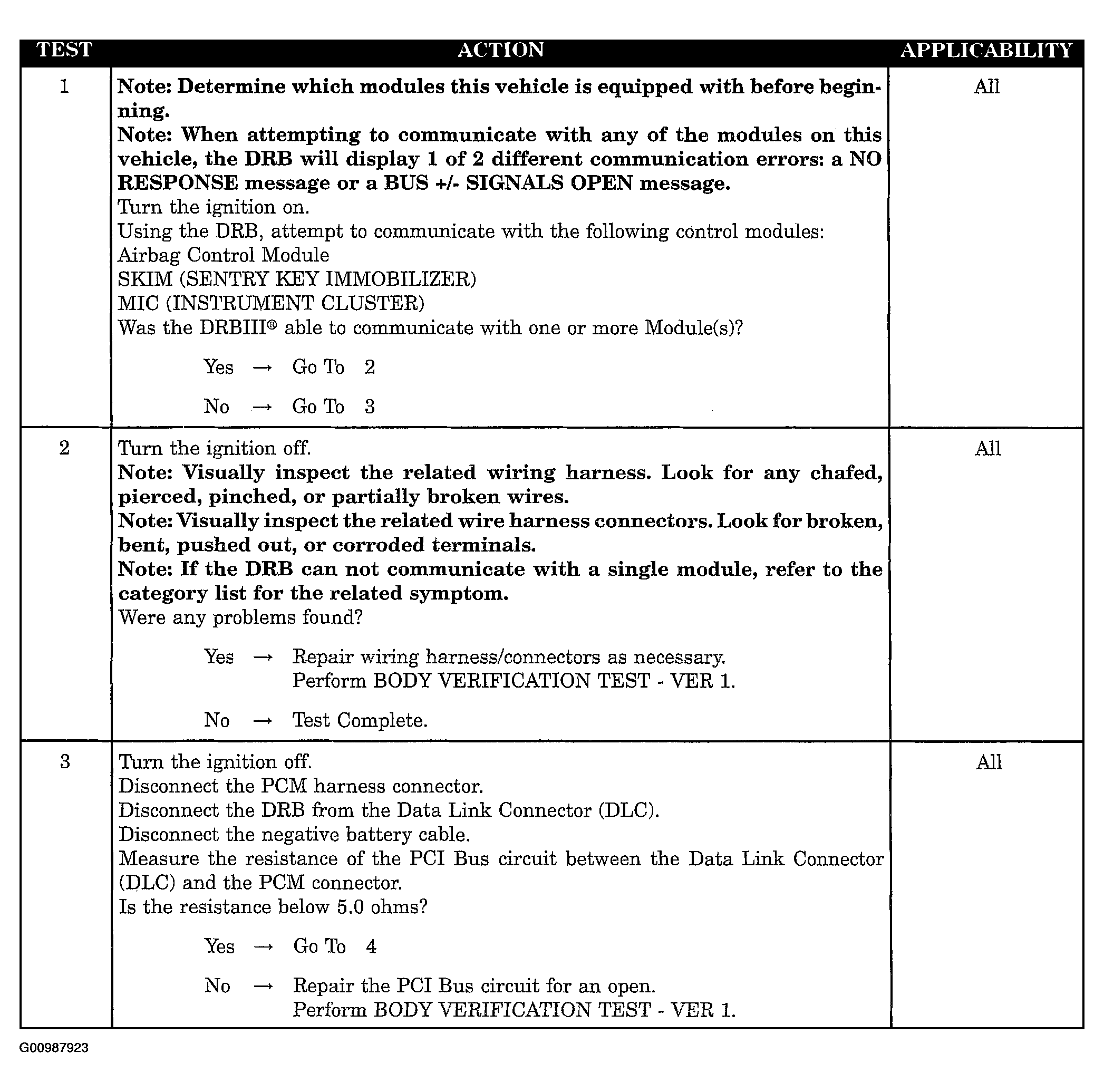

Fig 1: Testing: PCI BUS Communication Failure - 1 Of 2

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Testing: PCI BUS Communication Failure - 1 Of 2

Courtesy of DAIMLERCHRYSLER CORP.
