Automatic Shut Down Relay (In PDC)

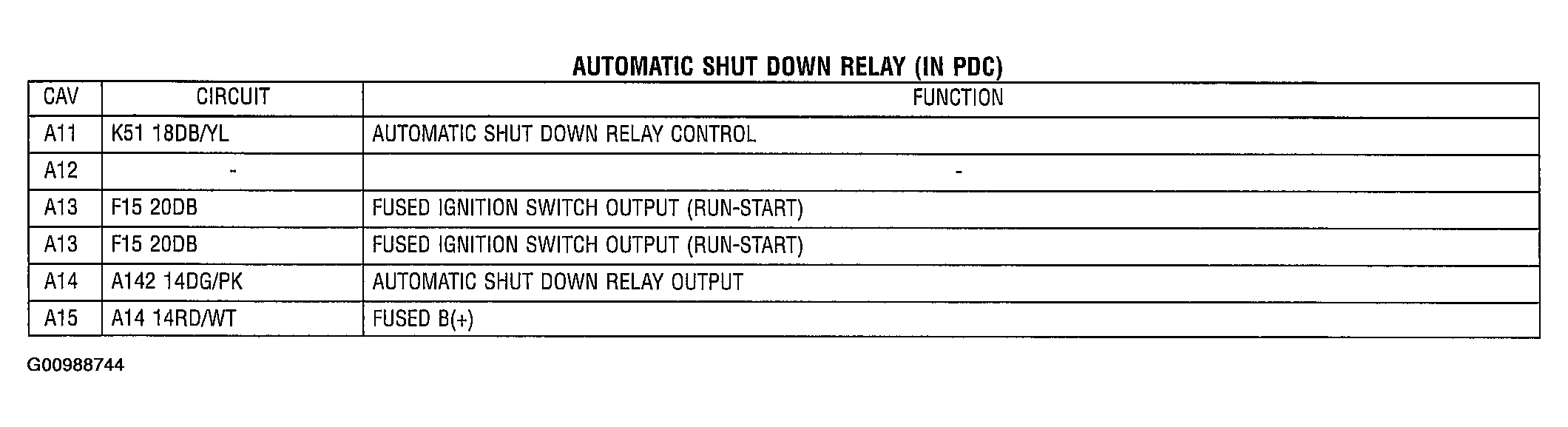

Fig 1: Identifying Automatic Shut Down Relay (In PDC)
G00988744Courtesy of DAIMLERCHRYSLER CORP.
