Wrangler X, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Fuel Pump Module - 4 Way
Fuel Pump Module - 4 Way

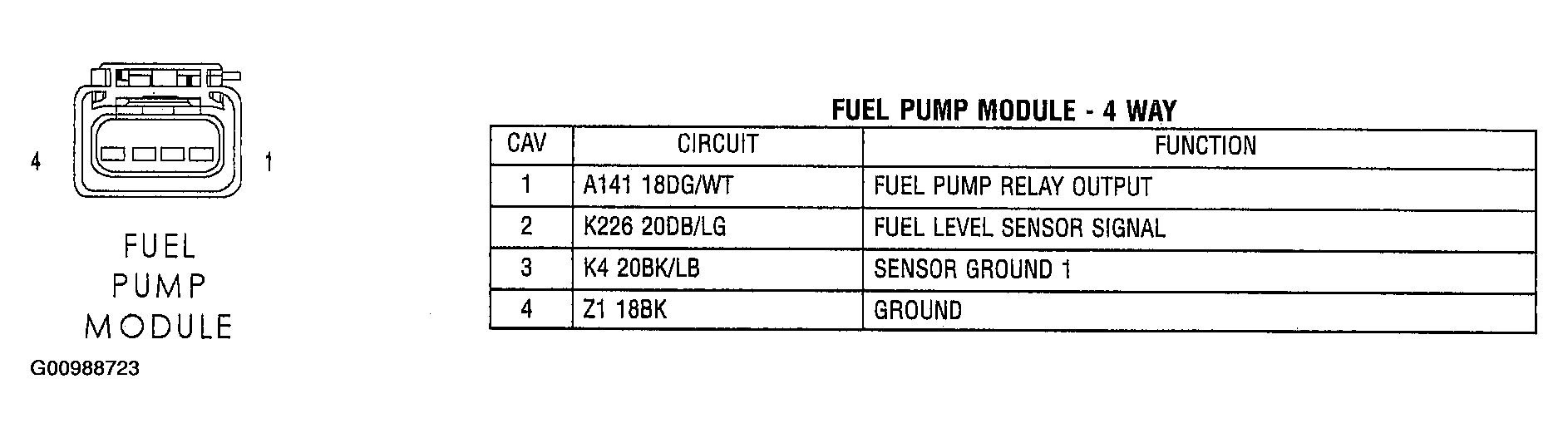

Fig 1: Identifying Fuel Pump Module - 4 Way (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Identifying Fuel Pump Module - 4 Way (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
