Fuel Pump Relay (In PDC)
Fuel Pump Relay (In PDC)

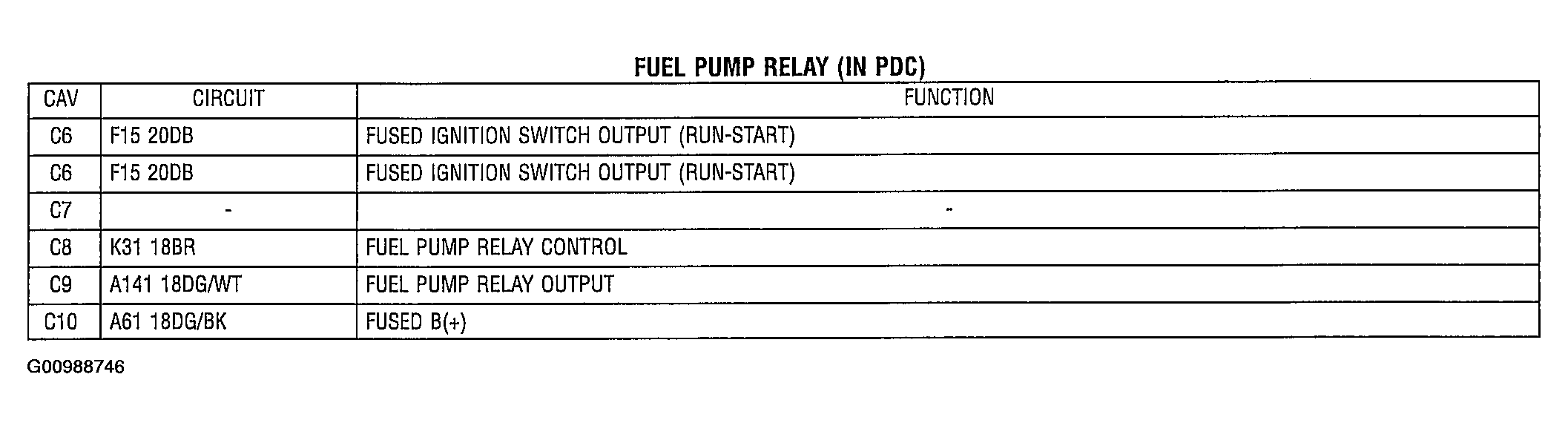

Fig 1: Identifying Fuel Pump Relay (In PDC)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
