Powertrain Control Module C3 - Gray 32 Way
Powertrain Control Module C3 - Gray 32 Way

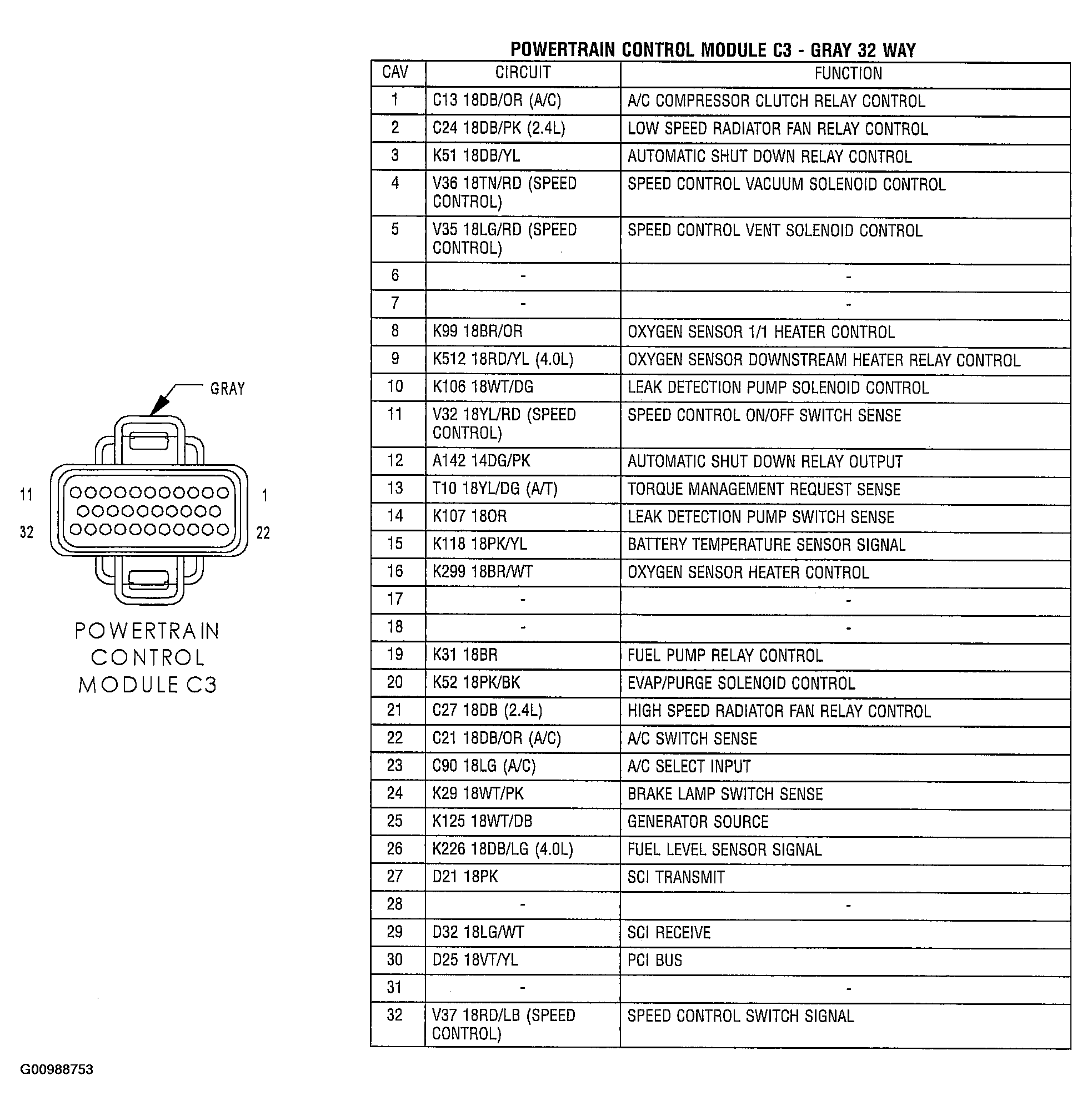

Fig 1: Identifying Powertrain Control Module C3 - Gray 32 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
