*Checking Fuel Delivery: Testing

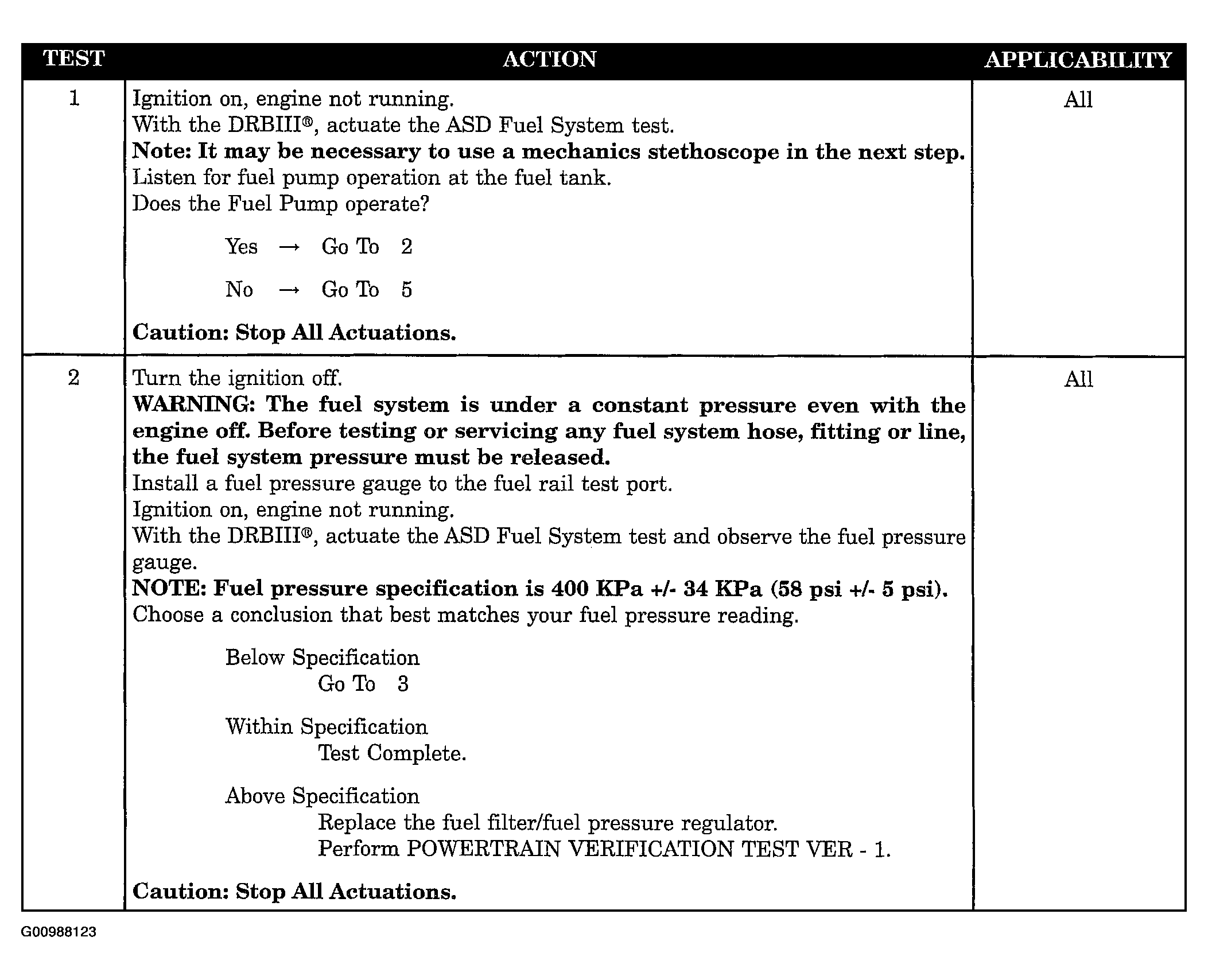

Fig 1: Testing: Checking Fuel Delivery (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

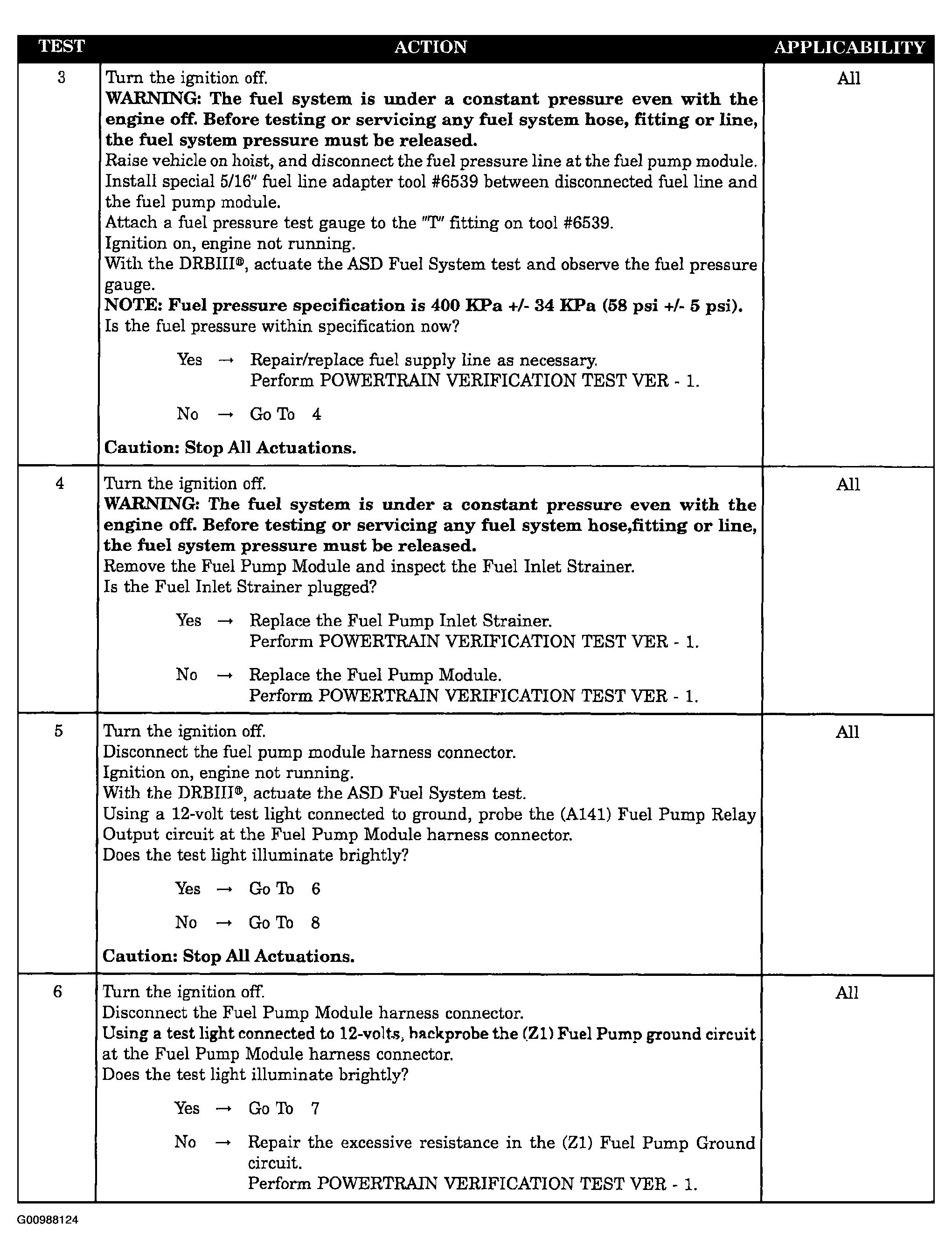

Fig 2: Testing: Checking Fuel Delivery (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

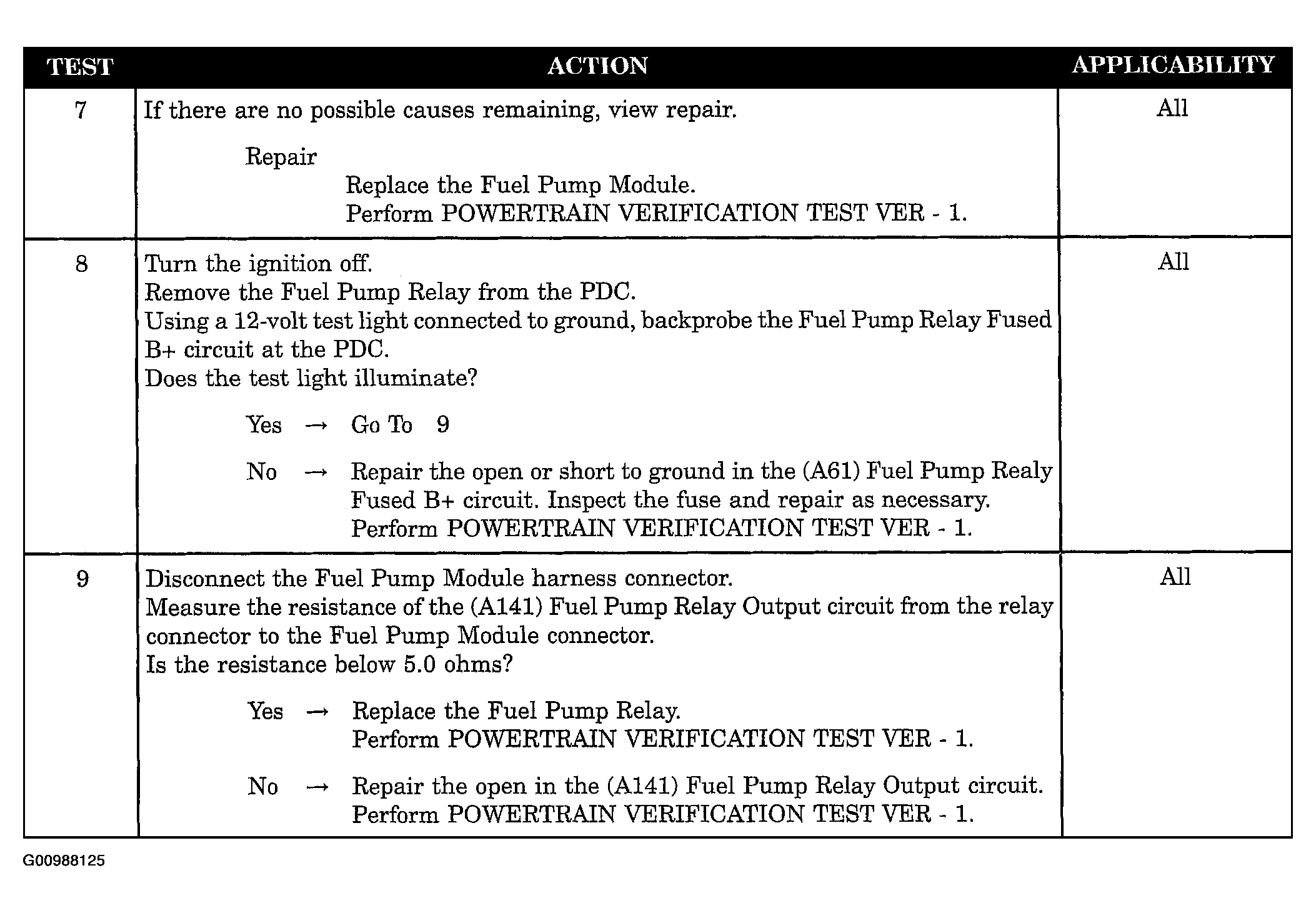

Fig 3: Testing: Checking Fuel Delivery (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
